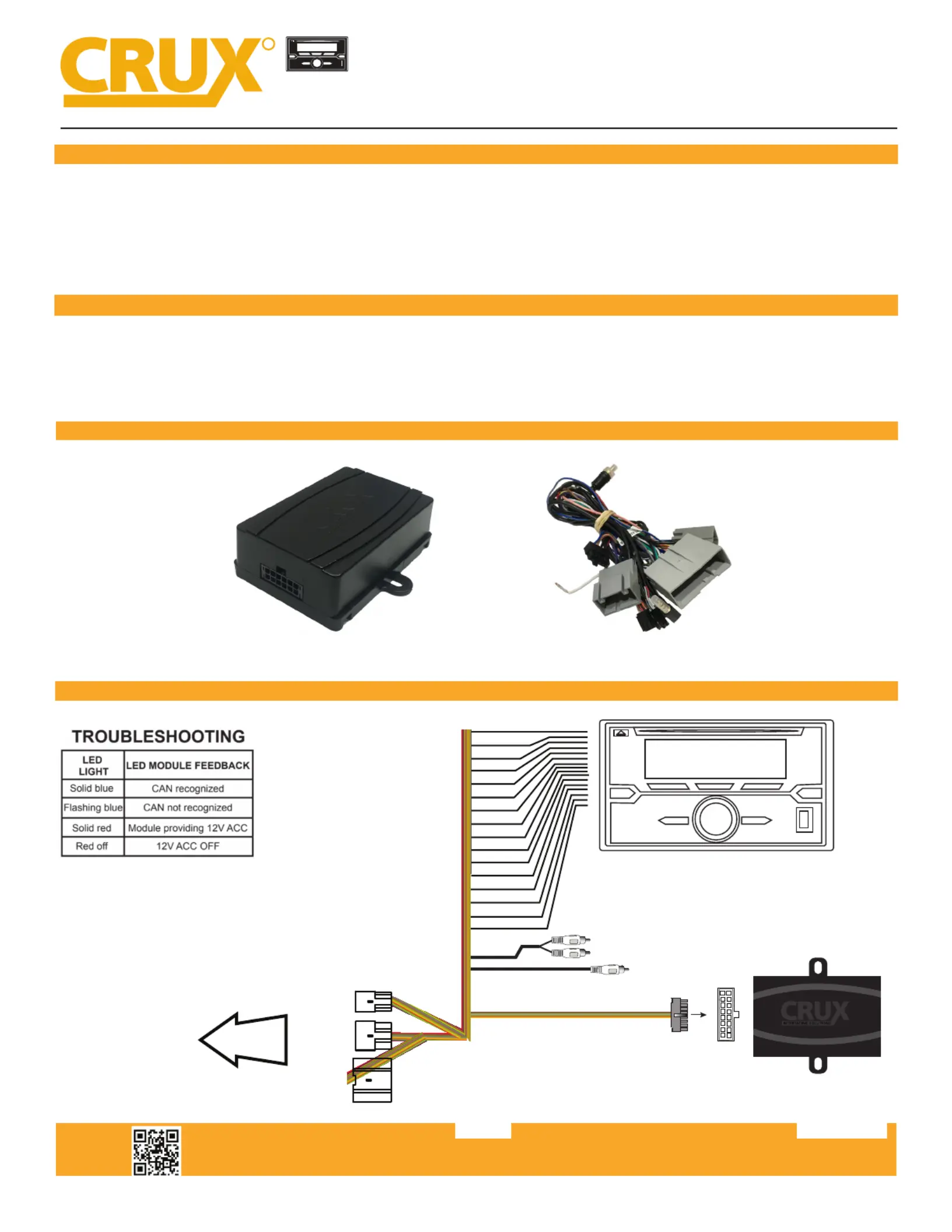

Seite 1/2
SOOFD-27
Radio Replacement Interface for
FORD, LINCOLN and MERCURY Vehicles
Crux Interfacing Solutions โ€ข 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 โ€ข fax: (818) 996-8188 โ€ข www.cruxinterfacing.com
rev.081222
1 of 2
- Retains factory features in select FORD, LINCOLN, and MERCURY vehicles while func๎žŸoning with an
a๎Œermarket radio.
- Retains factory Aux-Input and Subwoofer (if equipped).
- Retains RAP (Retained Accessory Power) feature.
- EIA color coded wiring for easy installa๎žŸon.
PRODUCT FEATURES:
PARTS INCLUDED:
SOOFD-27 Module SOOFD-27 Harness
NOTES:
INSTALLATION DIAGRAM:
- Does NOT retain Steering Wheel Controls.
- Does NOT retain Sync or factory Bluetooth.
- Not compa๎žŸble with factory installed SONY systems and THX systems with ampli๎œฎer.
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
๎˜ฏ๎ฏ๎ฏ๎žต๎ต๎๎ถ๎œ‚๎žŸ๎ฝ๎ถ ๎™‹๎žŒ๎œ‚๎ถ๎๎œž
๎™ž๎ž‰๎œž๎œž๎œš๎˜ƒ๎™ž๎๎๎ถ๎œ‚๎ฏ๎ฏ๎˜ƒ๎ฅพ๎™ณ๎™ž๎™ž๎ฅฟ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™ณ๎๎ฝ๎ฏ๎œž๎žš๎ฅฌ๎™ด๎š๎๎žš๎œž
๎˜„๎ต๎ž‰๎ฏ๎๎œฎ๎œž๎žŒ๎˜ƒ๎™ค๎žต๎žŒ๎ถ๎˜ƒ๎™‹๎ถ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜‘๎ฏ๎žต๎œž๎ฅฌ๎™ด๎š๎๎žš๎œž
Power Antenna Blue
๎™—๎œ‚๎žŒ๎ฌ๎๎ถ๎๎˜ƒ๎˜‘๎žŒ๎œ‚๎ฌ๎œž๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™บ๎œž๎ฏ๎ฏ๎ฝ๎Ÿ๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎™š๎œž๎Ÿ€๎œž๎žŒ๎ž๎œž๎˜ƒ๎™ค๎žŒ๎๎๎๎œž๎žŒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™š๎œž๎œš๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎™š๎๎๎š๎žš๎˜ƒ๎˜ฆ๎žŒ๎ฝ๎ถ๎žš๎˜ƒ๎ฅพ๎จฝ๎ฅฟ ๎˜ง๎žŒ๎œ‚๎Ÿ‡
๎™š๎๎๎š๎žš๎˜ƒ๎˜ฆ๎žŒ๎ฝ๎ถ๎žš๎˜ƒ๎ฅพ๎ฅฒ๎ฅฟ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ง๎žŒ๎œ‚๎Ÿ‡๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎˜พ๎œž๎Œ๎˜ƒ๎˜ฆ๎žŒ๎ฝ๎ถ๎žš๎˜ƒ๎ฅพ๎จฝ๎ฅฟ ๎™ด๎š๎๎žš๎œž
๎˜พ๎œž๎Œ๎˜ƒ๎˜ฆ๎žŒ๎ฝ๎ถ๎žš๎˜ƒ๎ฅพ๎ฅฒ๎ฅฟ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™ด๎š๎๎žš๎œž๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎™š๎๎๎š๎žš๎˜ƒ๎™š๎œž๎œ‚๎žŒ๎˜ƒ๎ฅพ๎จฝ๎ฅฟ ๎™ณ๎๎ฝ๎ฏ๎œž๎žš
๎™š๎๎๎š๎žš๎˜ƒ๎™š๎œž๎œ‚๎žŒ๎˜ƒ๎ฅพ๎ฅฒ๎ฅฟ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™ณ๎๎ฝ๎ฏ๎œž๎žš๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎˜พ๎œž๎Œ๎˜ƒ๎™š๎œž๎œ‚๎žŒ๎˜ƒ๎ฅพ๎จฝ๎ฅฟ ๎˜ง๎žŒ๎œž๎œž๎ถ
๎˜พ๎œž๎Œ๎˜ƒ๎™š๎œž๎œ‚๎žŒ๎˜ƒ๎ฅพ๎ฅฒ๎ฅฟ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ง๎žŒ๎œž๎œž๎ถ๎ฅฌ๎˜‘๎ฏ๎œ‚๎œ๎ฌ
๎˜„๎žต๎Ÿ†๎๎ฏ๎๎œ‚๎žŒ๎Ÿ‡๎˜ƒ๎˜ฏ๎ถ๎ž‰๎žต๎žš๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎˜ƒ๎™š๎œž๎œš๎ฅฌ๎™ด๎š๎๎žš๎œž๎˜ƒ๎™š๎˜’๎˜„๎ž
Subwoofer Input Black RCA
TO FACTORY
HARNESS
16-Pin Black
Connector
๎งด๎ฅฒ๎™—๎๎ถ
๎งญ๎งฒ๎ฅฒ๎™—๎๎ถ
๎งฎ๎งฐ๎ฅฒ๎™—๎๎ถ
RADIO REPLACEMENT
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions โ€ข 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 โ€ข fax: (818) 996-8188 โ€ข www.cruxinterfacing.com
rev.081222
2 of 2
INSTALLATION TIPS:
REAR SPEAKER AUDIO CUTS:
BROWN/WHITE
BROWN/WHITE
BROWN/BLUE
BROWN/BLUE
REAR R+
RR SPKR+
REAR-
RR SPKR-
BROWN/GREEN
BROWN/GREEN
BROWN/YELLOW
BROWN/YELLOW
32-PIN AUXILIARY AUDIO MODULE
REAR L+
LR SPKR+
LR SPKR-
REAR L-
VEHICLE APPLICATIONS:
FORD
2007-2010 Edge
2008-2012 Escape
2007-2012 Expedi๎žŸon
2006-2010 Explorer
2007-2010 Explorer Sport Trac
2009-2012 F-150
2008-2012 F-250
2008-2012 F-350
2005-2007 Five Hundred
2008-2011 Focus
2004-2007 Freestar
2006-2007 Freestyle
2006-2012 Fusion
2005-2012 Mustang
2008-2012 Taurus
LINCOLN
2009-2011 MKS
2007-2010 MKX
2007-2010 MKZ
2007-2012 Navigator
2006-2006 Zephyr
MERCURY
2007-2010 Mariner
2006-2010 Milan
2006-2010 Mountaineer
2008-2009 Sable
SOOFD-27
Radio Replacement Interface for
FORD, LINCOLN and MERCURY Vehicles
RADIO REPLACEMENT
R
INTERFACING SOLUTIONS
For vehicles with Rear Seat Entertainment, you may encounter the audio cu๎žซng out through the rear speakers.
To correct this issue, you will need to jump wires from the 32-pin input harness of the RSE connector to the
output wires going to the speakers. Follow the diagram below.
RAP Feature:
Test the vehicleโ€™s RAP (Retained Accessory Power) system, close all the doors and turn the key to the โ€œOFFโ€
posi๎žŸon, access to the radio should stay on. Open the driverโ€™s door to cancel the RAP system, and turn o๎œซ the
ACC Power.
