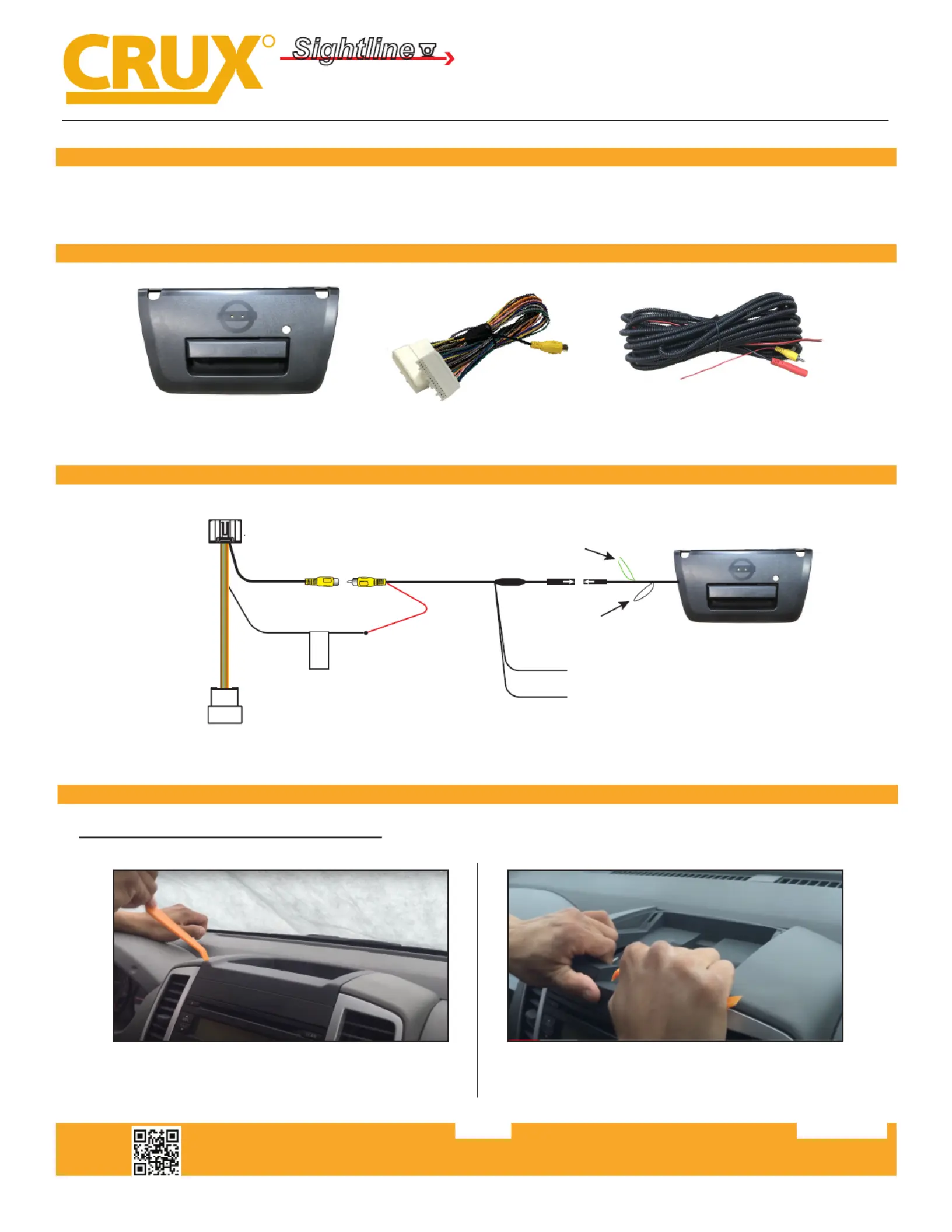

R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74F
Rear View Camera Integration with Tailgate Handle
Camera for Nissan Frontier with 4.3” Screen
1 of 3
PRODUCT FEATURES:
PARTS INCLUDED:
- Allows the integraon of an aermarket backup camera to the factory radio.
- Plug and play wiring for easy installaîžźon.
Froner Tailgate Handle Camera RVCNS-74F T-Harness 26’ Extension Cable
INSTALLATION DIAGRAM:
32 Pin
(Female)
32 Pin
(Male)
To Radio
To Vehicle
Harness
GREEN Wire
Parking Guide Lines
(cut to remove parking lines)
+12V Red
(tap to +12V Backup Light wire)
Ground - Black
(tap to Backup Light ground wire)
WHITE Wire
(not used, leave connected)
Reverse
Gear
1. Remove the dash panel above the radio using a pry
tool.
2. Carefully pull out the radio trim bezel.
INSTALLATION INSTRUCTIONS:
RVCNS-74F Installaîžźon at the Radio:
3. Use the pry tool to pull put the corners of the radio
trim bezel.
4. Unplug the factory radio connector and plug it into
the RVCNS-74F t-harness.
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74F
Rear View Camera Integration with Tailgate Handle
Camera for Nissan Frontier with 4.3” Screen
2 of 3
1. Remove the screws holding
the tailgate liner.
2. Use a pry tool and pull out 2
plasîžźc rivets on both sides of the
tailgate.
3. Remove the tailgate liner.
4. Remove the cover plate under
the tailgate liner.
5. Use a screwdriver to remove
the rod retaining clips.
6. Remove the two 10mm nuts
securing the tailgate handle.
Tailgate Handle Camera Installaîžźon:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74F
Rear View Camera Integration with Tailgate Handle
Camera for Nissan Frontier with 4.3” Screen
3 of 3
7. Remove the factory tailgate
handle assembly. Carefully
remove the emblem.
8. Install the new tailgate handle
camera and run the cable
towards the radio. Apply glue for
the emblem.
9. The emblem only goes one
way. Press on it rmly and let the
glue set.
10. Tap the Red wire on the
extension cable to +12V on the
reverse light. Tap the black wire
to ground. See diagram on page 1.
11. Tap the Red wire on the Yellow
RCA connector to the wire on
the T-harness labeled “Reverse
Gear”. See diagram on page 1.
12. Plug the male RCA from the
extension cable to the femal RCA
on the RVCNS-74F t-harness.
13. Test the camera for funcîžźonality before re-installing the radio.
VEHICLE APPLICATIONS:
NISSAN
2013-2016 Froner (with 4.3” screen)
NOTE: Not compaîžźble in vehicles with Navigaîžźon system.
