- No Dealer programming required.
- Activates the Rear-View Camera function of the Comand NTG4, NTG4-212 or NTG4.5 radios.
- Compatible with Mercedes Benz Comand NTG4, NTG4- and NTG4.5 systems. 212
- Not compatible with Audio 20 systems (single CD radio).
- Compatible with NTSC cameras only.
In the event this unit is to be returned for any reason, the customer must the “decode
radio before doing so to receive a replacement or refund. See instructions on page 2 on
how to decode the radio.

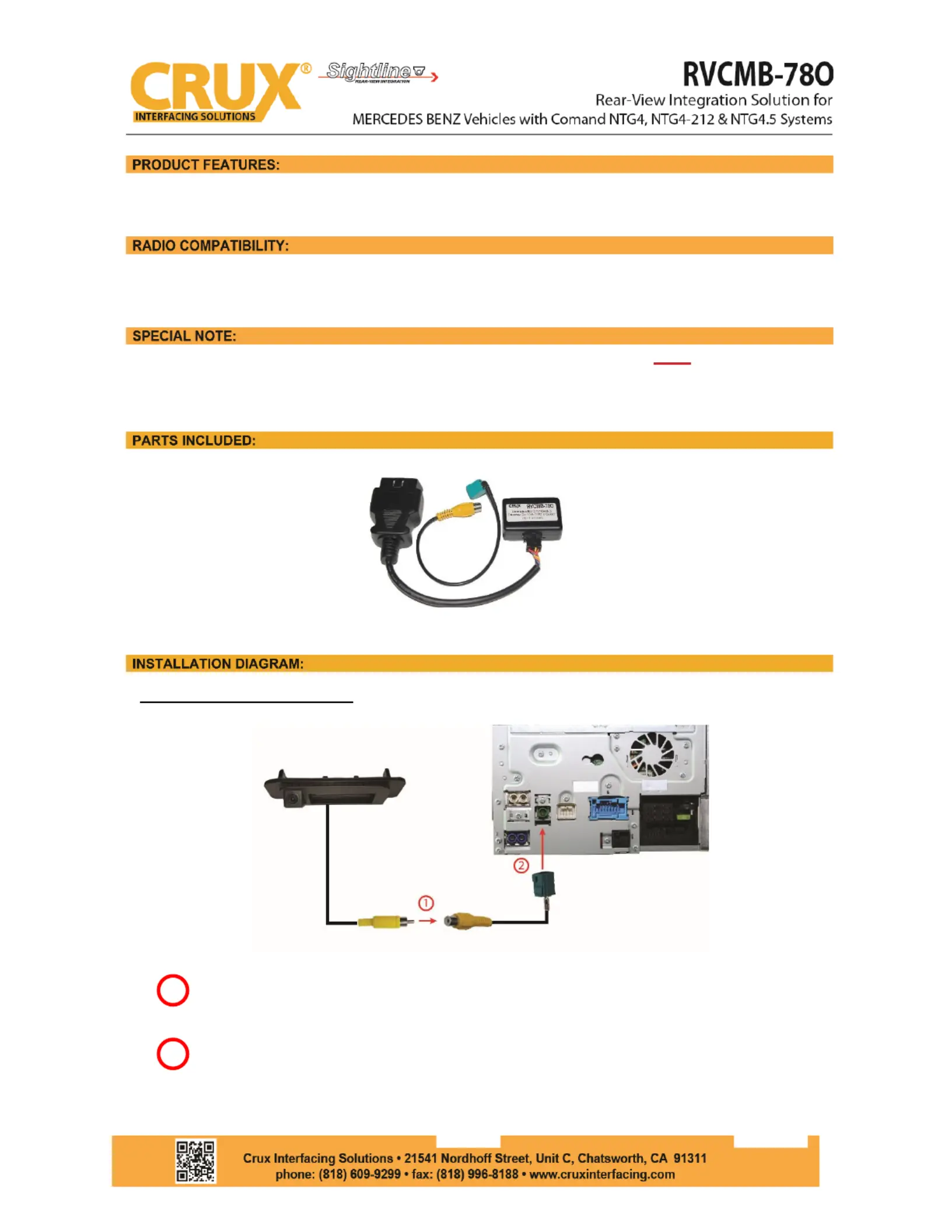

RVCMB-78O Kit
For Comand NTG4 Installation
Connect the video RCA of the after-market rear-view camera to the female RCA
connector of the RVCMB-78O video cable.
Connect the Fakra plug of the RVCMB-78O video cable on the green Fakra socket of the
COMAND NTG4 unit.
1
2
1 /3
rev.121819
For Comand NTG4-212 and NTG4.5 Installation
Connect the video RCA of the after-market rear-view camera to the female RCA connector
of the RVCMB-78O video cable.
Connect the Fakra plug of the RVCMB-78O video cable on the right green Fakra socket of
the COMAND NTG4.5 unit.
Coding the OBD II
1. Locate OBD-port and remove cover.
2. Turn on ignition ACC. to
3. Wait until the headunit has completely booted.
4. Plug the RVCMB-78O into OBD port.
5. Leave the RVCMB-78O for about 30 seconds or until you see a solid Green LED.
6. Remove the RVCMB-78O from the OBD port.
To decode the radio, repeat steps 1-6.
Note: After the first use on a vehicle, the RVCMB-78O is personalized to this vehicle (head-unit)
and can be used unlimited times to code or reverse coding ONLY on this vehicle.
LED Information:
LED
Status
Description
Green
Solid
Coding procedure successfully completed
Flashing
Coding process in progress
Red
Solid
Remove coding procedure successfully completed
Flashing
Coding process failed / license violation
Green + Red
Solid
CAN Communication Error! - Abort coding session
1
2
2 / 3
rev.121819
MERCEDES BENZ
with Comand NTG4
03/2007 02/2011 C-Class (W204)
09/2008 Up CLC-Class (CL203)
09/2008 Up GLK-Class (X204)
03/2010 Up SLS (C197)
with Comand NTG4-212
04/2009 05/2011 E-Class (W212)
05/2009 05/2011 E-Class Coupe (W207)
01/2011 05/2011 CLS-Coupe (C218)
3 / 3
