RVCGM-80M
Front & Rear Camera Integration Interface for
Select CHEVROLET and BUICK Vehicles with 7” MyLink Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1221221 of 4
- Adds front and rear camera inputs.
- Front camera automacally shows on the screen aer changing the gear from reverse to drive.
- Programmable front camera delay OFF îžźme using the OSD menu.
PRODUCT FEATURES:

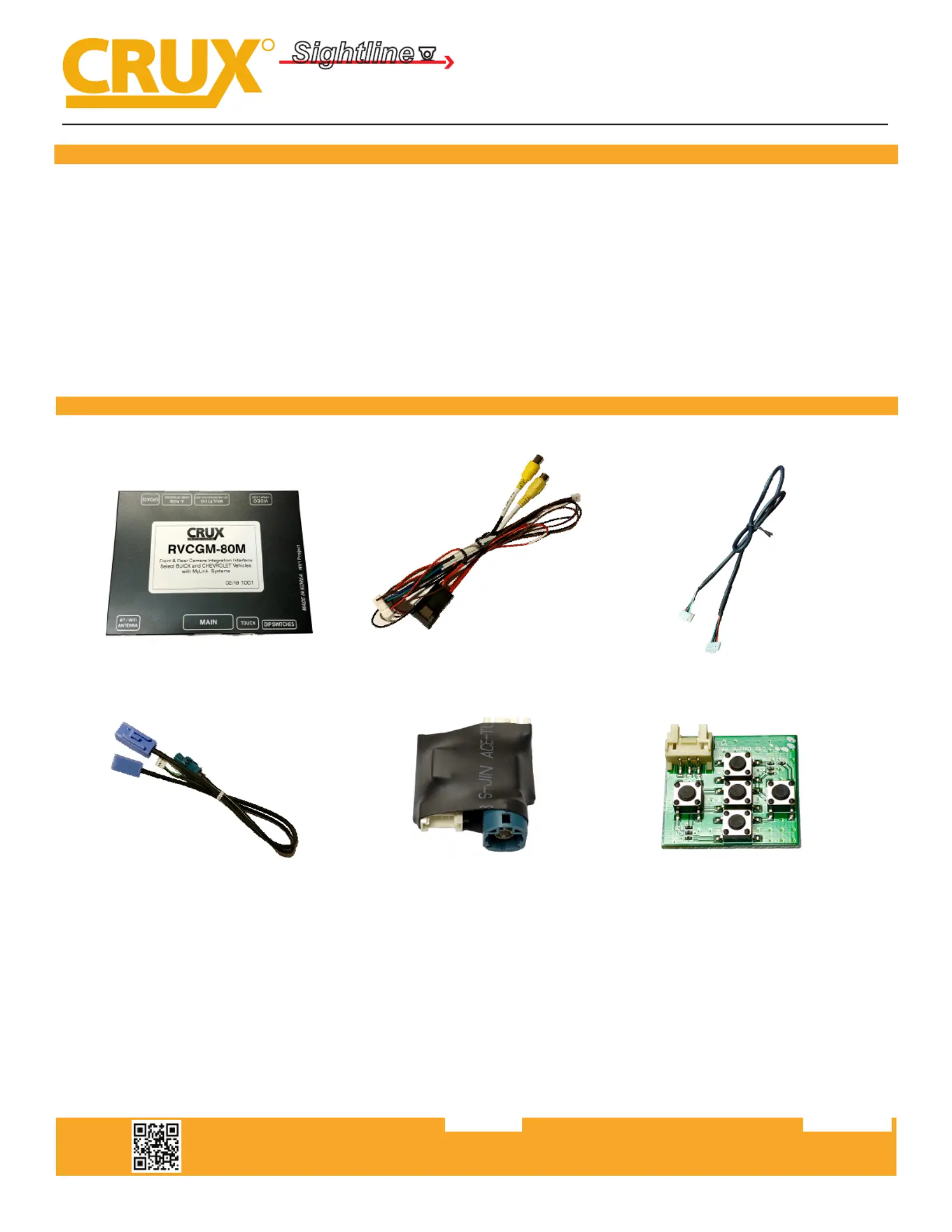

PARTS INCLUDED:
RVCGM-80M Module RVCGM-80M T-Harness LVDS Cable
GVIF Video Cables LVDS Video Extension Board OSD Control Pad
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1221222 of 4
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OEM Monitor
OEM GVIF
Cable
OEM Headunit
GVIF Video Cables
Front Camera Input
Rear Camera Input
To OSD Control Pad
Front/Rear Camera +12V Power
Ground
Green = Rear Camera Manual Trigger*
Blue = Front Camera Manual Trigger*
RVCGM-80M
MODULE
MAIN
*Use these wires if not using CAN Trigger.
Green wire = Connect to Reverse Light +12V
Blue wire = Connect to +12V using a toggle switch
^See Note below regarding wire color
VIDEO
LVDS Video
Extension Board
Red = +12V ACC
Black = Ground
White = CAN High^
Video Extension Cable
RVCGM-80M
CAN WIRE CONNECTION:
Front & Rear Camera Integration Interface for
Select CHEVROLET and BUICK Vehicles with 7” MyLink Systems
The RVCGM-80M detects the CAN communicaîžźons in the vehicle.
Tap the WHITE wire^ (Pin# 2) on the RVCGM-80M power harness to
the GREEN wire (PIN# 28) on the 44 pin OEM connector behind the
headunit. Reverse gear engagement is automaîžźcally detected and will
power on the rear camera. The front camera will power on when the
gear is put to Drive. The delay OFF of the front camera can be set in
the OSD menu. Time delay OFF can be set from 1 to 60 seconds.
If for some reason the CAN connecîžźon cannot detect the reverse gear
communicaîžźon, connect the GREEN wire on the RVCGM-80M power
harness (Rear Camera Manual Trigger) to the reverse light wire +12V.
Do not connect the WHITE wire to the GM CAN line.
The Front camera also be also be manually triggered by connecîžźng
the BLUE wire (Front Camera Manual Trigger) to +12V.
GREEN wire Single CAN wire PIN# 28
^NOTE: Older generaîžźon RVCGM-80M may have a diîś«erent
colored wire on PIN #2. See diagram on the right for the wire
locaîžźon on the 30 pin power harness connector. (Wire view)
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.1221223 of 4
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCGM-80M
DIP SWITCH SETTINGS:
OSD Control Pad
The OSD Seîž«ng Screen automaîžźcally pops up when the OSD Control Pad is connected.
ON SCREEN DISPLAY (OSD) SETTINGS:
Front & Rear Camera Integration Interface for
Select CHEVROLET and BUICK Vehicles with 7” MyLink Systems
Set all DIP switches to OFF (Up).
Use the OSD menu to make the necessary sengs. Remember to Run aer the sengs are made. Save&Reboot
Unplug the OSD Control Pad aer seng the cameras and keep it in a secure locaon in case it is needed to change
the seîž«ngs.
REAR CAMERA SETTING
