CRUX RVCGM-80F Bedienungsanleitung


Lesen Sie kostenlos die đź“– deutsche Bedienungsanleitung fĂĽr CRUX RVCGM-80F (8 Seiten) in der Kategorie Nicht kategorisiert. Dieser Bedienungsanleitung war fĂĽr 6 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Seite 1/8
RVCGM-80F
Front & Rear Camera Integration Interface for
Select 2016-2018 GM Vehicles with CUE, Intellilink, & MyLink Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.011420
1 of 8
- Adds front and rear aermarket camera inputs.
- Retains funcîžźonality of the OEM backup camera if present.
- Front camera automacally shows on the screen aer changing the gear from reverse to drive.
- Forced view funcon for front camera or aermarket backup camera.
PRODUCT FEATURES:

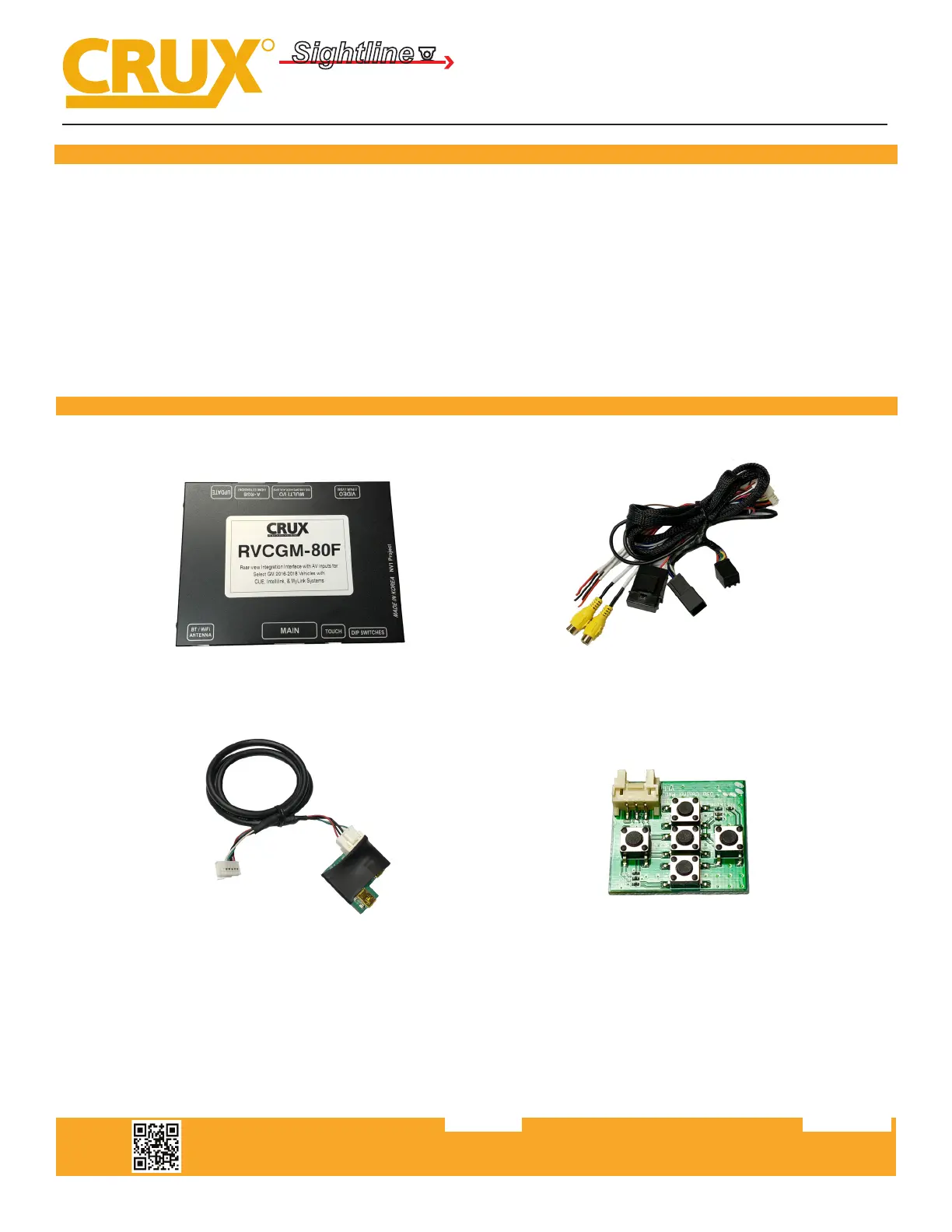

PARTS INCLUDED:
RVCGM-80F Module RVCGM-80F Power Harness
LVDS Adapter Cable OSD Control Pad
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0114202 of 8
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
MAIN
RVCGM-80F
Front & Rear Camera Integration Interface
for GM Vehicles with CUE, MyLink & Intellilink
IN TERF ACIN G SOL UT ION S
V IDEO
REAR CAMERA
FRONT CAMERA
Front Camera
12V Power & Ground
Rear Camera
12V Power & Ground
OSD
CONTROL
PAD
OSD Control Pad is used to
adjust the settings. Must be
unplugged and stored after.
LVDS
Adapter
Cable
To the LVDS Connector
behind the radio
From the LVDS Connector
behind the radio
To the 10-pin connector
behind the radio
From the 10-pin connector
behind the radio
Fuse
***See Special Note on page 5 regarding LVDS connections on RE models***
Front Camera
Manual Trigger for CUE
Yellow
RVCGM-80F
Front & Rear Camera Integration Interface for
Select 2016-2018 GM Vehicles with CUE, Intellilink, & MyLink Systems
DIP SWITCH SETTINGS:
DIP SETTING VEHICLE
1 to 8 ALL OFF Malibu and Volt
1ON Corveîž©e C7
2ON Escalade, CTS-V
3OFF None (leave OFF)
4ON Cruze (with 8” screen)
5ON Cadillac XT5
6ON Impala, Suburban, Tahoe, Yukon, Sierra, Acadia, Silverado, Yukon (with RSE)
7 ON Suburban (with RSE), Tahoe (with RSE)
1 & 5 ON Colorado
2 & 5 ON Escalade, CTS, CTS-V (with no OEM front camera)
Note: ON is down and OFF is up
RSE = Rear Seat Entertainment
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0114203 of 8
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCGM-80F
Front & Rear Camera Integration Interface for
Select 2016-2018 GM Vehicles with CUE, Intellilink, & MyLink Systems
Suburban, Tahoe, Yukon models with Rear Seat
Entertainment Systems have 2 LVDS cables on
the back of the radio.
Plug and play connecîžźons on most applicaîžźons. See wiring
diagram on page 2.
Suburban, Tahoe, Yukon with RSE wiring connecîžźons:
On RE models, the power harness is plugged in behind
the headunit but the LVDS cable is plugged in at the
HMI module (usually found behind the glove box).
Connecîžźon is made on the blue LVDS connector on
the HMI module.
