RVCCH-75R
Rear View with VIM Integration Interface and
Tailgate Handle Camera for RAM Trucks
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0922201 of 3
Acvates Mygig radio for enabling video features
Tailgate handle camera included
Interface includes Audio / Video Input to connect an extra A/V source
Automacally switches to Rear-view when car is in Reverse mode
Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera power
must be tapped from the +12V reverse light wire instead
Plug & Play Installaon
PRODUCT FEATURES:
PARTS INCLUDED:
RVCCH-75R Module RVCCH-75R Harness Tailgate Handle Camera

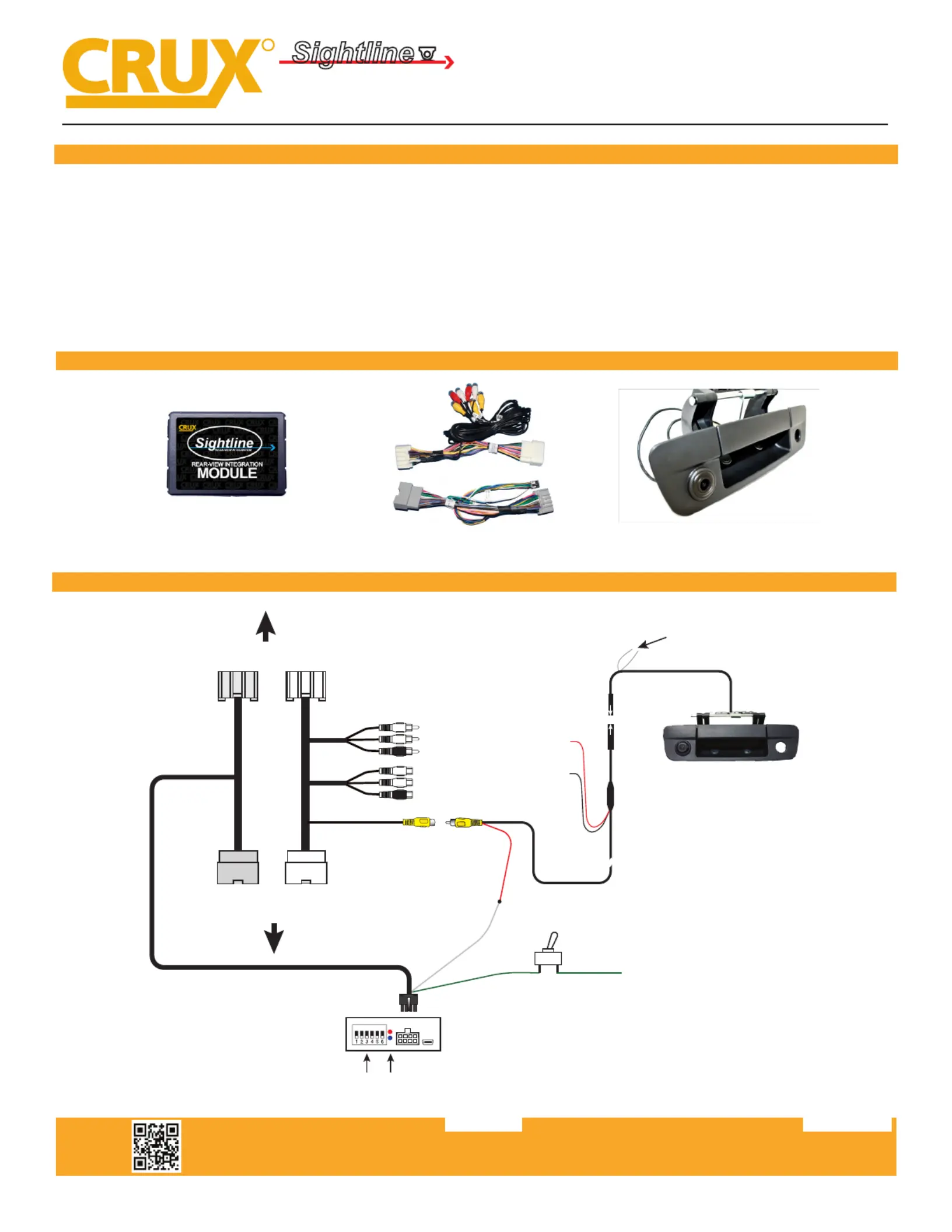

INSTALLATION DIAGRAM:
WHITE Wire
Parking Guideline
DP
ON
DIP
SWITCH
LED
LED RED = Power ON Status
LED BLUE = Data Bus ON Status
Regulator
20 Ft. Coax Cable
8-Pin Molex
TO RADIO
WHITE
22-PIN
(MALE)
GRAY
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
GRAY
22-PIN
(FEMALE)
TO FACTORY
HARNESS
Tap Green wire to +12V ACC for non
permanent VIM. Set DIP 1 to OFF.
(toggle switch not included)
WHITE Wire*
(Camera Power Output
+12V 250mA)
RED Wire
Tape O
(Not Used)
*Note that the white wire does not supply Reverse Trigger on Manual
Transmission and should be insulated .Camera power must be connected
to factory reverse light wire instead.
To Source Ground
(ground wire)
(not chassis ground)
A/V OUT
A/V INPUT
To +12V ACC
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.092220
2 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
INSTALLATION INSTRUCTIONS:
INSTALLING THE RVCCH-75R INTERFACE
1. Remove the factory radio to gain access to the factory connectors.
2. Plug in the t-harness with WHITE and GRAY connectors. (See wiring diagram on page 1)
3. Set the proper DIP Switch sengs on the RVCCH-75R module. (See chart above)
4. Use the WHITE 12V Reverse Output wire to power the camera (see wiring diagram on page 1). DO NOT connect the red
power wire, near the camera, to the reverse light and insulate this red wire to avoid from shorng. If the vehicle has
a manual transmission, the camera power must be tapped to the +12V reverse light wire instead. In this case the WHITE
12V Reverse Output wire is not used and should be insulated to avoid from shorng.
5. Plug in the AV source and test for funconality.
6. Proceed to installing the tailgate handle camera.
INSTALLING THE CDR-02 CAMERA
1. Remove the OE tailgate handle.
2. Remove the OE lock cylinder and install in the CDR-02 camera housing.
3. Install the new tailgate handle and run the cables to the radio.
4. Remove the factory radio to gain access to the factory connectors.
5. Route the wires towards the radio and make the power and video connecons. For powering up the camera, use the 12V
OUTPUT (White Wire). (See Wiring Diagram on page 1)
6. Connect the camera ground wire to chassis ground. If video noise is present, we recommend grounding the camera
directly to the BLACK wire on the RVCCH-75D T-harness.
7. The CDR-02 has a built-in parking guide lines opon and is defaulted to ON from the factory. To turn OFF the parking guide
lines, cut the thin WHITE wire located on the camera cable 4 feet from the camera. Unplug the barrel connectors on the
cable for 5 seconds. Align the arrows on the barrel connectors and rmly plug them together.
8. Plug in the Yellow male RCA from the camera cable to the Yellow female RCA of the t-harness with white connectors.
9. Put the gear in reverse to test the camera before re-installing the radio.
DIP SWITCH FUNCTIONS:
DIP 1 = Video in Moon Acvaon ON (permanent VIM) / OFF (use Green wire)
DIP 2 = Rear View Camera ON / OFF
DIP 3 = Set to OFF
DIP 4 = Set to OFF
DIP 5 = CAN Terminaon Radio Side*
DIP 6 = CAN Terminaon Car Side*
RVCCH-75R
Rear View with VIM Integration Interface and
Tailgate Handle Camera for RAM Trucks
*DIP 5 & 6
If the radio is having turn-on issues, please try the following:
Aempt 1: Set 5 & 6 to ON
Aempt 2: Set 5 to ON and 6 to OFF
Aempt 3: Set 5 to OFF and 6 to ON
1 2 3 4 5 6
ON
LED INFORMATION:
The RVCCH-75R module has 2 LEDs on the side of the Molex connector that conrms its funconality as follows:
RED LED: ON = Conrms Power
BLUE LED: PULSING = No BUS, Pending Data
OFF = Complete Power Down
SOLID = BUS Recognized
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0922203 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCCH-75R
Rear View with VIM Integration Interface and
Tailgate Handle Camera for RAM Trucks
VEHICLE APPLICATIONS:
RAM
2009 - 2012 RAM Truck
PARKING GUIDE LINES:
The parking lines are there to assist you while reversing. To deacvate the parking lines simply cut the WHITE loop
wire located near the 4 pin camera connector and cycle the camera power.
What the Lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
GREEN
YELLOW
RED
SWITCHING SOURCES:
VES will be your source for the AV Input.
To access the VES buon, press the RADIO/MEDIA buon on the le side of the radio. The VES buon is only acve
aer the interface is properly installed.
HDD DISC AUX VES
COMPATIBLE RADIO:
MyGig Radio
(HARD DISC DRIVE or HARD DRIVE printed on the lower right hand side of radio face)
