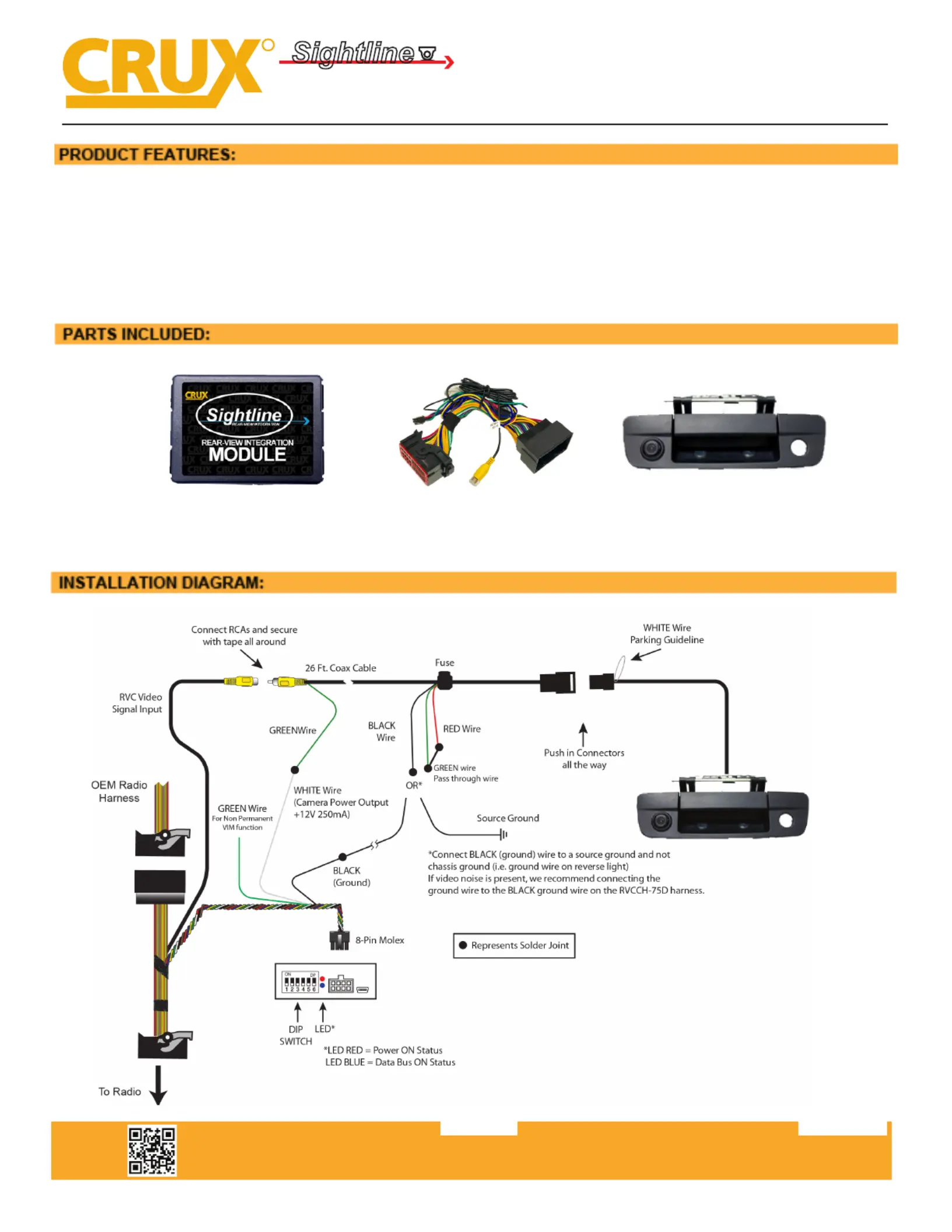

Seite 1/3
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RVCCH-75D
Rear View Integration Interface with VIM
for DODGE RAM Trucks
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.09222021
1 of 3
• Acvates Uconnect Touchscreen Radio for enabling Video features
• Aermarket Rear-view Camera included
• Automacally switches to Rear-view when car is in Reverse mode
• Forced reverse camera view feature
• VIM funcon
• Plug & Play Installaon
RVCCH-75D Module RVCCH-75D Harness CDR-02 Camera
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
INSTALLATION INSTRUCTIONS:
INSTALLING THE CDR-02 CAMERA AND CABLE
1. Remove the OE tailgate handle.
2. Remove the OE lock cylinder and install in the CDR-02 camera housing.
3. Install the new tailgate handle and run the cables to the radio.
4. Remove the factory radio to gain access to the factory connectors.
5. Route the wires towards the radio and make the power and video connecons. For powering up the camera, use the 12V
OUTPUT (White Wire). (See Wiring Diagram on page 1)
6. Connect the camera ground wire to chassis ground. If video noise is present, we recommend grounding the camera
directly to the BLACK wire on the RVCCH-75D T-harness.
7. The CDR-02 has a built-in parking guide lines opon and is defaulted to ON from the factory. To turn OFF the parking guide
lines, cut the thin WHITE wire located on the camera cable 4 feet from the camera. Unplug the barrel connectors on the
cable for 10 seconds. Align the arrows on the barrel connectors and rmly plug them together.
8. Test the camera before re-installing the radio.
CODING THE RADIO FOR A REAR VIEW CAMERA
The radio has to be coded to accept a reverse camera. Please follow the coding procedure below:
1) Turn key o and remove the key from ignion.
2) Open the driver door then close it (make sure all doors, li gate and hood are also closed).
3) Look at the module and wait for LEDs to turn o then disconnect the module.
4) Before plugging back the module, turn all DIP switches to ON then OFF.
5) Set DIP switches 1 (if permanent VIM is desired), 2 and 6 to the ON posion.
6) Reconnect module and wait for the LEDs to turn o.
7) Start up engine and the coding operaon is complete.
8) Put the gear in reverse to test the camera.
FORCED VIEW OF REVERSE CAMERA
The Force RVC is used to view the back-up camera when the vehicle is
not in reverse gear. Allows you to view what is in the back while driving.
To acvate this feature, make sure that DIP 4 is set to ON. Press the center
buon once on the le hand side steering wheel control (located behind the steering wheel).
NOTE: The camera is defaulted to power down aer 10 seconds.
DIP SWITCH FUNCTIONS:
DIP 1 = Video in Moon Acvaon ON / OFF
DIP 2 = Rear View Camera ON / OFF
DIP 3 = Not Used
DIP 4 = Forced RVC ON / OFF
DIP 5 = Defaulted to OFF*
DIP 6 = Defaulted to ON*
RVCCH-75D
Rear View Integration Interface with VIM
for DODGE RAM Trucks
*DIP 5 & 6
If the radio is having turn-on issues, please try the following:
Aempt 1: Set 5 & 6 to ON
Aempt 2: Set 5 to ON and 6 to OFF
Aempt 3: Set 5 to OFF and 6 to ON
1 2 3 4 5 6
ON
rev.09222021
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCCH-75D
Rear View Integration Interface with VIM
for DODGE RAM Trucks
RAM
2013 - 2017 1500
2013 - 2017 2500
2013 - 2017 3500
NOTES:
1. Not compable with diesel powered trucks.
2. Not compable with RAM trucks with factory installed cargo camera.
COMPATIBLE RADIOS:
8.4” Screen with Separate Knobs 5” Screen with 6 Buons &
Separate Knobs
4.3” Screen with 6 Buons &
2 Knobs
4.3” Screen with 4 Buons & 2 Knobs
Not compable radio
rev.09222021
