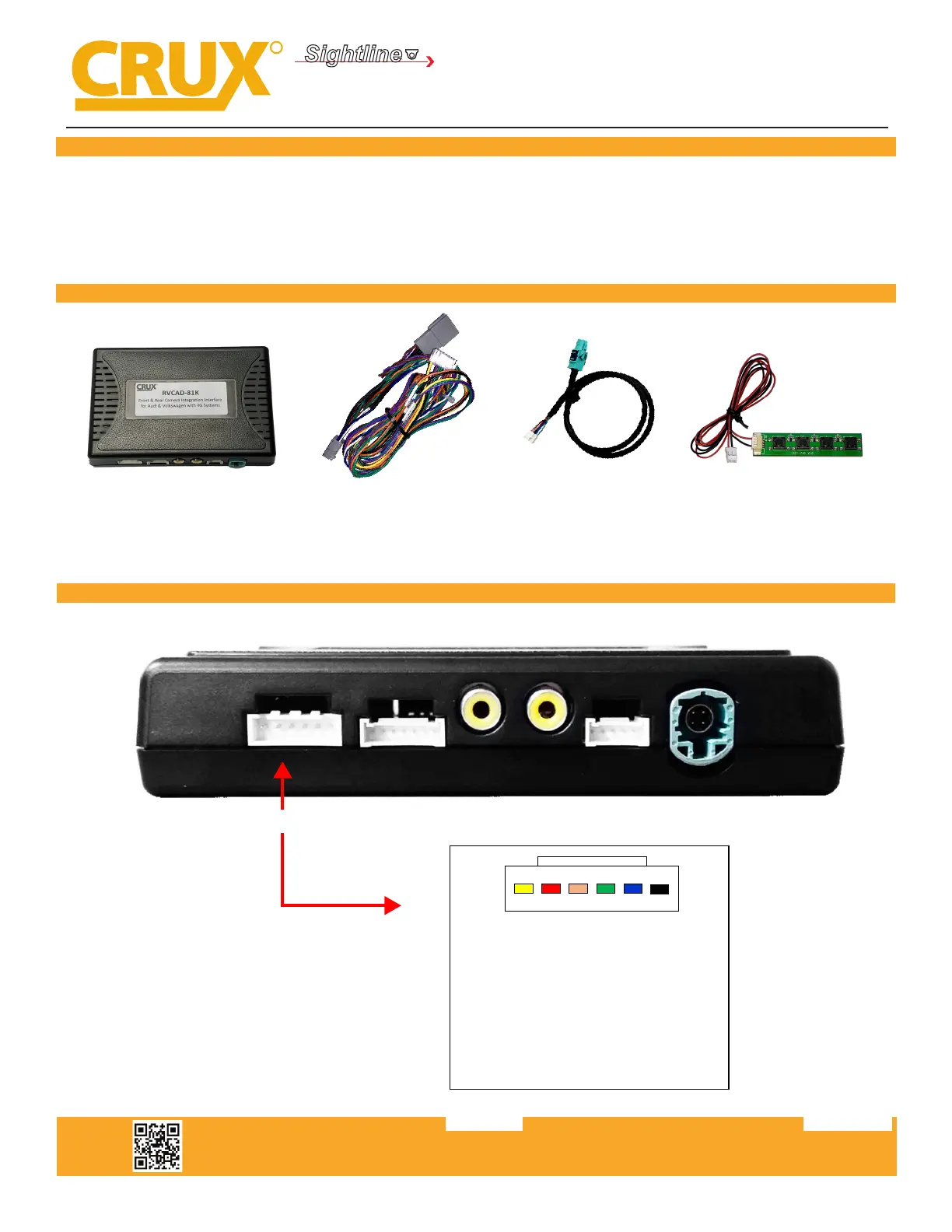

Seite 1/7
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RVCAD-81K
Front and Rear View Integration Interface
for AUDI and VOLKSWAGEN with 4G Systems
PRODUCT FEATURES:
- Acîžźvates Reverse camera input in Audi and Volkswagen vehicles with 4G systems.
- Rear-view camera input with PDC seîž«ng.
- Front camera input with îžźmed acîžźvaîžźon/deacîžźvaîžźon seîž«ng.
- On-screen display and setup.
PARTS INCLUDED:
rev.082520
1 of 7
Pow /CANer POWER Harness
REARFRONT
â‘ ACC (Ye ow)ll
②FRONT/REAR_POWER (Red)
③CAN - HIGH ( ange)Or
â‘ŁCAN - LOW (Gr n)ee
⑤MMI (Blue)
â‘ĄGND lack)(B
① ② ③ ④ ⑤ ⑥
CONNECTOR PIN ASSIGNMENT:
RCVAD-81K Module RVCAD-81K Harness LVDS Cable Programming Keypad
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RVCAD-81K
Front and Rear View Integration Interface
for AUDI and VOLKSWAGEN with 4G Systems
2 of 7 rev.082520
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
DIP SWITCH SETTINGS:
DIP# FUNCTION SETTING
1 NO FUNCTION SET TO OFF
2NO FUNCTION SET TO OFF
3NO FUNCTION SET TO OFF
4 NO FUNCTION SET TO OFF
5
VEHICLE SELECTION SEE CHART BELOW
6
7
8
VEHICLE DIP# 5 DIP# 6 DIP#7 DIP# 8
Audi A3 with 5.8” screen OFF ON OFF OFF
Audi A3 with 7” screen OFF ON OFF ON
Audi A4/Q7 with 7” screen OFF OFF ON ON
Audi A6 with 8” screen OFF ON ON OFF
Volkswagen Golf with 5.8” screen OFF OFF OFF OFF
Volkswagen Golf with 6.5” screen ON OFF OFF ON
Volkswagen Golf with 8” screen OFF OFF OFF ON
Volkswagen Tiguan with 8” screen ON ON OFF OFF
NOTE on DIP Switches:
DOWN is ON
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.082520
RVCAD-81K
Front and Rear View Integration Interface
for AUDI and VOLKSWAGEN with 4G Systems
WIRING DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
ACC (Yellow)
Rear Camera Power (Red)
Ground (Black)
To OE Monitor
Connect to GRAY Connector
(DO NOT connect to Blue or
Green Connector)
RVCAD-81K
To Rear Camera
To Front Camera
1. Unplug the Quadlock connector from the headunit. 2. Remove the GRAY connector insert from the Quadlock.
3. Plug the factory GRAY connector insert to the
RVCAD-81K harness
4. Plug the GRAY connector insert on the RVCAD-81K
harness to the Quadlock connector.
INSTALLATION INSTRUCTIONS:
3 of 7
