RVCAD-81
Rear-view Camera Integration with AV Inputs for
Select Audi Vehicles with MMI-2G
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
rev.031220
1 of 6

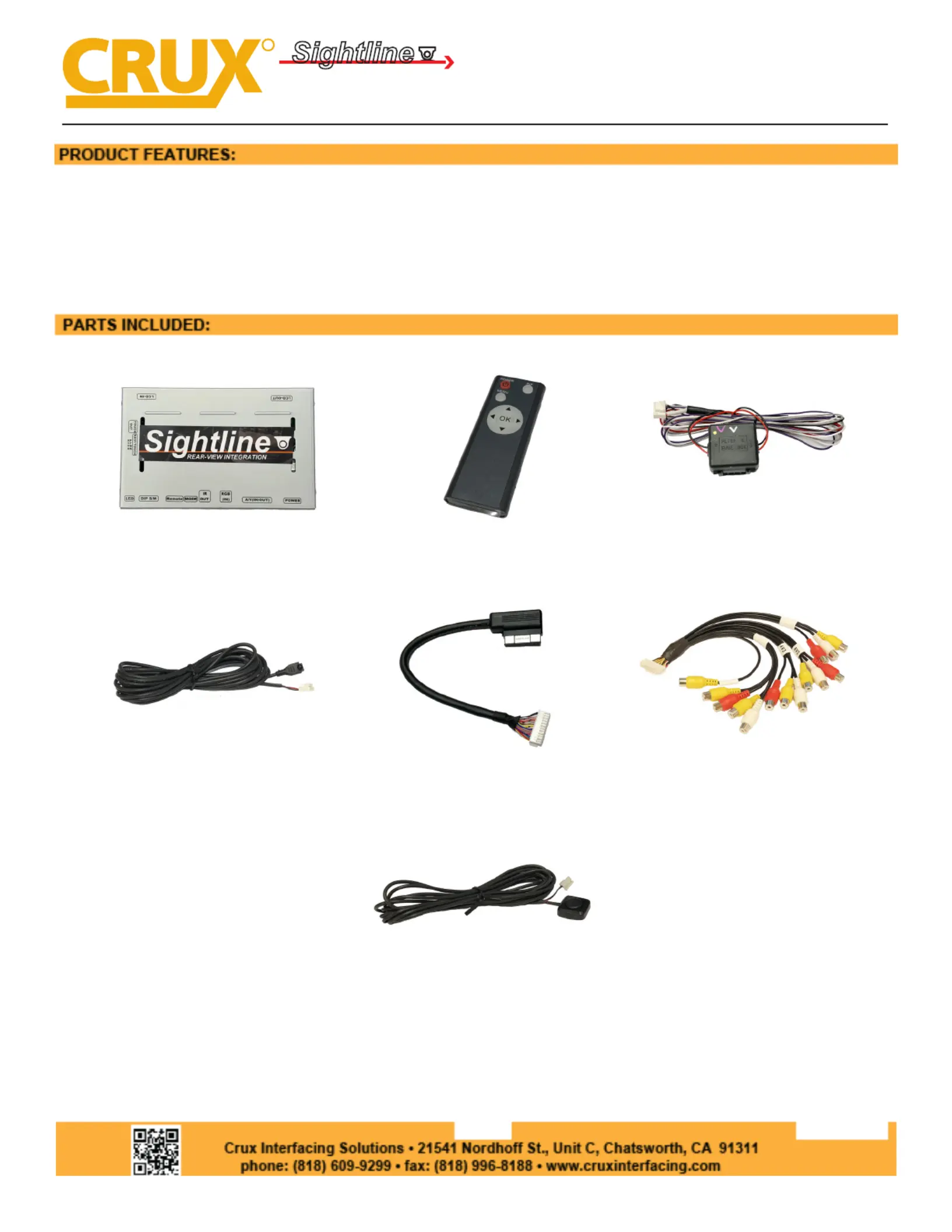

- Provides reverse camera input.
- Adds 2 Audio/Video inputs.
- Provides 2 video and 1 set of audio outputs.
- Plug and play installaon.
RVCAD-81
Module
Remote Control Power Harness
IR Extension Cable LCD Cable A/V Cable
Push Buon Switch
rev.031220
2 of 6
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCAD-81
Rear-view Camera Integration with AV Inputs for
Select Audi Vehicles with MMI-2G
TO MMI
MODULE
MMI CABLE
(provided in the kit)
OEM
SCREEN
AV 1
AV 2
AV OUT
V OUT
R CAMERA
+12V ACC
GROUND
SAFE (Not used)
REAR-C (Gray wire - Connect to reverse light +12V if CAN is not used)
MMI (Not used)
FACTORY MMI CABLE
DIP# FUNCTION DESCRIPTION
1No Funcon = Set to OFF
2 AV 1 ON = Skip
OFF = Display
3 AV2 ON = Skip
OFF = Display
4No Funcon - Set to OFF
5No Funcon - Set to OFF
6No Funcon - Set to OFF
7Backup Camera Source ON = Aermarket Backup Camera
OFF = OEM Backup Camera
8No funcon = Set to ON
REAR CAMERA POWER
The rear camera power needs to be tapped to the vehicle’s reverse light. If for some reason the
screen does not changeover to rear camera view aer pung the gear in reverse, tap the GRAY
wire (labeled REAR-C) to the reverse light +12V.
rev.0312203 of 6
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RVCAD-81
Rear-view Camera Integration with AV Inputs for
Select Audi Vehicles with MMI-2G
1. Remove the screws below the glove box. 2. Open the glove box and remove the screws that
hold the CD changer facia plate.
3. Remove the fuse box cover (at the right side of the
dashboard) and reemove the two screws.
4. Pull out the glove box and set aside.
5. Remove the CD changer. 6. Unplug the RED power connector from the MMI.
The installaon of the RVCAD-81 is done at the MMI Module. The MMI Module is located above the glove box
or by the passenger side transmission hump.
