Seite 1/5
Jeep Wrangle Spare Tire
Mount Camera
CCH-01W License Plate
Mount Camera
CUB-15 Adjustable Angle Side
Camera
RFM-WR1
Multi View Integration Interface with A/V Input for
JEEP WRANGLER with MyGig Radio
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
061918
1 of 5

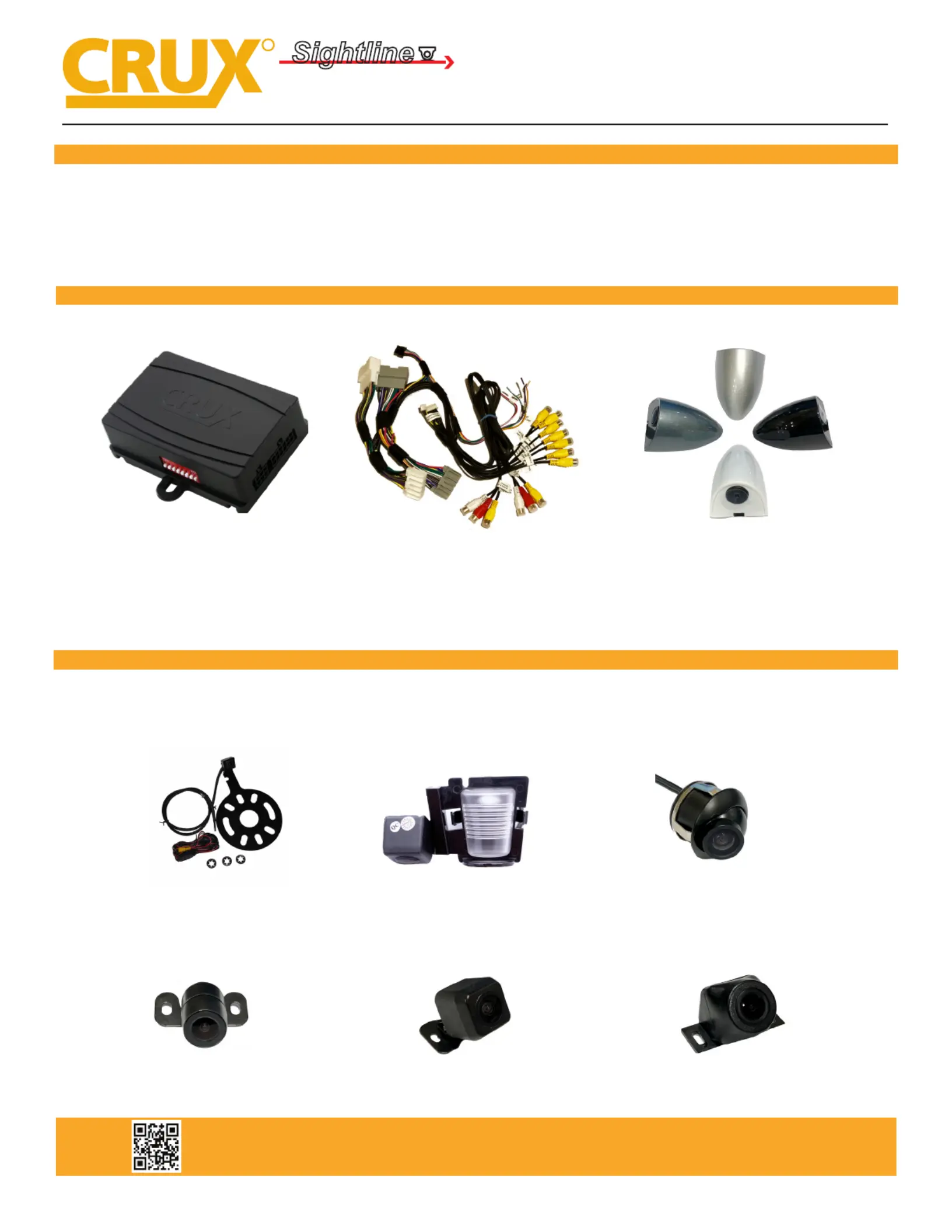

- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buîž©ons to toggle between the sources.
- Turn signals automaîžźcally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or oîś« by using the SWC buîž©on.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-WR1 Module RFM-WR1 Harness CSV-01 Fender Mount Camera
(Available in Black, Charcoal Gray, Silver & White)
OPTIONAL ADD-ON CAMERAS:
Opîžźonal add on cameras are available to complete the mulîžź-view capability of the RFM-WR1 Jeep Wrangler Mulîžź
Cam Integraîžźon Interface. Cameras available and sold separately include:
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
061918
2 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7 AUX A/V ON AUX A/V OFF
8 Set to ON
RFM-WR1
Multi View Integration Interface with A/V Input for
JEEP WRANGLER with MyGig Radio
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Auxiliary Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
Connect this 6-pin plug if OEM
backup camera is being used
Audio/Video
Output
TO RADIO
WHITE
22-PIN
(MALE)
GRAY
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
GRAY
22-PIN
(FEMALE)
TO FACTORY
HARNESS
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
061918
3 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
1. Remove the rubber lining on the compartment on the
dashboard. Remove one screw.
2. Carefully pry out the power window switch assembly.
3. Unplug the power window switch connector. 4. Remove the screw behind the power window switch
housing.
5. Remove the lower panel under the steering wheel
column.
6. Remove the screw holding the upper dash trim panel.
RFM-WR1
Multi View Integration Interface with A/V Input for
JEEP WRANGLER with MyGig Radio
INSTALLATION INSTRUCTIONS:
Installaîžźon example is on a 2016 Jeep Wrangler.
