Seite 1/5
CUL-16 Lip Mount Camera CUL-04 Lip Mount Camera CLP-12 License Plate Mount Camera
RFM-TYS
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Sienna 2018
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0112211 of 5
- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buîž©ons to toggle between the sources.
- Turn signals automaîžźcally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or oîś« by using the SWC buîž©on.

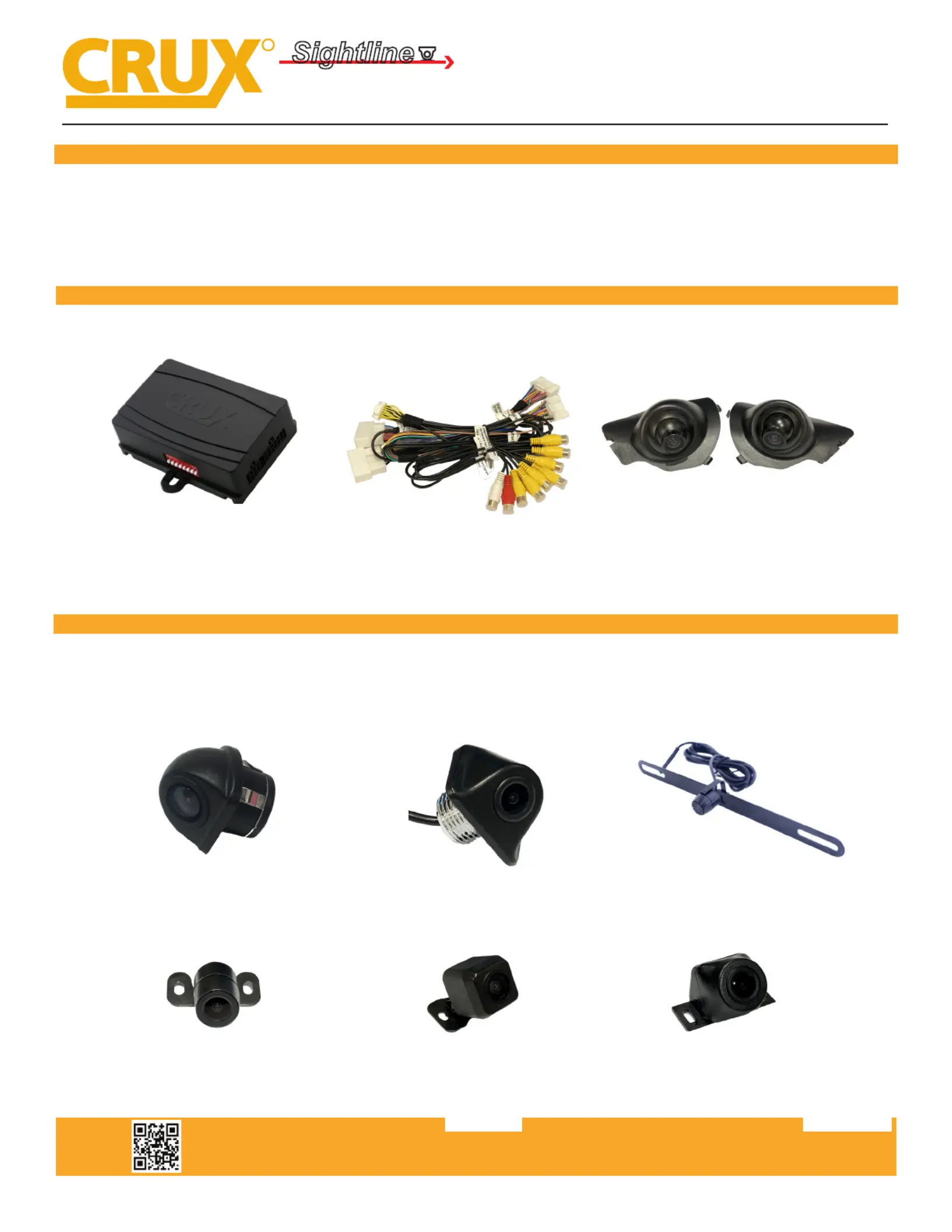

PRODUCT FEATURES:
PARTS INCLUDED:
RFM-TYS Module RFM-TYS Harness CSV-TYS Sienna Side Mirror Camera
OPTIONAL ADD-ON CAMERAS:
Opîžźonal add on cameras are available to complete the mulîžź-view capability of the RFM-TYS. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front Camera
(Recommended)
CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0112212 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7AUX A/V ON AUX A/V OFF
8Set to OFF
RFM-TYS
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Sienna 2018
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output +12V (purple/white)
Left and Right Camera Power Output +12V (green/white)
Cargo and Trailer Camera Power Output +12V (orange/white)
Right Turn Signal Input (grey/red)
Left Turn Signal Iput (pink/black)
To Vehicle Harness
Connect this 6-pin plug if OEM
backup camera is being used
28 PIN30 PIN
To Radio
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0112213 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
RFM-TYS
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Sienna 2018
1. Remove the felt liner inside the door pull and remove
the screw.
2. Remove the door unlock handle cover and remove the
screw.
3. Use a plasîžźc pry bar to remove the window sail. Remove
the trim panel clips
4. Unhook the door panel by pulling it upward. Unplug
the speaker and doorlock harness.
5. Use a hooked pick tool to remove the OEM side mirror
cover. Fish the camera cable through the hole.
6. Tuck in the camera cable inside the cavity and snap in
the CSV-TYS side mirror cover with camera.
Side Mirror Mounted Camera Installaîžźon:
Side mirror camera installaîžźon below is on a 2018 Toyota Tacoma. Installaîžźon on a 2018 Sienna is similar.
