Seite 1/6

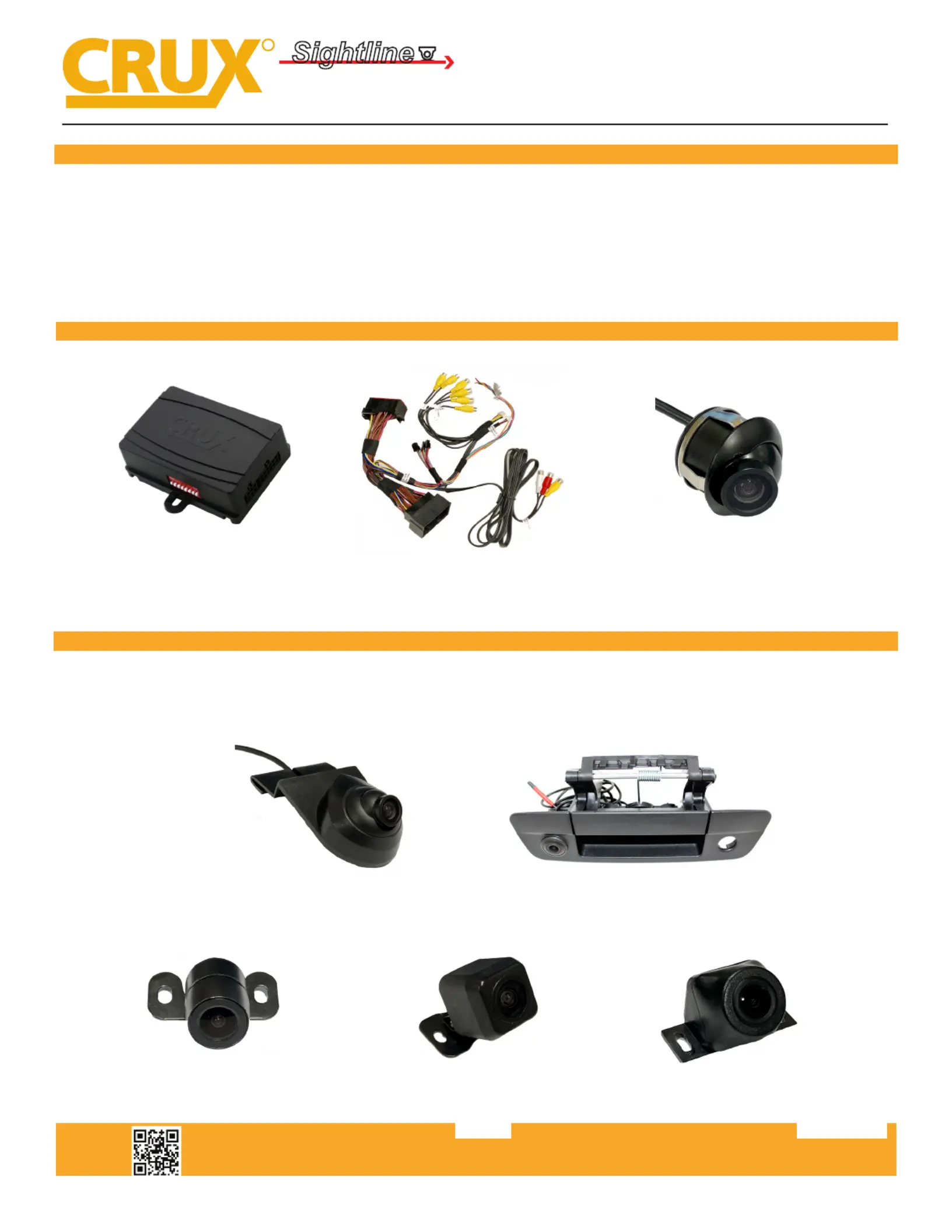

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091019
1 of 6
- Adds a reverse camera input, plus 5 video inputs and an addional audio/video input.
- Uses the steering wheel control buons to toggle between the sources.
- Turn signals automacally trigger the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the BACK buon on the radio.
- Includes 2 adjustable angle cameras for the side mirrors.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-RAM1 Module RFM-RAM1 Harness CUB-15 Adjustable Angle Side Camera
(2 pieces)
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-RAM1. Cameras available
and include:sold separately
CDR-31C Cargo Camera CDR-02 Tailgate Handle Camera
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
RFM-RAM1
Multi View Integration Interface with A/V Input &
Side Cameras for RAM Trucks with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0910192 of 6
INSTALLATION DIAGRAM:
RFM-RAM1
Multi View Integration Interface with A/V Input &
Side Cameras for RAM Trucks with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
INSTALLATION INSTRUCTIONS:
1. Carefully remove the radio trim
bezel by pulling outward.
2. Unplug the connectors behind the
radio trim bezel.
3. Remove the factory screen by
removing the 4 screws on the corners.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0910193 of 6
RFM-RAM1
Multi View Integration Interface with A/V Input &
Side Cameras for RAM Trucks with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
4. Unplug the factory 52-pin connector by pulling on the lock lever. 5. Connect the factory 52-pin
connector to the mang connector on
the RFM-RAM1 T-harness.
6. Plug the 52-pin connector of the RFM-RAM1 T-harness to the radio and push
in the lock lever.
7. Plug the Molex connectors from the
T-harness to the module.
8. Plug the video RCA harness to the
module.
9. Remove the door panels and side mirror to install the side mirror cameras.
Run the cable through the boot for a clean install.
