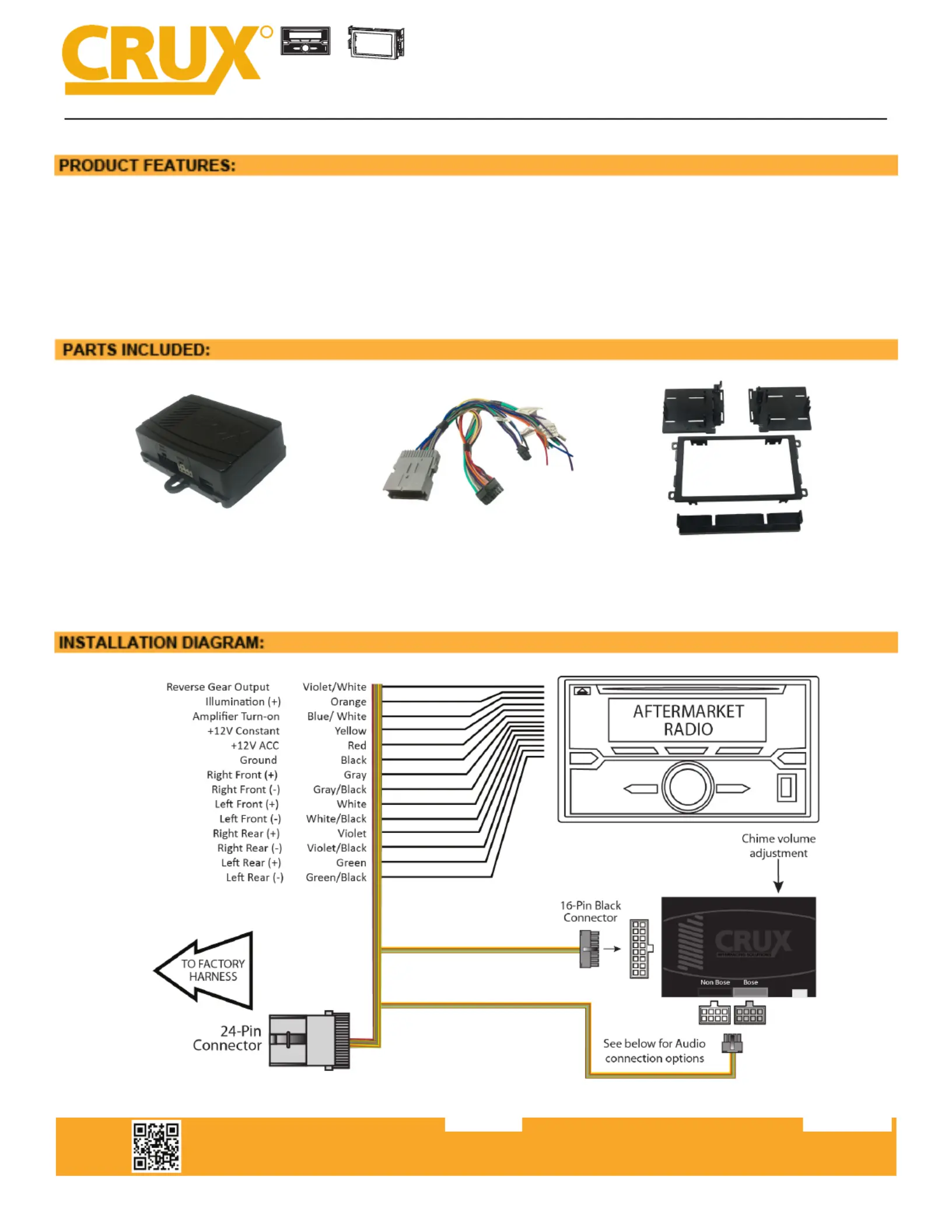

DKGM-C2D
Radio Replacement with Double DIN Dash Kit for
GM Class II Vehicles 2002 - 2013
1 of 4
- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
- Supports Bose, Y-91 and non-ampliîšżed audio systems.
- Retains chime functions such as: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
- Retains RAP (Retained Accessory Power).
- Double DIN Dash Kit included.
- EIA color coded wiring for easy installation.
RA D I O RE P L A CEMENT
+
R
INTERFACING SOLUTIONS
DKGM-C2D MODULE DKGM-C2D HARNESS DOUBLE DIN DASH KIT
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
DKGM-C2D
Radio Replacement with Double DIN Dash Kit for
GM Class II Vehicles 2002 - 2013
2 of 4
RA D I O RE P L A CEMENT
+
R
INTERFACING SOLUTIONS
SELECTING THE AUDIO SYSTEM:
If the vehicle is equipped with an ampliîšżed audio system, the DKGM-C2D has a built-in audio level
adaptor that outputs the proper audio level from the aftermarket radio to the factory ampliîšżer. To use this
feature, plug in the male 8-pin connector on the DKGM-C2D harness to the GRAY female 8-pin connector
on the DKGM-C2D module. The module is also labeled “Bose” and “Non Bose” to avoid confusion. (see
picture below)
If the vehicle is NOT equipped with a factory ampliîšżed system, plug in the male 8-pin connector to the
BLACK female 8-pin on the DKGM-C2D module.
Non-BOSE
(Non-Amplied)
Connecîžźon
BOSE
(Amplied)
Connecîžźon
CHIME VOLUME ADJUSTMENT:
The DKGM-C2D has a potentiometer to adjust the chime volume. It is set at half way by default. To
adjust the volume, simply use a suitable screw driver and turn the potentiometer clockwise to increase
the volume and counter-clockwise to decrease the volume.
Chime
Volume
Adjustment
rev.092921
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
DKGM-C2D
Radio Replacement with Double DIN Dash Kit for
GM Class II Vehicles 2002 - 2013
3 of 4
RA D I O RE P L A CEMENT
+
R
INTERFACING SOLUTIONS
DASH KIT INSTALLATION:
Please make sure that you have all the parts as shown.
(1) Main trim ring
(1) Le ISO mounng bracket
(1) Right ISO mounîžźng bracket
REMOVE ALL TABS ON
BOTH LEFT & RIGHT
BRACKETS
REMOVE TABS ON BOTH SIDES
OF THE TRIM RING
REMOVE ALL TABS ON BOTH SIDES
OF MOUNTING BRACKETS
INSERT CADILLAC BRACKET INTO SLOTS
ON LEFT & RIGHT MOUNTING BRACKETS
For some Cadillac installaîžźon, see diagram below:
rev.092921
