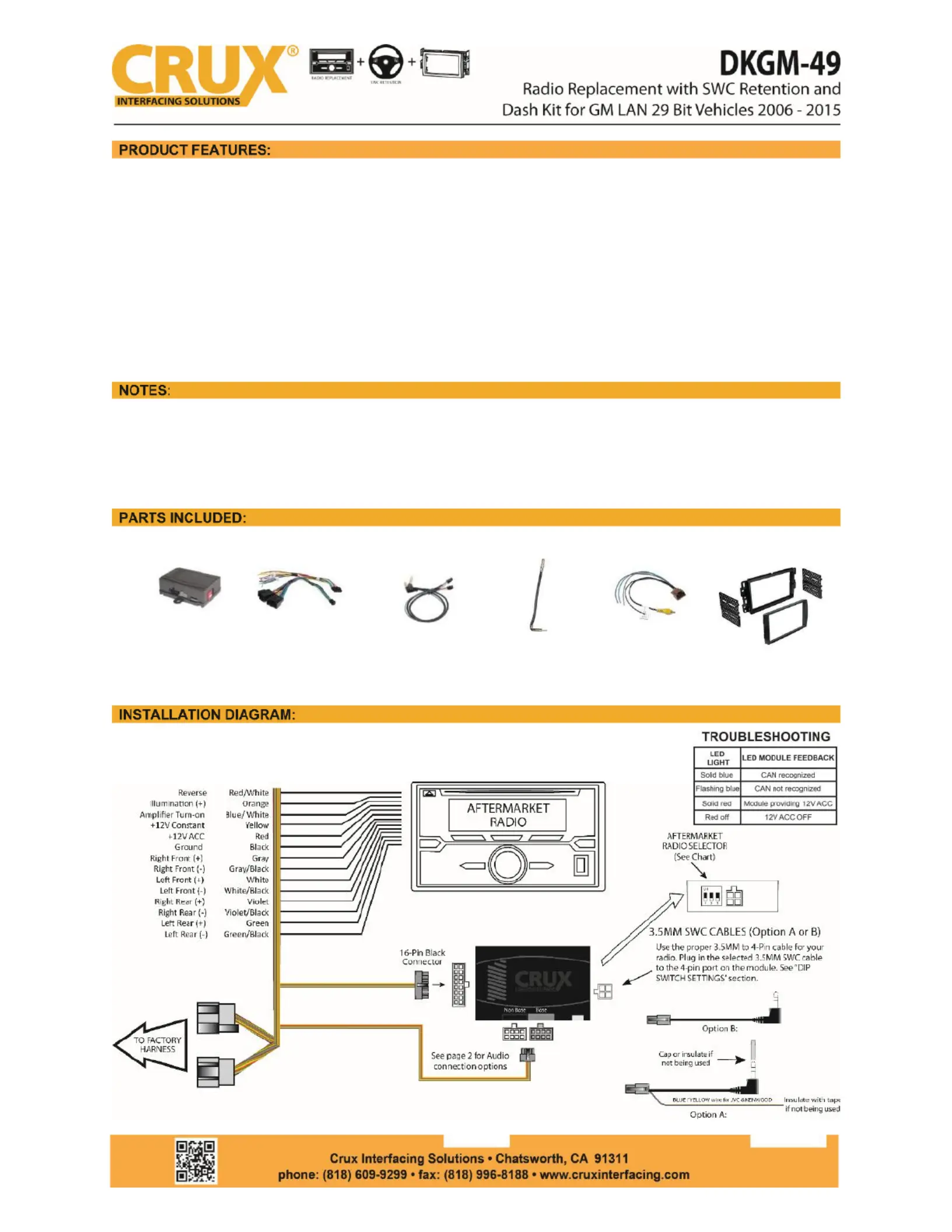

-Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
-Pre-programmed to retain factory Steering Wheel Controls.
-iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.
-Supports Pick Up/End Call, Pick Up and Toggle between 1st and 2nd Incoming call, AVRCP Track, Seek.
-Supports Bose, non-Bose and Y-91 audio systems.
-Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A
(sold separately).
-Retains backup sensors / park assist system.
-Retains chime functions.
-EIA color coded wiring for easy installation.
1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.
2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.
3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
4. DOES NOT support ONSTAR.
GM- Module 49
GM-49 Harness
SWC Cables
Antenna Adaptor
CRUX2543
Dash Kit
Rev.072322
1 / 4
SETTING THE AFTERMARKET RADIO BRAND
With the key in the off position, set the DIP switches to the corresponding radio listed below.
3.5MM SWC CABLE
Use the proper 3.5 to 4 pin SWC cable for the aftermarket radio being used:
OPTION A is used for ALPINE, CLARION, (JVC and KENWOOD units will use the Blue/Yellow wire).
OPTION B is used for ATOTO, BOSS, DUAL, FAHRENHEIT, JENSEN, POWER ACOUSTIK, PIONEER,
SONY, SOUND STREAM and most OFF-BRAND headunits.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
If the vehicle is equipped with a Bose system, the DK - module has a built-in Bose adaptor that allows the GM 49
proper audio input gain from the aftermarket radio to the Bose amplifier. To use this feature, plug in the male 8-pin
connector on the harness to the GRAY female 8-pin connector on the - module. The module is also labeled DKGM 49
“Bose” and “Non Bose” to avoid confusion. (see picture below)
If the vehicle is NOT equipped with a Bose system, plug in the male 8-pin connector to the BLACK female 8-pin on
the GM-49 module.
BOSE
Connection
Non-BOSE
Connection
Rev.072322
The - module has a potentiometer to adjust the chime volume. It is set at halfway by default. To adjust DKGM 49
the volume, simply use a suitable screwdriver and turn the potentiometer clockwise to increase the volume and
counter-clockwise to decrease the volume.
You can retain use of the factory backup camera by using the CRUX2543 harness provided in the kit. See below for
connection instructions. (Note: Loose wires may not be needed in the installation.)
NOTE:
Does not retain the factory backup camera on models that show the camera image on the rearview mirror.
A double DIN radio replacement dash kit is included in the kit to make the installation quick and easy. You have the
option of installing a Double DIN or two Single DIN radios. The DKGM-49 kit includes:
Chime
Volume
Adjustment
3 / 4
Rev.072322
