- Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains OnStar, factory rear view camera and chime functions.
- Retains factory backup sensors / park assist system.
- Supports Bose, non-Bose and Y-91 audio systems.
- EIA color coded wiring for easy installation.
- Includes Double DIN Radio Replacement Dash Kit.
PRODUCT FEATURES:
PARTS INCLUDED:

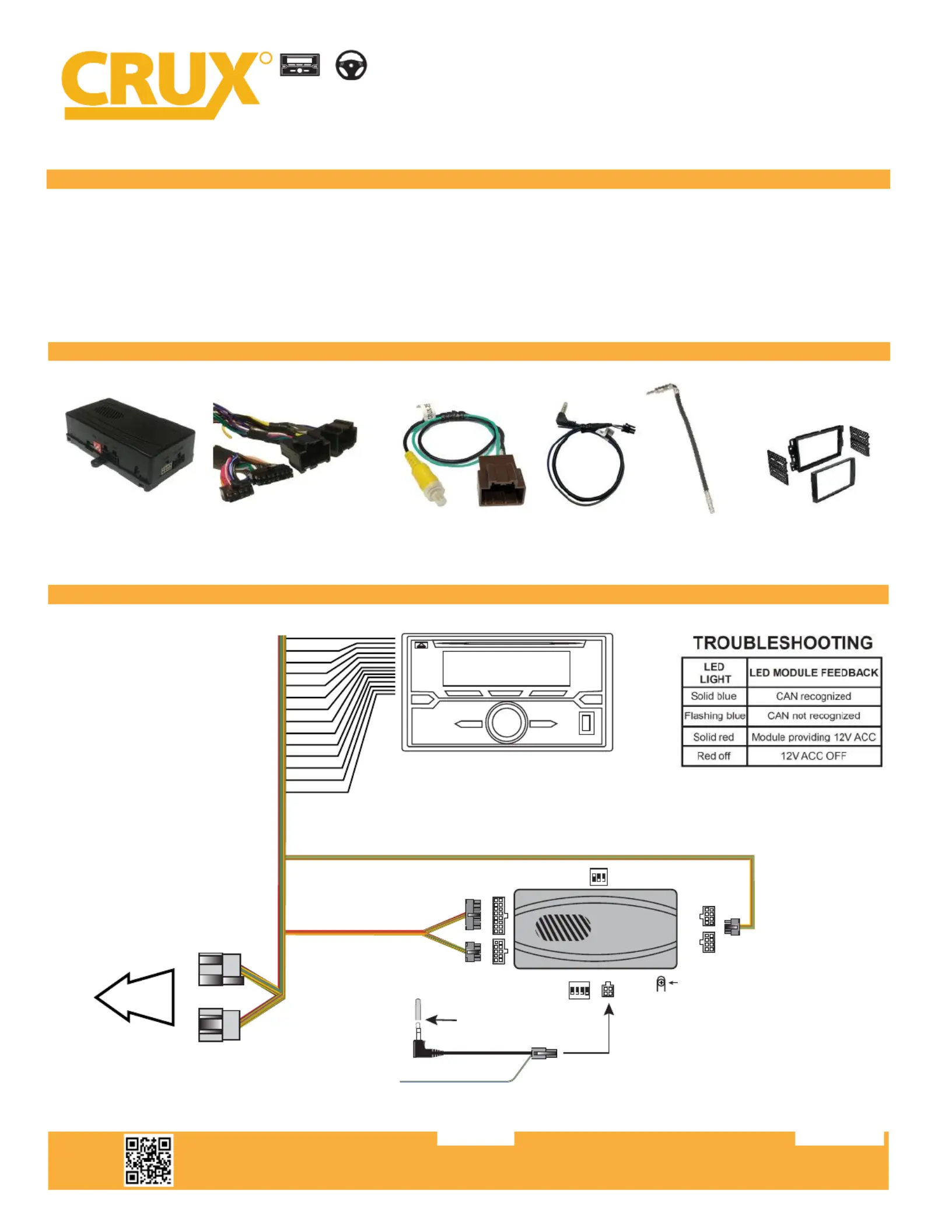

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Reverse Gear Red/White
Parking Brake Yellow/Black
Illumina on (+) Orange
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) White
Le Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Green
Le Rear (-) Green/Black
TO FACTORY
HARNESS
24-Pin
Connector
8-Pin
Connector
BOSE NON
BOSE
10-Pin
Connector SWC DIP SWC
1 2 3 4
ON
Chime Volume
Adjustment
1 2 3
ON VR Activation
for OnStar (set DIP#1 to ON)
4-Pin
Connector
Cap or insulate if
not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
JVC/Kenwood (Blue / Yellow)
To aftermarket
radio SWC wire or
3.5mm port
DKGM-16
Radio Replacement with OnStar, SWC Retention, & Dash Kit
for GM LAN 29 Bit Vehicles 2006 - 2014
SOOGM-16 Module SOOGM-16 Harness Backup Camera Harness SWC Cable Antenna Adapter Dash Kit
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0708222 of 6
R O P LA TAD I RE CE MEN
SW E T IONC R E NT
+
R
INTERFACING SOLUTIONS
DKGM-16
Radio Replacement with OnStar, SWC Retention, & Dash Kit
for GM LAN 29 Bit Vehicles 2006 - 2014
DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3 4
Atoto, Dual, Fahrenheit, Jensen,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
SWC MODULE
DIP SWITCH
1 2 3 4
ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
SELECTING THE AUDIO SYSTEM:
the SOOGM-16 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the SOOGM-16 harness to the GRAY
female 8-pin connector on the SOOGM-16 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SOOGM-16 module.
Non-BOSE
BOSE
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0708223 of 6
R O P LA TAD I RE CE MEN
SW E T IONC R E NT
+
R
INTERFACING SOLUTIONS
DKGM-16
Radio Replacement with OnStar, SWC Retention, & Dash Kit
for GM LAN 29 Bit Vehicles 2006 - 2014
CHIME VOLUME ADJUSTMENT:
The SOOGM-16 has a potentiometer to adjust the
chime volume. It is set at half way by default. To adjust
the volume, simply use a suitable screw driver and turn
the potentiometer clockwise to increase the volume and
counter-clockwise to decrease the volume.
Chime
Volume
Adjustment
ONSTAR VOLUME ADJUSTMENT:
To adjust the OnStar volume, turn on OnStar and adjust the volume using the Steering Wheel Control volume
adjustment. Once it is set, the SOOGM-16 will memorize this level.
REAR SEAT ENTERTAINMENT (RSE) (Optional Cable):
Part# CRUX2333A can be special ordered to retain the Rear Seat Entertainment (RSE).
4. Test the audio and video on the overhead screen before in alling the radio back into the dashboard.st
AV INPUT
TO FACTORY
OVERHEAD
SCREEN
Ground
Part# CRUX2333A (Sold Separately)
