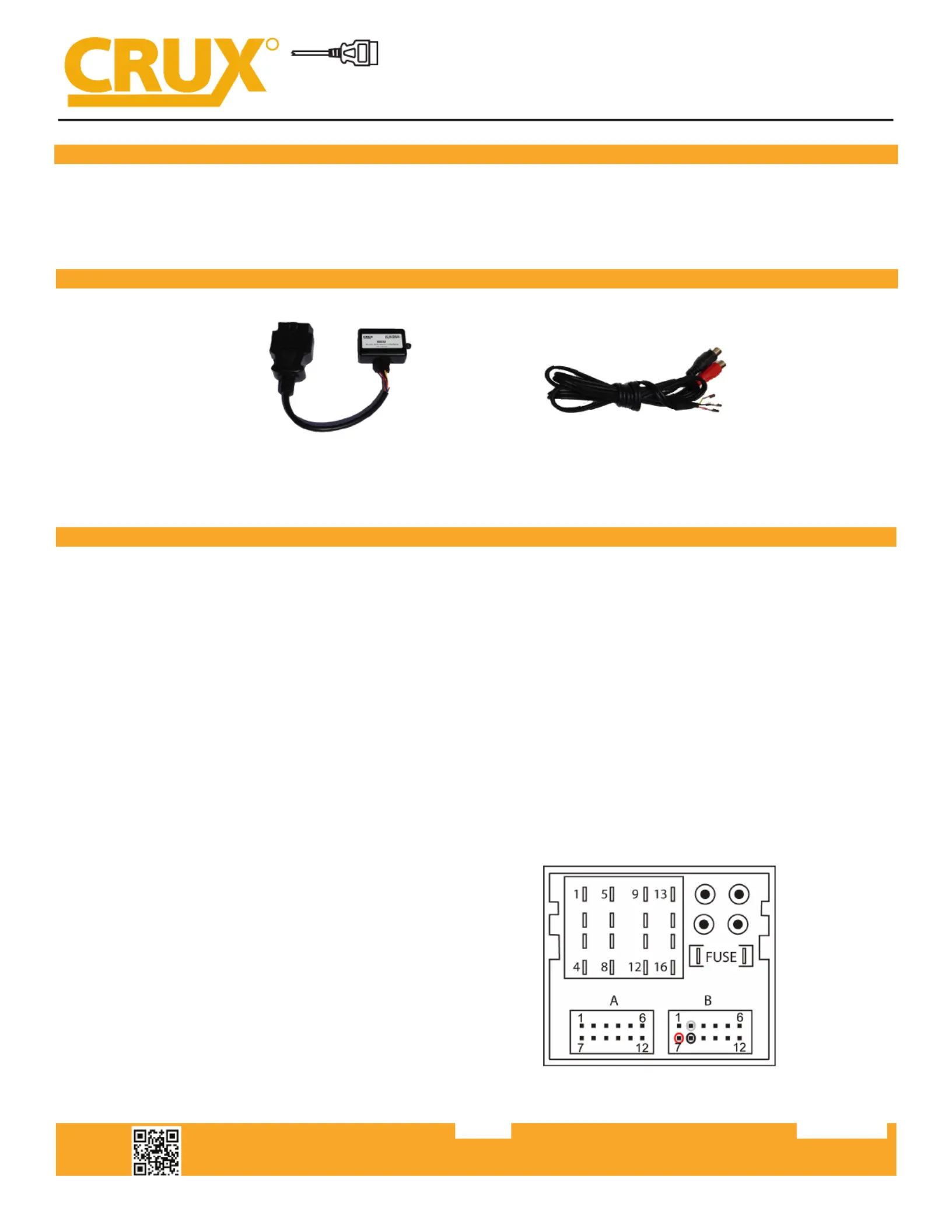

- The AUX-BM4 will enable the Auxiliary Audio Input on the OEM navigation radio menu.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION INSTRUCTIONS:
AUX-BM4 OBD Coder Audio Input Cable
AUX-BM4
Auxiliary Input Interface and OBD Coder for Select
BMW Vehicles with Business or Professional Navigation System
1. Locate OBD-port and remove cover (commonly located under the dashboard on the driver side).
2. Turn igniîžźon switch to ACC.
3. Wait unîžźl the navigaîžźon has booted.
4. Plug coder into OBD-port.
5. The navigaîžźon will re-boot.
6. When the navigaîžźon startup-screen shows, remove coder from OBD-port.
7. Your radio’s Auxiliary Audio input feature is now enabled.
To remove the Auxiliary Audio feature from the navigaon’s menu repeat steps 1-6. Aer the rst use on a
vehicle, the coder AUX-BM4 is personalized to this vehicle. On this vehicle the enabling and removing the
Audio-AUX feature can be repeated without limit.
The AUX-cable must be connected into the female Quadlock connector of the vehicle harness on the
back of the radio (receiver under the AC vents).
Quadlock connector, chamber B
Pin 2 ● Audio (+) le (white)
Pin 7 â—Ź Audio (+) right (red)
Pin 8 â—Ź Audio (-) ground (black)
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.080719
2 of 2
R
INTERFACING SOLUTIONS
AUX-BM4
Auxiliary Input Interface and OBD Coder for Select
BMW Vehicles with Business or Professional Navigation System
OPERATION:
1. Acîžźvaîžźng the Auxiliary Audio Input feature on the radio will create an AUX tab on the source drop down menu.
2. Plug in your external audio source, ie. iPod, MP3 player, DVD player to the Aux input cable.
3. Using the controller on the center console, go to the source menu and click on the AUX tab.
4. Audio should be heard on the factory sound system.
VEHICLE APPLICATIONS:
1 Series
2007-2011 (E87)
2007-2011 (E81)
2007-Aug 2013 (E82)
2007-Jun 2014 (E88)
3 Series
2007-2011 (E90)
200-2011 (E91) Wagon
2007-2012 (E92) Coupe
2007-2013 (E93) Converîžźble
5 Series
2007-2010 (E60/E61)
X6
2008-2012 (E71)
6 Series
2007-2010 (E63/E64)
X5
2007-2013 (E70)
SYSTEM COMPATIBILITY:
BMW vehicles with 10 pin LVDS (CCC, M-ASK, Champ). Professional with 8.8” or Business with 6.5” screen
navigaîžźon systems.
