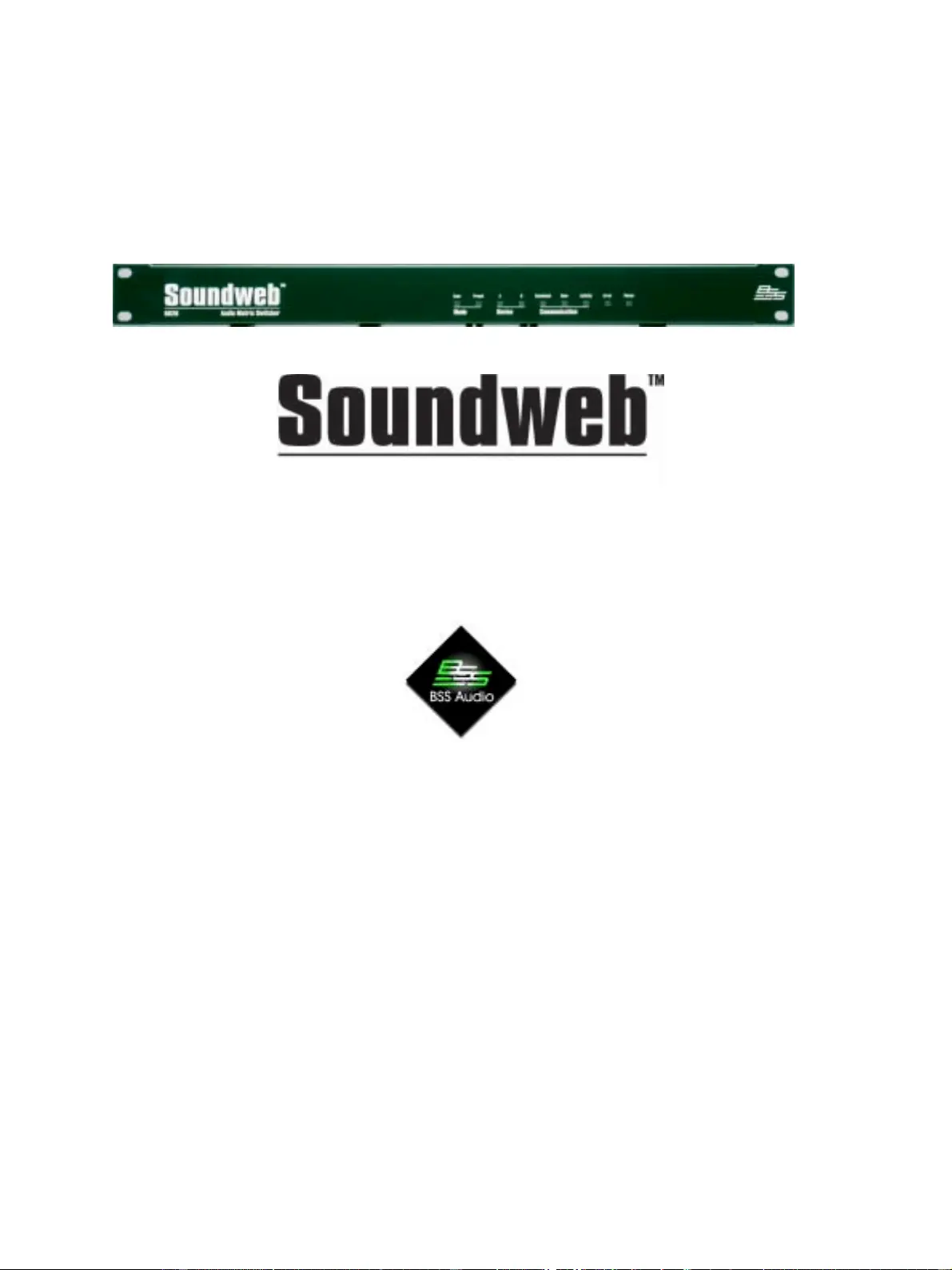

Installation Guide
SW9026 Audio Matrix Switcher
Soundweb 9026 Installation Guide
2
Soundweb
TM
Important Safety Information - Read this carefully
This equipment has been tested and found to comply with the following
European and international Standards for Electromagnetic Compatibility and
Electrical Safety:
Radiated Emissions (EU): EN55013 (1996)
RF Immunity (EU): EN55013-2 (1996)
Electrical Safety (EU): EN60065+A11 (1998)
Electrical Safety (USA): UL6500/ETL (2000)
Electrical Safety (CAN): CAN/CSA-E65/ETLc (1994)
Before using the apparatus, read these instructions. Follow all instructions, heed
them and keep them in a safe place.
* Clean only with a damp cloth.
* Do not block any of the ventilation openings. Install in accordance with the
manufacturers instructions.
* Do not place objects filled with liquid on this apparatus.
* Do not defeat the safety purpose of the grounding type plug. A grounding plug has two
blades and a third grounding prong. The third prong is provided for your safety. When
the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
* Protect the power cord from being walked upon or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
* Only use attachments/accessories specified by the manufacturer.
* Unplug this apparatus during lightning storms or when not in use for a long time.
WARNING - TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
DO NOT REMOVE COVERS. NO USER SERVICEABLE PARTS INSIDE - REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS EQUIPMENT MUST BE EARTHED.
IT SHOULD NOT BE NECESSARY TO REMOVE ANY PROTECTIVE EARTH OR SIGNAL
CABLE SHIELD CONNECTIONS TO PREVENT GROUND LOOPS. ANY SUCH
DISCONNECTIONS ARE OUTSIDE THE RECOMMENDED PRACTICE OF BSS AUDIO
AND WILL RENDER THE EMC OR SAFETY CERTIFICATION VOID.
For continued compliance with international EMC regulations, it is important that all
cables be screened, and connected as follows:
•Audio cable screens to their 9026 connector ground.
•Control cable screens to the ground screws adjacent to the connector.
Soundweb 9026 Installation Guide
3
Soundweb
TM
Mechanical Installation
If the unit is likely to undergo extreme vibration through extensive road trucking and
touring, it must be supported at the rear and/or sides to lessen the stress on the front
mounting flange. Use either a ready-built rack tray or mount the 9026 unit between other
units. Damage caused by insufficient support is not covered by the warranty.
To prevent cosmetic damage to the front panel finish, use protective plastic cups under
the rack mounting bolts.
ErrorError
ErrorError
Error
Blinks when a malformed serial
message has been received, or an
error has occurred within the unit.
PowerPower
PowerPowerPower
When illuminated, indicates that the
power supply
is functioning.
ActivitActivitActivitActivitActivityyyyy
Flashes when a command is
being processed.
UserUser
UserUser
User
The unit is operating at a user-
definable serial bitrate.
Front Panel LED Functions
ZoneZoneZoneZoneZone
The unit is operating in zone mode with no presets loaded into it. Voltages presented to the
control port switch stereo pairs of inputs to stereo pairs of outputs, with video following audio.
PresetPreset
PresetPresetPreset
The unit is operating in preset
mode. Voltages presented to
the “Z1” section of the
control port will recall
presets from memory.
Device ADevice ADevice ADevice ADevice A
The unit is addressed as device A.
Device BDevice BDevice BDevice BDevice B
The unit is addressed as device B.
SoundwebSoundwebSoundwebSoundwebSoundweb
The unit is operating at the correct
serial bitrate for connection to a
Soundweb unit (38400bps)
