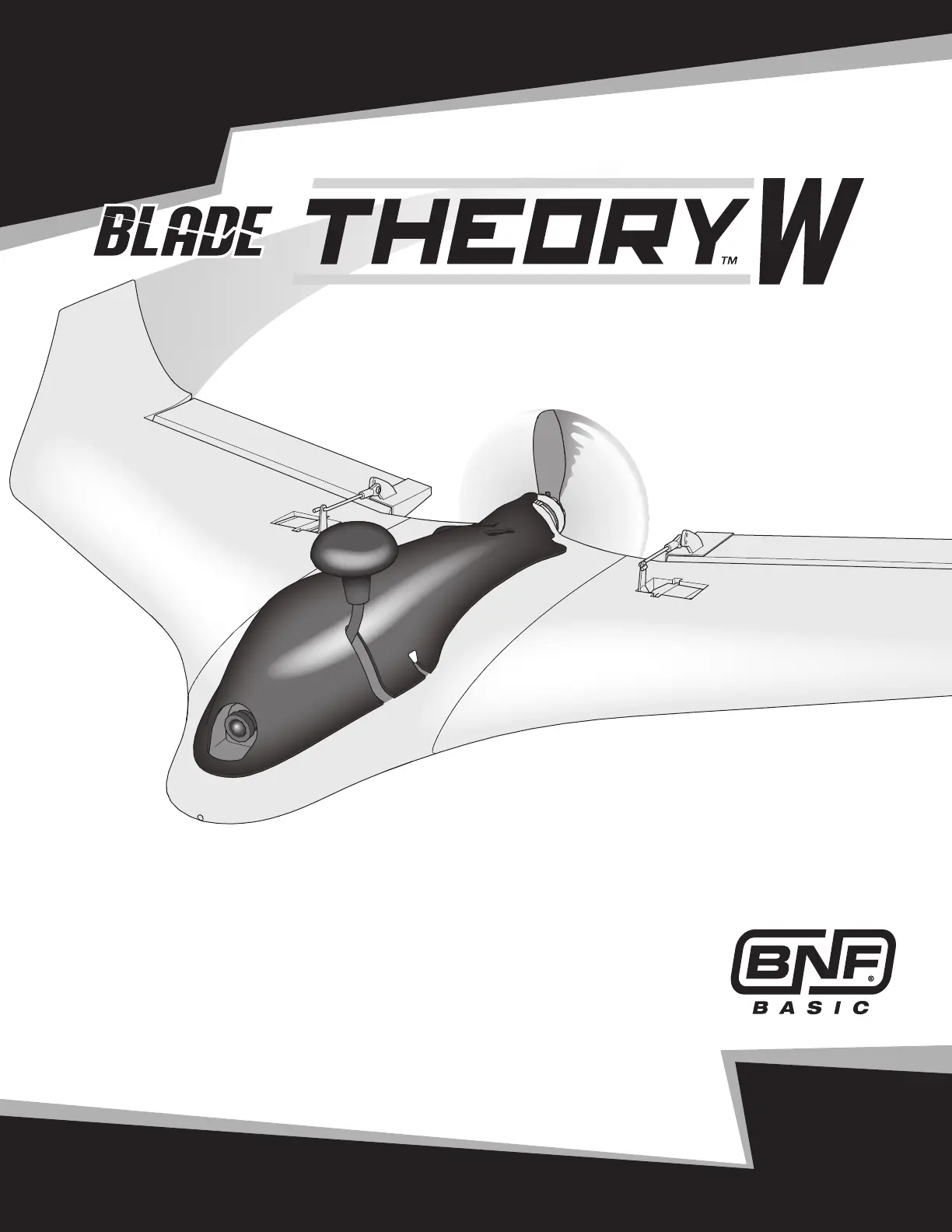

Instruction Manual
2
EN
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffi c and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifi cally designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always move the throttle fully down at rotor strike.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace a Spektrum component found in a Horizon Hobby product, always purchase from
Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and
warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product
in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct
adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual
contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or
use, in order to operate correctly and avoid damage or serious injury.
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of
superfi cial injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit
horizonhobby.com and click on the support tab for this product.
Meaning of Special Language
Safety Precautions and Warnings
As of this printing, you are required to register with the FAA if you own this product.
For up-to-date information on how to register with the FAA, please visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyoufl y.org/.
If you are operating this product in North America, you are required to have an Amateur Radio (HAM) license. Visit www.arrl.org for more information.
3EN
Box Contents:
• Theory™ Type W FPV Wing • Decals (located under the foam packing)
Needed to Complete (FPV Equipped):
• Battery (4S, 1300mAh or 3S, 1300mAh LiPo)
• LiPo compatible charger
• DSM2®/DSMX® compatible, full range transmitter
• 5.8GHz FPV headset or ground station
Needed to Complete (FPV Ready):
• FPV Camera (SPMVC650)
• Video Transmitter
• Video Antenna (SPMVX5802)
• Battery (4S, 1300mAh or 3S,
1300mAh LiPo)
• LiPo compatible charger
• DSM2®/DSMX® compatible,
full range transmitter
• 5.8GHz FPV headset or
ground station
®
Wingspan
30 in (762mm)
Length
14.2 in (360mm)
Flying Weight
16.9 oz (480 g)
Specifi cations
To receive product updates, special offers and more, register your product at www.bladehelis.com.
Table of Contents
First Flight Preparation ..........................................................................................4
Flying Checklist ....................................................................................................4
FPV Ready Version Assembly ................................................................................4
Airframe Assembly ................................................................................................5
Transmitter Setup .................................................................................................6
Flight Battery Installation and ESC Arming.............................................................6
Transmitter and Receiver Binding ..........................................................................6
Control Surface Centering and Throws ..................................................................7
Install the Propeller ...............................................................................................7
AS3X® Control Direction Test .................................................................................7
Balance the Airframe ............................................................................................8
Flight Modes Explained .........................................................................................8
Flying the Theory Type W Flying Wing ....................................................................8
Post-Flight Inspection ...........................................................................................9
Using the Video Transmitter ...................................................................................9
Focusing the FPV Camera ...................................................................................10
Installing an Optional HD Video Camera...............................................................10
Removing the Motor ...........................................................................................10
AS3X Troubleshooting Guide ...............................................................................11
Troubleshooting Guide ........................................................................................11
Parts Explosion ...................................................................................................12
Replacement Parts ..............................................................................................12
Optional Parts .....................................................................................................12
Limited Warranty ................................................................................................13
Warranty and Service Contact Information ..........................................................13
FCC Information ..................................................................................................14
IC Information .....................................................................................................14
Focus Pattern......................................................................................................15
