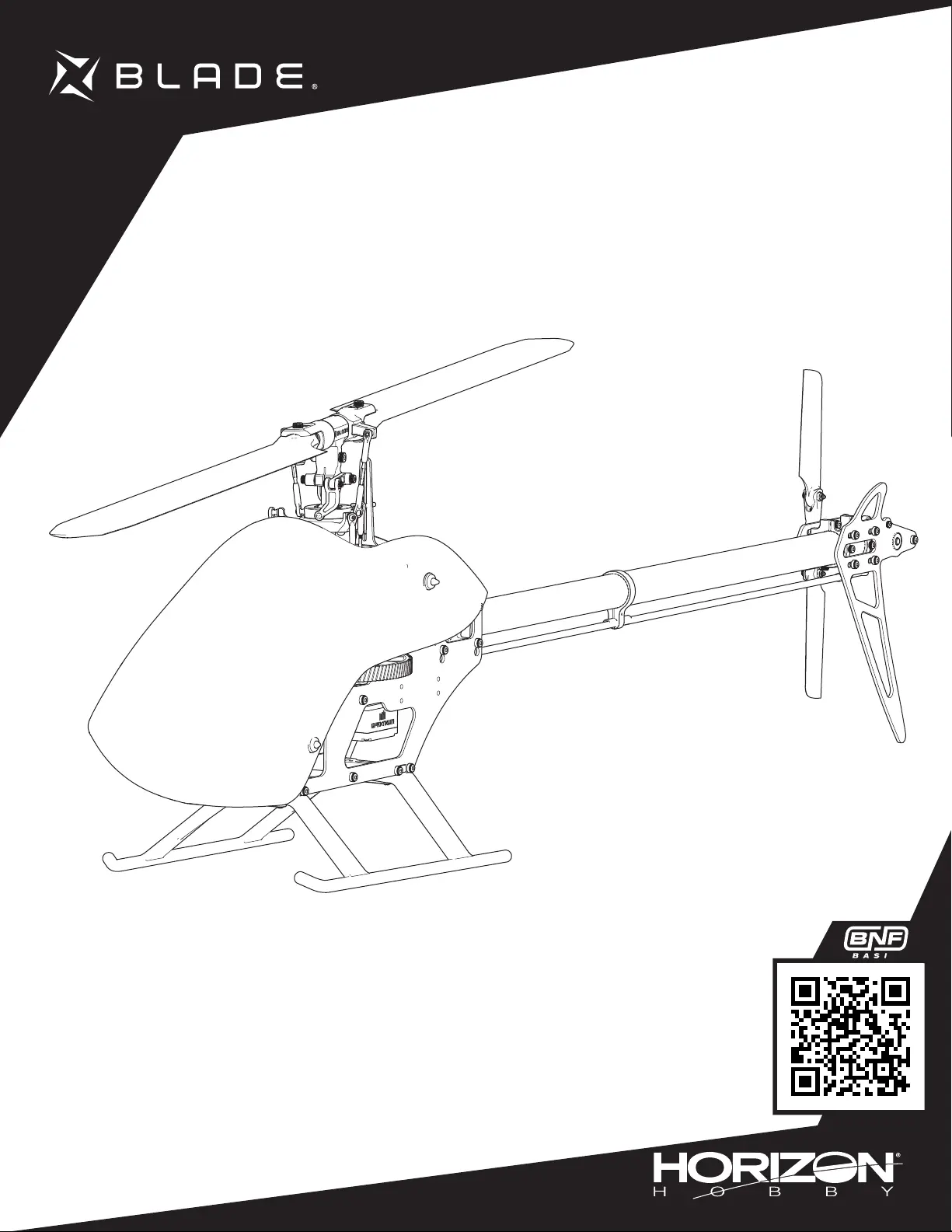

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
Fusion 550
Created 6/23
614044.1
BLH4975, BLH4975C
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EN
Safety Precautions and Warnings
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles, trafc
and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the reach
of children.
• Always avoid water exposure to all equipment not specically designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always activate throttle hold at rotor strike.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING: This is a large model helicopter with carbon ber blades that spin at very high RPM. Always use extreme caution and common sense when
maintaining and operating this product. If you are unsure about ANY function or procedure described in this manual, DO NOT operate. Contact Horizon
Product Support for assistance.
WARNING: Always ensure you are operating the helicopter a safe distance, 45 feet (13 meters), away from yourself and others.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this
Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without
direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This
manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to as-
sembly, setup or use, in order to operate correctly and avoid damage or serious injury.
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability
of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature,
visit horizonhobby.com and click on the support tab for this product.
Meaning of Special Language
2
EN
To receive product updates, special offers and more, register your product at www.horizonhobby.com
Table of Contents
Length 42.5 in (1080mm)
Main Rotor Diameter 49 in (1245mm)
Tail Rotor Diameter 9.8 in (250mm)
Head Assembly (Bags H, A) ...........................................................................4
Frame Assembly (Bags A, F, M, T) ..................................................................5
Tail Assembly (Bags B, M, T) 11 .......................................................................
Flight Controller Mounting Plate 15 ..................................................................
Main and Remote Receiver Mounting 15 ..........................................................
Battery Installation 16 ......................................................................................
Throttle Hold 16 ...............................................................................................
Setup for FC6250HX Flight Controller 16 ..........................................................
Control Tests ...............................................................................................20
Tail Rotor Blade Installation 21 .........................................................................
Main Rotor Blade Installation 21 ......................................................................
Canopy Installation 21 .....................................................................................
Settings for Avian 130A ESC 22 .......................................................................
Flight Guidelines and Warnings 23 ...................................................................
Flying Your Fusion 550 23 ................................................................................
Preight Checklist 23 .......................................................................................
Postight Checklist 23 .....................................................................................
Blade Tracking ............................................................................................23
Post-Flight Inspection and Maintenance 24 ......................................................
Troubleshooting Guide 25 ................................................................................
Limited Warranty ........................................................................................25
Warranty and Service Contact Information 26 ..................................................
Exploded Views .........................................................................................103
Parts List 106 .................................................................................................
Recommended Components 107 ....................................................................
Optional Parts 107 ..........................................................................................
Specifications
3
Recommended Component BLH4975
Kit Only
BLH4975C
Kit + Combo
Motor Brushless Motor 4320-1180Kv (SPMXHM1030) Included Included
ESC* Avian 130A ESC (SPMXAE1130) Required Included
Battery 5000mAh 6S 22.2V Smart G2 50C; LiPo (SPMX56S50) Required Required
Flight Controller FC6250HX Helicopter FBL System (SPMFC6250HX) Required Included
Receiver DSMX Remote Receiver (SPM9745) Required Included
Swash Servos* H6350 Digital Brushless Ultra Torque, High Speed Cyclic
Servo (SPMSH6350), metal geared servos required Required Included
Tail Servo* H6360 Digital Brushless Mid Torque / Ultra Speed Heli
Tail Servo (SPMSH6360), metal geared servo required Required Included
Charger Smart S1400 G2 AC Charger,1x400 (SPMXC2040) Required Required
Transmitter DSM2®/DSMX® Compatible Transmitter Required Required
Components Needed to Complete Tools Needed To Complete
• Medium strength thread-locking compound
(Zap Z42 Thread Lock PAAPT42)
• 1.5mm, 2mm, 2.5mm, 3mm and 4mm hex drivers
• Ball link pliers (BLH100)
• Needle nose pliers
• Digital pitch gauge
• Metric ruler or calipers
• Double-sided servo tape
• Servo Tester
(Spektrum Smart LiPo Battery Checker &
Servo Driver SPMXBC100)
• (Optional) USB interface programming cable
for FC6250HX Flight Controller SPMA3065
• (Optional) ESC Programming Box SPMXCA200
Assembly Guide Legend
Apply NO Thread-locking Compound
Apply Medium Thread-locking Compound
Apply Medium Cyanoacrylate (CA)
Loosely Tighten
Fully Tighten
* The H6350 and H6360 servos are rated to operate at up to 8.4 volts, however the BEC built into the Avian
130A ESC is only rated to power these servos at 6.0 volts or below.
WARNING: Do not set the BEC voltage of the Avian 130A ESC above 6.0 volts when using the
Spektrum H6350 and H6360 servos. Setting the BEC voltage above 6.0 volts may cause the BEC
to become overloaded which will cause a loss of control.
