Seite 1/12

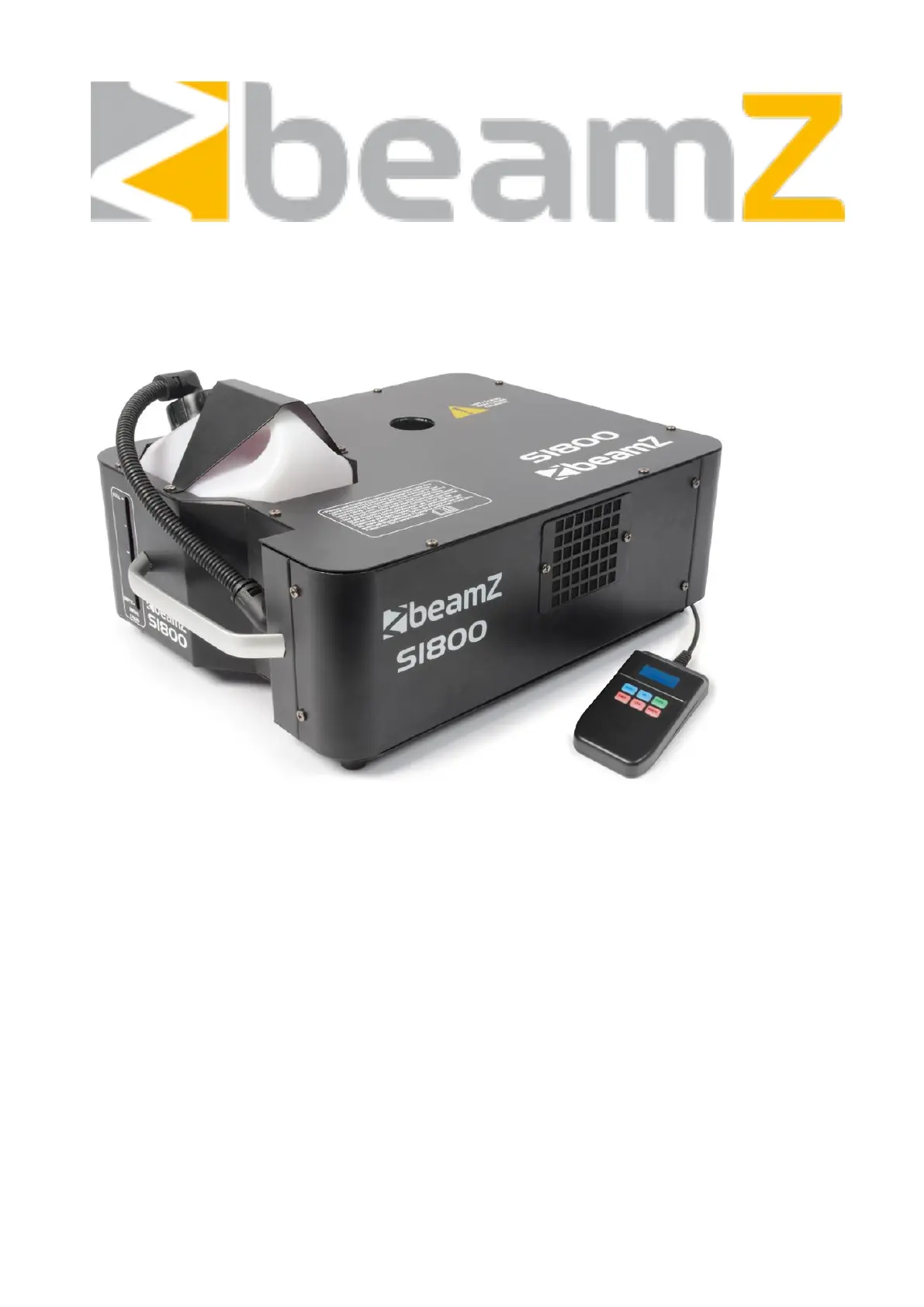

Ref. Nr. 160.493
S1800 DMX
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
BEDIENUNGSANLEITUNG
- 2 -
Warning:
- The smokemachine must be placed at least 100 cm away from inļ¬ammable materials such as curtains, books,
etc. Make sure that the housing cannot be touched by accident.
- For indoor use only.
- During installation, nobody should stand beneath the mounting area.
- Prior to the ļ¬rst use, have the unit checked by a qualiļ¬ed person.
- The unit contains voltage carrying parts. DO NOT open the smokemachine
- Never plug or unplug the unit with wet hands.
- If the plug and/or mains lead are damaged, they need to be repaired by a qualiļ¬ed technician.
- If the unit is damaged to an extent that you can see internal parts, do not plug the unit into a mains outlet. It
needs to be repaired by a qualiļ¬ed technician.
- Only connect this unit to an earthed mains outlet of 230Vac/50Hz .
- Always unplug the unit during a thunderstorm or when it is not in use.
- If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let
the unit reach room temperature prior to use.
- When you unplug the unit from the mains always pull the plug, never the lead.
- In order to avoid accidents in public premises, the local legal requirements and safety regulations/warnings must
be fulļ¬lled.
- Keep out of the reach of children.
Safety
Plug the smoke machine only in an earthed mains outlet or extension cord! ATTENTION: the powercord can only be
replaced by an original replacement, supplied by Tronios. Be careful when ļ¬lling the ļ¬uid tank. First of all, unplug the
mains lead! Then unscrew the cap on the tank and ļ¬ll it by means of a funnel. Only use the original Beamz smoke ļ¬uid
which is environmental friendly and, if used correctly, leaves no residues. Do not obstruct the openings on top of the case
to guarantee a good ventilation. The heating element of the smoke machine generates heat which needs to be removed.
Donāt put any objects on the smoke machine.
Installation and Use
Unpack the fog machine. Do not connect yet the net cable. Connect the lead of the manual control with the 3-pin plug at
the rear of the smoke machine. Fill the ļ¬uid tank by means of a funnel. Plug the unit into a mains outlet. Thus the heating
element is automatically switched on. Depending on the room temperature, it takes about 6 minutes until the working
temperature is reached. Then the thermostat is clicking and the LED on the manual control lights up. Push the switch once
and the smoke machine will produce a nice thick fog. Once the smoke machine has reached its working temperature (the
LED is lit) the smoke machine can produce continuously fog during max 1 minute. After this period of time, the fog
generator is cooled so much down that the thermostat switches oļ¬. Wait a few minutes until the working temperature is
reached again. It is recommended to produce smoke with small pauses in between so that the temperature is maintained
and the thermostat doesnāt switch oļ¬.
- 3 -
Location
Select a location where it is easy to ļ¬ll the tank. It is also possible to hang the unit by means of the supplied holder and
ļ¬xing screws.
Switching the unit oļ¬
Switch the unit oļ¬ by unplugging it from the mains. Otherwise the 1800W heating element will draw unnecessarily current.
Settings
Press the MENU button on the remote control to select the various functions . Press the UP and DOWN buttons to
set the various functions . After 10 seconds, the settings are automatically transferred and the unit is ready for use.
- Man Vol Out: amount of smoke in % , when using the LOCK button on the remote
- Set Interval : the time between the outputs in seconds , using the TIMER function on the remote
- Set Duration : the length of the outputs in seconds , using the TIMER function on the remote
- Volume Out: no function with this machine
- DMX512 # 000-512 : Start Address when using a DMX controller
DMX operation
Connect the machine directly to a DMX controller or DMX DMX loop with multiple effects. The machine uses a
3-pin XLR connector for DMX connection.
Address Setup: Press the MODE button several times until DMX512 # ... is displayed, use the UP / DOWN buttons
to set the start address. The start address is deļ¬ned as a ļ¬rst channel to which the machine will respond. Verify that
there are no overlapping channels used!
Note: It is necessary to always ļ¬nish with a 120 Ohm termination plug for proper data transmission DMX loop..
Maintenance
Reļ¬lling the ļ¬uid reservoir should be done carefully. Remove the plug from the mains ļ¬rst! Then unscrew the cap of the
reservoir and ļ¬ll it by means of a suitable funnel. Use only the original Beamz smoke liquid. This ļ¬uid is environmentally
friendly, biodegradable and leaves no residue when used correctly. Make sure the smoke liquid to become contaminated,
close the cap of the liquid smoke can and after ļ¬lling tank right.
After 40 hours, the smoke machine must be cleaned to avoid deposits in the machine, pump and heater.
Clean procedure: Run clean procedure in a well-ventilated area
ā¢ Remove smoke liquid from the tank, add cleaning solution to tank
ā¢ Switch smoke machine and wait until it is warm up
ā¢ Press the button to switch the liquid pumped through the machine
ā¢ Perform the above operation until the tank is empty
ā¢ Fill the tank with liquid smoke
CHANNEL
VALUE FUNCTION
1
0 ā 100% Smoke level
