SEQUEL® 6051/6052
LIFT DESK
H5 1/4-20 x 12mm Screw x 6
Tool Required:
Phillips Screwdriver
H2 #6 Wood Screw x 6
H3 M6 x 12mm Screw x 12
H8 Glass Bumper x 3
C9 Grommet Cover x 1
H9 Dual Lock Dot x 8
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Sequel® Lift Desk is designed for indoor use on level floors. Clean glass
with glass cleaner, and steel parts and wood veneer with a moist cloth.
Your Sequel® Office furniture is engineered for easy assembly. Carefully
follow this procedure to prevent any damage. Do not use power tools
for assembly of this product.
Step 1

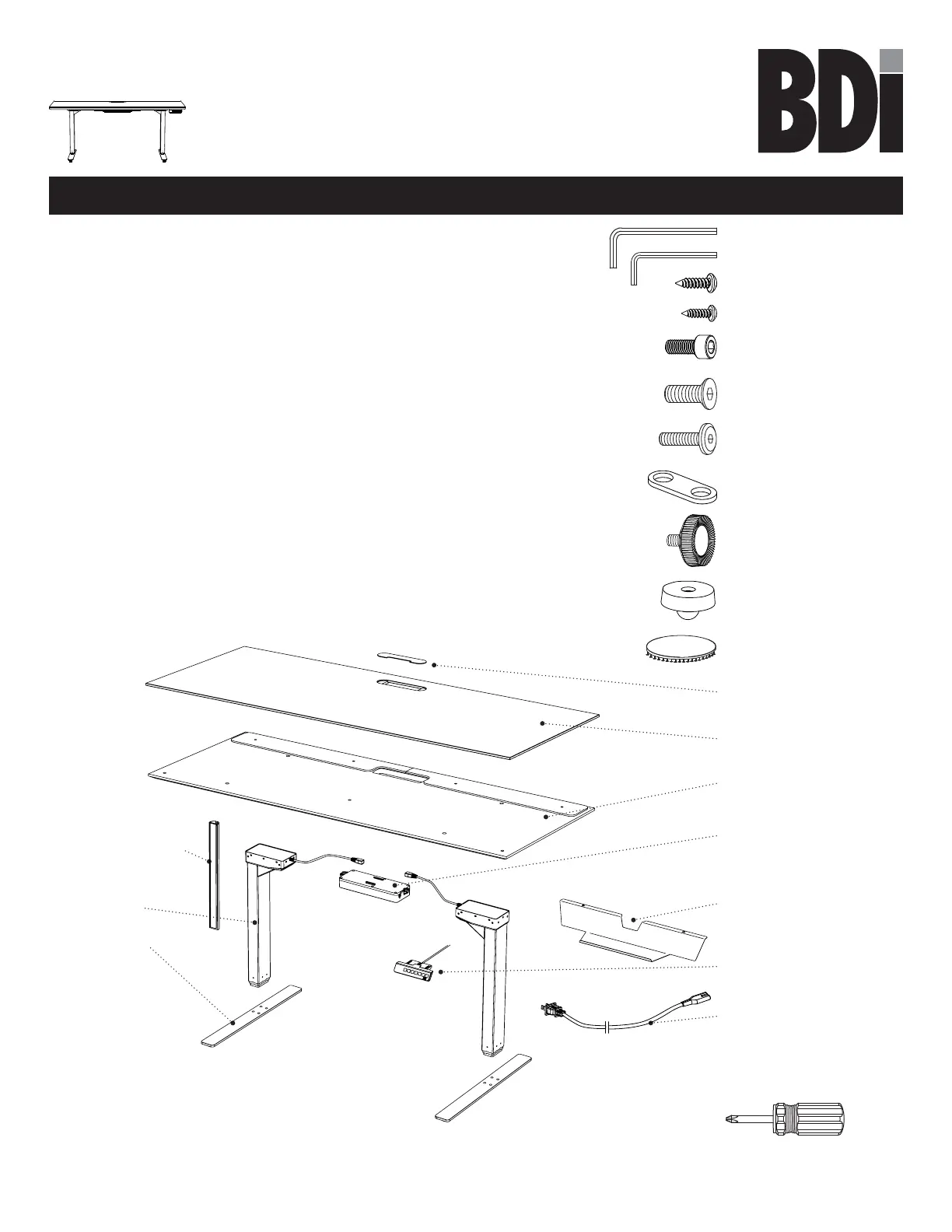

Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing hardware
pieces, please contact BDI Customer Service at customerservice@bdiusa.
com. For all other concerns, please contact your BDI retailer.
H7 Leveler x 4
H6 Cord Clip x 6
H1 #10 Wood Screw x 4
T1 5mm Hex Wrench
H4 M6 x 16mm Screw x 8
OWNER’S MANUAL
bdiusa.com
customerservice@bdiusa.com
SEQUEL 6051/52
LIFT DESK
2
Step 2 - Install Control Module and Keypad
Lay top panel upside down on a soft surface (like carpet). Attach Keypad C4 on the desired side (left or right)
with 2 Wood Screws H1. Orient the Control Module C3 so that the Keypad port is facing the Keypad side and
secure between the 2 steel rails with 2 Wood Screws H1 as shown. Route the Keypad cord into the groove in
the panel and through the hole in the metal frame.
User’s left
hand side
User’s right
hand side
C3 C4
H1 x 4
bdiusa.com
customerservice@bdiusa.com
SEQUEL 6051/52
LIFT DESK
3
Step 3 - Secure the keypad cord into the groove using 6 cord clips and 6 wood screws H6 H2. Connect
keypad cord into the Control Module Port (labeled HS) and bundle the slack with the Hook & Loop Tie.
H2 x 6
H6 x 6
Groove for Keypad Cord
Hook & Loop Tie
