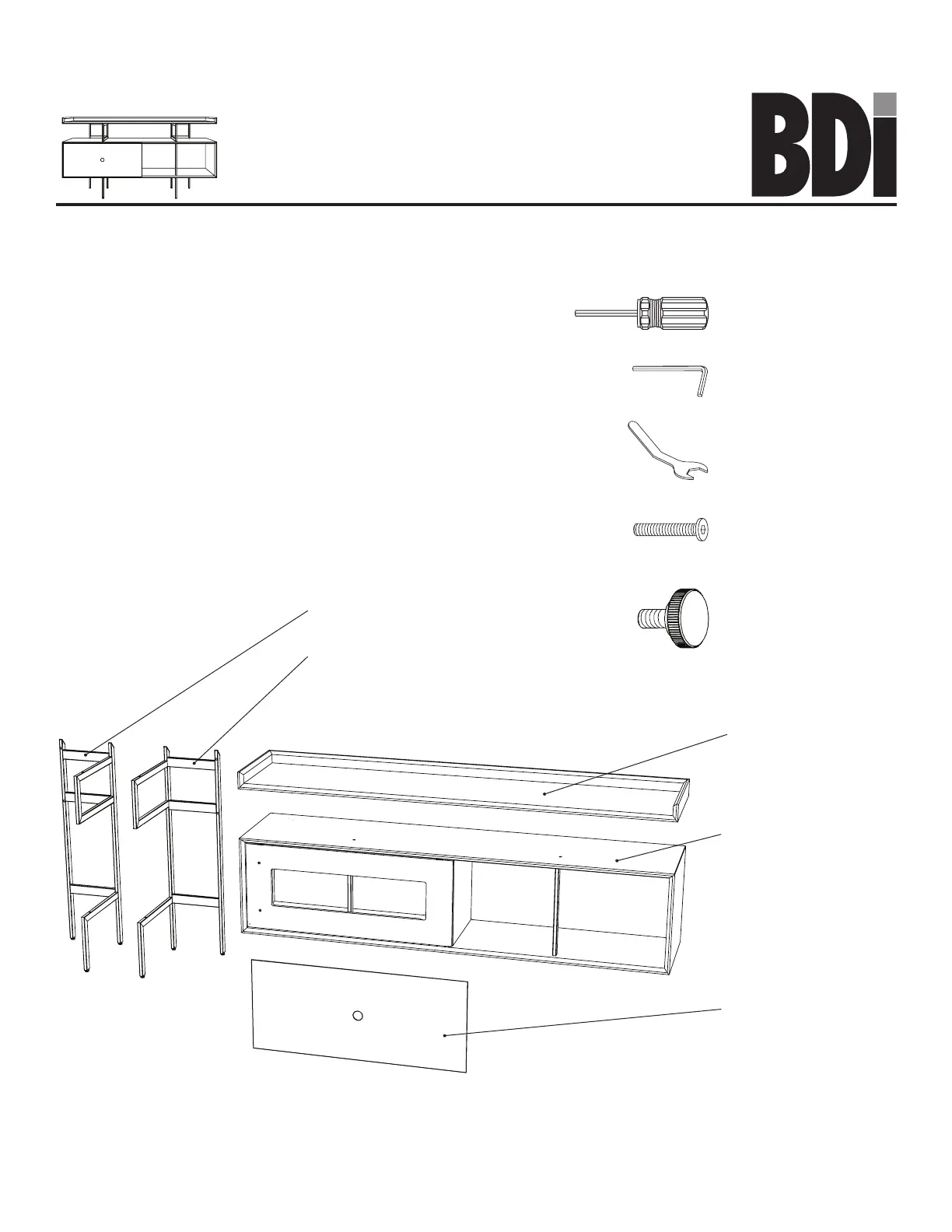

A1 Left frame x 1
A2 Right frame x 1
C1 Shelf x 1
C2 Cabinet x 1
C3 Door Facia x 1
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your BDI
products. Register today, and you will be entered to win free a BINK table
from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Margo Console is designed for indoor use on level floors.
Clean wood veneer and steel parts with a moist cloth.
Margo is engineered for easy assembly. Carefully follow this procedure to
prevent any damage. Do not use power tools for assembly of this product.
Step 1
This unit ships in 3 cartons (metal frames, cabinet & shelf, and sliding door
front) Unpack all cartons and associated hardware bags. Identify the parts
listed below. The assembly workspace should be a non-marring surface
such as carpet. For missing hardware pieces, contact BDI Customer
Service at: customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
bdiusa.com
customerservice@bdiusa.com
Designed by Jeff Bare.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Margo & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2019, BDI
Made in China. 08.06.2019 V4
MARGO5211
Console
H1 M6 x 38 mm
Pan Head Screw x 10
T1 Hex Driver x 1
H3 Thumb Screw x 2
T3 Leveler wrench x 1
T2 Small Hex wrench x 1
bdiusa.com
customerservice@bdiusa.com
MARGO 5211
Console
2
Step 2 - Making sure the levelers are facing down, place off the wall andthe left and right frames at least 2'
30.5" (78cm) apart in the orientation shown below. Use the provided to accurately space the frames. template
Step 3 - shelf C1 shelf C1 pan-head screws Carefully place on top of the frames. Attach to each frame with
H1 and partially tighten with hex driver T1. DO NOT tighten the screws completely until the cabinet is
also positioned and installed.
H1 x 4 T1 Hex Driver
30.5" (78cm)
at least 2 feet
bdiusa.com
customerservice@bdiusa.com
MARGO 5211
Console
3
Step 5 - pan-head screws H1 hex driver T1Secure the back of the cabinet to the 2 frames using and .
Tighten ALL SCREWS for the shelf and cabinet at this time.
Step 4 - Make sure the cabinet is oriented right side up with door track on top. With help from another person,
carefully slide the cabinet into the opening in the frame and center it so that the 2 holes on top of the cabinet
are directly under the frame. Slide the cabinet all the way back and attach to the frame as shown using pan-
head screws H1 hex driver T1. DO NOT tighten screws completely yet. and partially tighten with
H1 x 4
T1 Hex
Driver
Door track
on top
Holes on left
2 Person skTa
H1 x 2 T1 Hex driver
