Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to
your BDI products. Register today, and you will be entered to win
free a BINK table from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Elements Media Cabinet is designed for indoor use on level
floors. Clean wood veneer and steel parts with a moist cloth.
Elements is engineered for easy assembly. Carefully follow this
procedure to prevent any damage. Do not use power tools for
assembly of this product.
Step 1

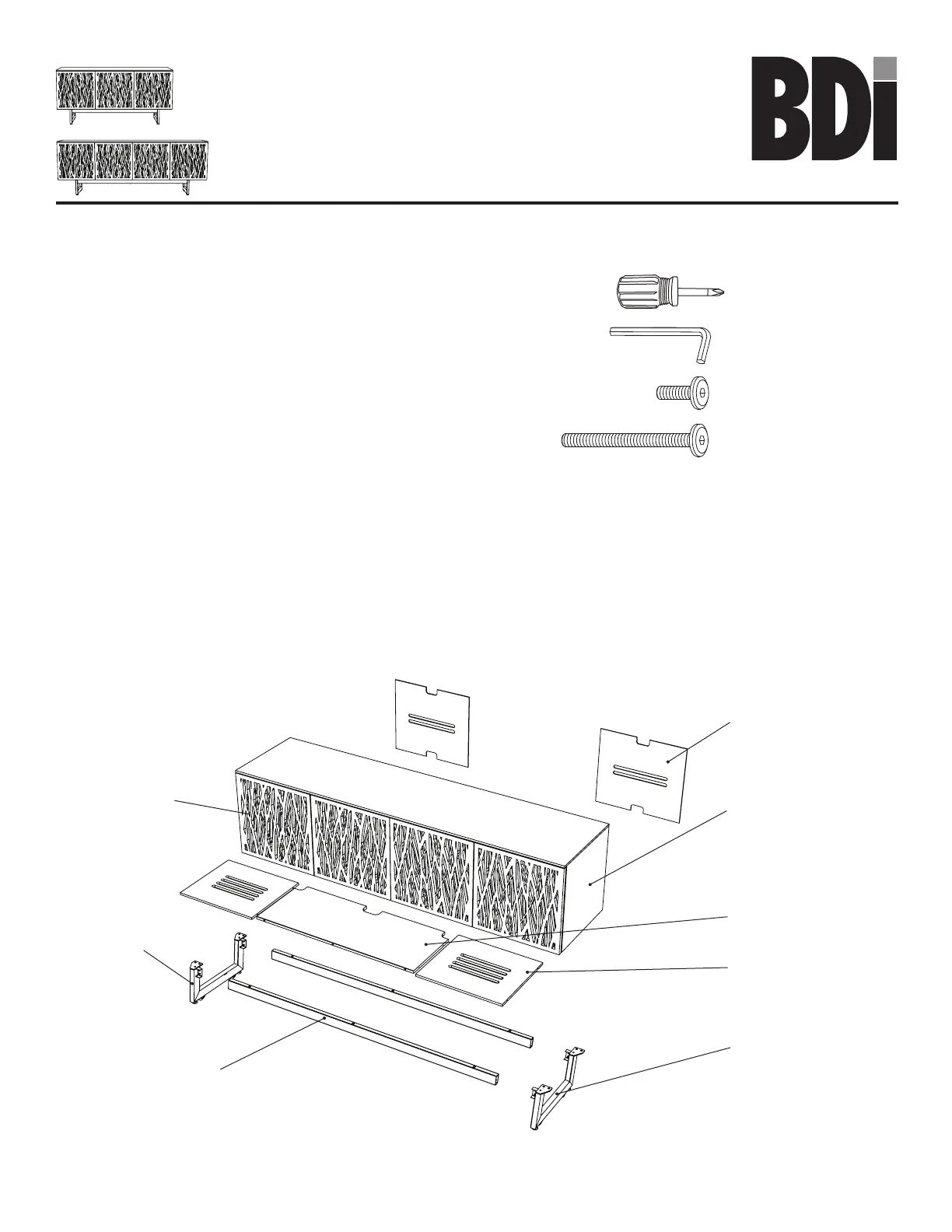

Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as
carpet. For missing hardware pieces, contact BDI Customer Service at: customerservice@bdiusa.com.
For all other concerns, please contact your BDI retailer.
Designed by BDI Studio.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Elements & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 03.27.2017 7 V2
ELEMENTS 8779__ME__
4 BAY MEDIA CABINET
ELEMENTS 8777__ME__
3 BAY MEDIA CABINET
A1 Cabinet x 1
[quad (shown)
or triple wide]
C5 Back Panels x 2
C4 Side Shelf x 2
C3 Middle Shelf x 1
bdiusa.com
customerservice@bdiusa.com
T2 Hex Wrench x 1
H1 1/4-20 x 15 mm
Machine Screw x 16
H2 1/4-20 x 63 mm
Machine Screw x 6
T1 Phillips Screwdriver x 1
Note: Door
pattern may
be different
A2 Base Rails x 2
A3 Left Leg x 1
A4 Right
Leg x 1
Your Elements cabinet includes an air-purifier pouch containing chemical-free, non-toxic, activated carbon.
This pouch is designed to absorb and remove traces of odor which may remain as a result of the unique
manufacturing processes used to create Elements. While any such odor will naturally dissipate over a period
of time, the pouch is provided to accelerate the effect. Please feel free to utilize the pouch inside the cabinet
indefinitely or transfer it to any other area in the home where you wish to manage moisture and odors. If you
choose to use it elsewhere (shoe racks, closets, basements, etc.), please be aware that the pouch can be
“re-charged” by placing in direct sunlight for 1-2 hrs after 2-3 months of continuous usage.
bdiusa.com
customerservice@bdiusa.com
ELEMENTS 8777/8779__ME__
MEDIA CABINET
2
Step 3 Quad - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. -do not remove blocking above the shelves. Attach the to the Caution base cabinet with 8 Screws
H1 and 6 Screws H2 using Hex Wrench T2. NOTDo fully tighten until all screws are started.
T2
Step 2 - Build Base Assembly
Slide into Legs A3 & A4 Base Rails A2 and attach by using Hex Wrench T2 Screw H1 NOTE: You and 8 .
MUST align arrows on Base Rails A2 with arrows on Metal Legs E for proper orientation.
A4
A3
A2
A2
¨
¨
¨
¨
H1
H1
H1
H1
2 Person Task
H2 x 6
H1x 8
bdiusa.com
customerservice@bdiusa.com
ELEMENTS 8777/8779__ME__
MEDIA CABINET
3
Step 3 Triple - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. Attach the to the base cabinet with 8 Screws H1 and 6 Screws H2 Hex Wrench T2. NOTusing Do
fully tighten until all screws are started.
2 Person Task
T2 H2 x 6
H1x 8
Step 4 Quad Only - Adjustable Shelves
With help from another person, carefully rotate your Elements Media Cabinet onto its feet. The shelf pins located
inside all three cabinet spaces may be repositioned using Screwdriver T1, allowing you to raise or lower
Middle and Side Shelves C3 and C4 to the desired level. 2 Person Task
C3
C4
C4
T1
