Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to your
BDI products. Register today, and you will be entered to win free a BINK
table from BDI: www.bdiusa.com/register
Placement and Maintenance
Corridor® Media furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer with a
moist cloth.
Your Corridor® Media furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace
should be a non-marring surface such as carpet. For missing
hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
bdiusa.com
customerservice@bdiusa.com
CORRIDOR® 8175
MEDIA CABINET
B1 Hex Wrench x 1
A Phillips Screwdriver x 1
D 1/4-20 x 10 mm
Machine Screw x 16
H M4 x 35 mm
Machine Screw x 4
I Door Pull x 2
B2 Hex Wrench x 1
G 1/420 x 60 mm
Machine Screw x 4
E Metal Leg x 2
F Metal Rail x 2
J Rubber Bumper x 7
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 06.28.2016 V3

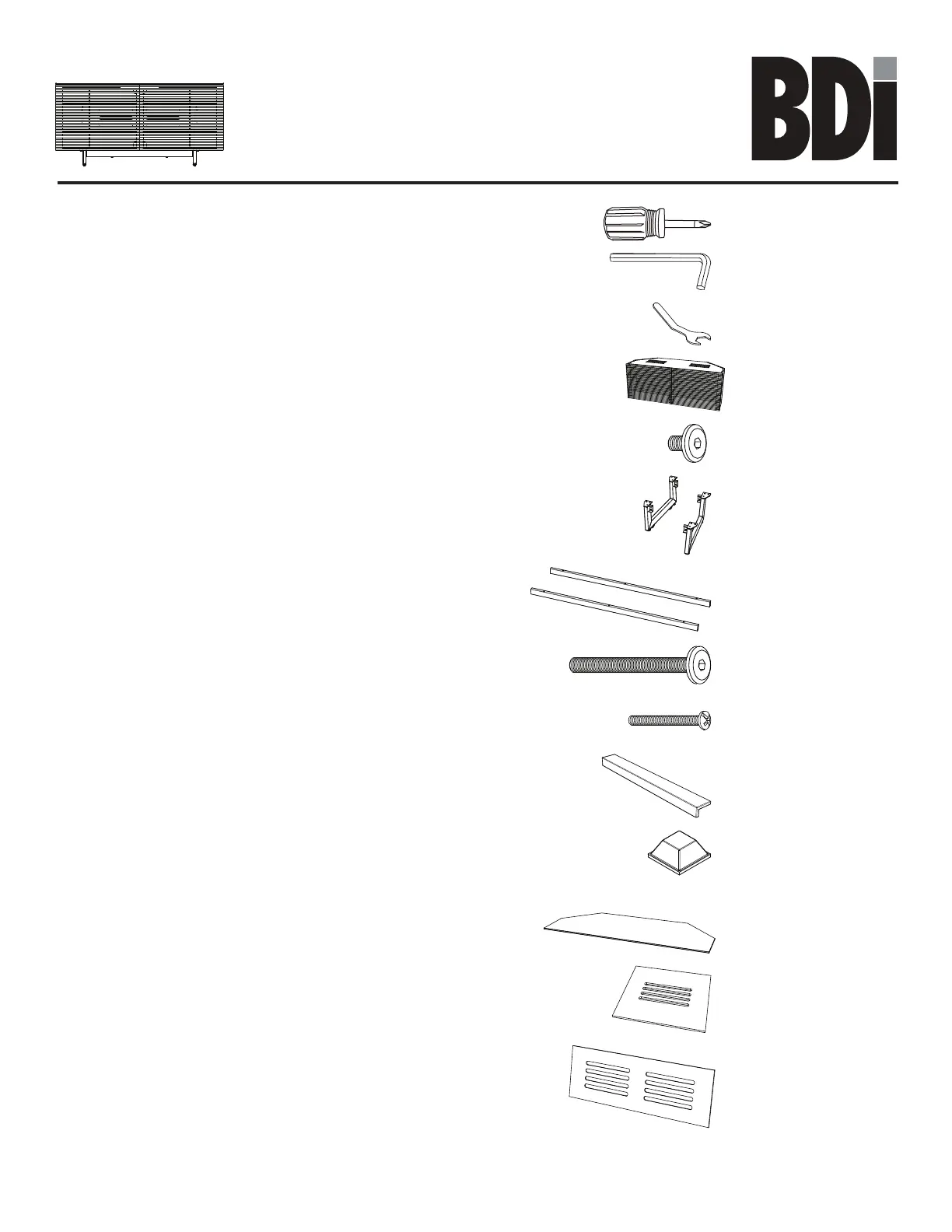

C Cabinet x 1
K Glass Top x 1
L Adjustable Shelf x 2
M Back Panel x 1
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 8175
MEDIA CABINET
2
Step 2 - Build Base Assembly
Slide intoMetal Leg E Metal Rail F and attach by using Hex Wrench B1 Screw Dand .
Step 3 - Cabinet C Hex Wrench B1Carefully lay on its back. Using , attach the base assembly to the bottom
of the Cabinet C with andScrew D Screw G. *Note: Each of the metal legs has levelers that can be adjusted
using the Hex Wrench B2.
DD
DD
E E
F
F
¨
¨
¨
¨
D x 8
D
D
D
G
G
G
C
G x 4
D x 8
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 8175
MEDIA CABINET
3
Step 4 - Install Door Pulls and Rubber Bumpers
Position the cabinet upright and install Door Pulls I using Screw H and Screwdriver A. Adhere Rubber
Bumper J at least one (1) inch from edges of the cabinet and one centered as shown below.
Step 5 - Install Glass
Place Glass Top K Cabinet C on top of . Position glass flush with cabinet front doors.
K
C
J
J
J
J
JJ
HH
I
J
