Before you start to use this device, please check if there’s anything

missing in the package, and contact your dealer of purchase to

claim for missing items:

Package Contents:

1x 7W211 WiFi Repeater

1x 1m Ethernet cable with RJ45 connector

1x Quick Installation Guide

Wireless-N WiFi Repeater 300M

Quick Installation Guide

Model 7W211：

LED indicators’ Status Description:

WPS Button

Ethernet

Reset Button

WLAN LED

WPS LED

Ethernet LED

Power LED

Euro plug

Cautions:

1. Disconnect the device in thunderstorms in case of lightning damage.

2. Keep far from heat source and ensure ventilation.

3. Keep waterproof in the storage, transportation and operating environment.

Indicator Name

Power Status Indicator

Wireless Status Indicator

WPS Status Indicator

Ethernet Status Indicator

Green On Get Powered

Green slow blink Wireless Function Launched

Green fast blink

Not bright

WPS Function Launched

Not use or have

completed the connection

Green fast blink

Green On

Data Transmission via Ethernet

Ethernet Connected

Data Transmission via wireless

Status Description

Reset: If need to reset the Repeater, press and hold RESET button for 3-5

seconds, release until all other LED are off except Power LED.

Note: Please check whether the WiFi-Repeater accord with factory default

settings once you can’t download http://192.168.2.1. If you are still not sure

what reasons, you can reset the WiFi-Repeater, just need to press the reset

button for 3-5 seconds, then try again.

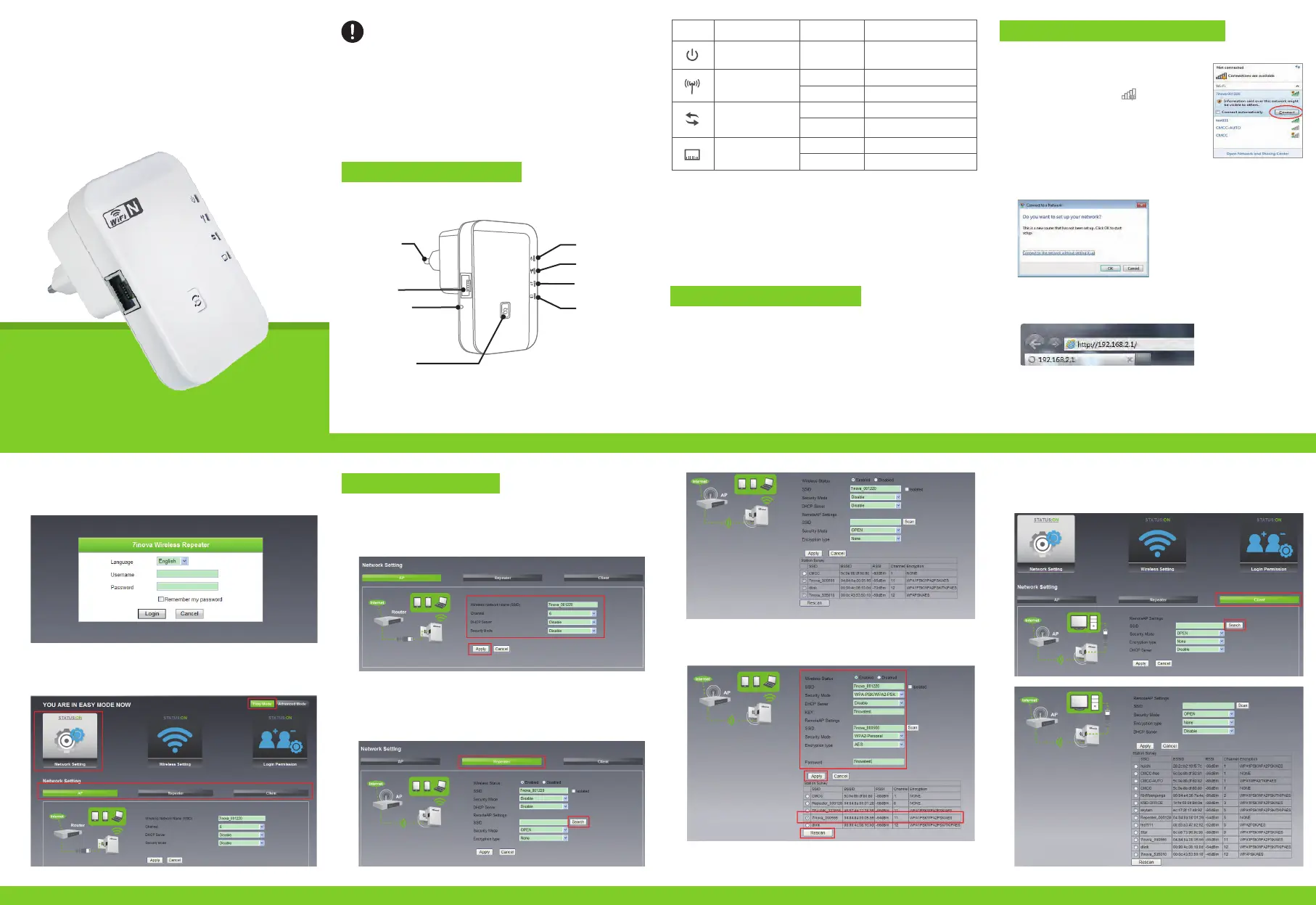

Appearance Introduction

1 Computer Configuration

3 Configuration Mode

2 Connect To Wireless Network

1.1 Click “Start→Control Panel→Network and Internet→Network and Sharing

Center→Change adapter settings→Wi-Fi(right click)→Properties”

3.1.1 Follow process 2.3 to 2.5.

3.1.2 Select “ ” and enter the information what you want to set up wireless AP

information and password, then click “ ”, wait for 3~5 seconds it complete.Apply

3.1 Configure AP Mode

3.2.1 Follow process 2.3 to 2.5.

3.2.2 Select “ ” then click on “ ”.Repeater Search

3.2.3 Select wireless which you want to connect and enter the password (if wireless don’t

have password is “None”), then enter the wireless information what you want to set.

3.2.4 Then click “ ” and wait for 3~5 seconds it is complete.Apply

3.2 Configure Repeater Mode

3.3.1 Follow process 2.3 to 2.5

3.3.2 Select “ ” then click on “ ”Client Search

3.3 Configure Client Mode

2.6 After logging in click “ ” and then click “ ”, you Easy Mode Network Setting

will see 3 modes: AP Mode, Repeater Mode and Client Mode

2.1 Pulg the Wi-Fi Repeater to a wall socket.

2.2 Click on the network icon( ) on the right

bottom of your desktop. You will find the signal

from the Wi-Fi Repeater. Click on “ ” Connect

and wait for a few seconds.

2.3 Connect to a Network Connect to the When shows: “ ”, please click “

network without setting it up”

2.5 The login screen below will appear. Enter the “ ” and “Username Password”

then click “ ” to login. The default Username is “ ” and PasswordLogin admin

is “ ”.admin

2.4 Open web browser and type http://192.168.2.1 in the browser’s address

box. This number is the default IP address for this devices.

1.2 Double click “Internet Protocol Version 4(TCP/IPv4)”

1.3 To set up the computer IP 192.168.2.x (x arbitrary integer between 2~252),

subnet mask of 255.255.255.0, Click “ ”. Back to the last interface and OK

click “ ”OK

01 Wireless-N Repeater Wireless-N Repeater Wireless-N Repeater02 03

05 Wireless-N Repeater04 Wireless-N Repeater Wireless-N Repeater Wireless-N Repeater06 07

1) Restore the 7W211’s configuration to its factory default settings.

(With 7W211 powered on, use a pin to press and hold the Reset

button for about 3-5 seconds before releasing it).

2) To log in the Web Management page, use the default user name and

password: admin, admin. To connect to the Wireless Network, use

the default password on the label.

3) Try to configure 7W211 once again by following the instructions in

the previous steps of the QIG.

What can I do if I forgot my password?

Appendix: Troubleshooting

3.3.3 S o t s f ele wireles whichct s you want t connec andt en er the pas word (i

wireless don’t have password is “None”)

3.3.4 Then click “ ” and wait for 3~5 seconds it is complete.Apply

5.2 Wireless Security Configuration

4 Reconnect to Repeater

4.1 Click “S Ctart→ontrol Panel→Network ter and In net Net rk→wo and Sharing

Ce tern →Change adapter sett ings→Wi-Fi igh(r t cli opck)→Pr erties”

5 Configuring via Web Browser

5.1 Wireless Base Configuration

4.2 Internet Protocol Version 4(TCP/IPv4)Double click “ ”

4.3 a P a auto i y DSN S “elect Ob in ta n I ddress mat call ” “and Ob in ta

server ress mat ca add auto i lly”. Cli ac he lack “ ”OK . B k to t st

in er ace and clit f ck “ ”OK

4.4 3 Configuration ModeSelect the wireless network name configured in “ ” ,

click “ ” button.Connect

4.5 If you encryp ed wireles ne wor in t s t k “3 C f M eon igu ion rat od ” , the following

mes age will be di playeds s on web browse r, fill sin pas word, k clic “OK”

Please click “Advanced Mode → ireless Settings → W Wireless Basic

Settings” located at the web management interface, the following

message will be displayed on your web browser:

Y f o e ou could con igure the minimum number f Wireless s ttings for

communication, such as SSID and Channel. The Access Point can be set

simply with only the minimum setting items. Please click “Adva cen d Mode → Wi lre ess ett S ings → Wi lre ess Security

S setting ” cat a lo ed t the web managemen in ert t face he ollowing mes age, t f s

will be displayed on our y web brow er s :

Setup the wireless security and encryption to prevent from unauthorized

access and monitoring. Supports 64/128-bit WEP, WPA-Personal, WPA2-

Personal encryption methods

5.3 Change Management password

Default password of Wireless Repeater is “ ”, and it’s displayed on admin

the login prompt when accessed from web browser. There’s a security risk

you don’t change the default password, since everyone can see it. This is

very important when you have wireless function enabled.

To change password, please follow the following instruction:

P selea click “Ad nva ced M e od → System Tools → User Passwo d r Cha eng ”

menu on the web management interface, the following message will be

displayed on your web browser:

5.4 Firmware Upgrade

T st ohe sy em s ftware ed us by thi repea er alleds t is c a “s firm arw e”, ju list ke

any applications on your computer, when you replace the old application

with a new one, your computer will be equipped with new function. You

can also use this firmware upgrade function to add new functions to your

repeater, even fix the bugs of this repeater.

Please click “Advanced Mode → System Tools → System Upgrade”

located at the located at the web management interface, then the

following message will be displayed on your web browser.

5.5 Settings Backup and Restore, Factory Default

You can backup all Setting of this repeater to a file, so you can make

several copied of repeater configuration for security reason.

To b up oack r orest re re peater sett ease ing, pl follow the f uollowing instr ction:

Please click “Adva cen d Mode → System Tools → Backup and Rec veryo ”

and “Advanced Mode → System Tools → Restore Factory Settings”

located at the web management interface, then the following message will

be displayed on your web browser:

If you want to keep original password unchanged, click “ ”.Cancel

Click “ ” button, the WiFi Repeater will become effectiveSave

Click “A yppl ” button, the WiFi Repeater will become effective.

Click “Browse” button first, you’ll be prompted to provide the filename of

firmware upgrade file. Please download the latest firmware file from our

website, and use it to upgrade your repeater.

After a firmware upgrade file is selected, click “ ” button, and the Upgrade

repeater will start firmware upgrade procedure automatically.

The procedure may take several minutes, please be patient.

Wireless Mode

Channel

SSID Broadcast

Supports 11b/g/n mixed modes

Wireless Signal On/Off

6(default)

Wireless Status

SSID

Wireless On/Off

Main Service Set Identifier.

It’s the “name” of your wireless network.

Back up

Browse

Restore All Settings

P ”Back ress up” bu on ou can please avett , y s i at s ano hert

filename for di fferen versions and keept , i a fe .t in sa place

P ”B o a s fress rowse” t pick previou ly-saved con igura ion ilet f

f rom your compu ter, and he cli t ck “S . ave” After he repla ed t c

by the file you jus uploaded t .

Click “Restore All Settings” button to remove all settings

Note: Never in errup het t t upgrade procedure by closing he web t browser or ph ysically

di onnec your compu ersc t t from repea ter. If the irmware f you upgrade is corrup he t, t

f irmware upgrade will fail and you may have, to t tre urn thi repeas er he dealer t to of

purchase to ask for help. (W ty iarran voids f you in errup t ted he upgrade t pro edure)c .

Click “S eav ” and “Resto A sre ll Setting ” button. The repeater will restart.

09 Wireless-N Repeater08 Wireless-N Repeater Wireless-N Repeater Wireless-N Repeater10 11

13 Wireless-N Repeater12 Wireless-N Repeater Wireless-N Repeater Wireless-N Repeater14 15

300Mbps Wireless Repeater

FW RVE: 7R152_V1.0

Click “A yppl ” button, the WiFi Repeater will become effective.
