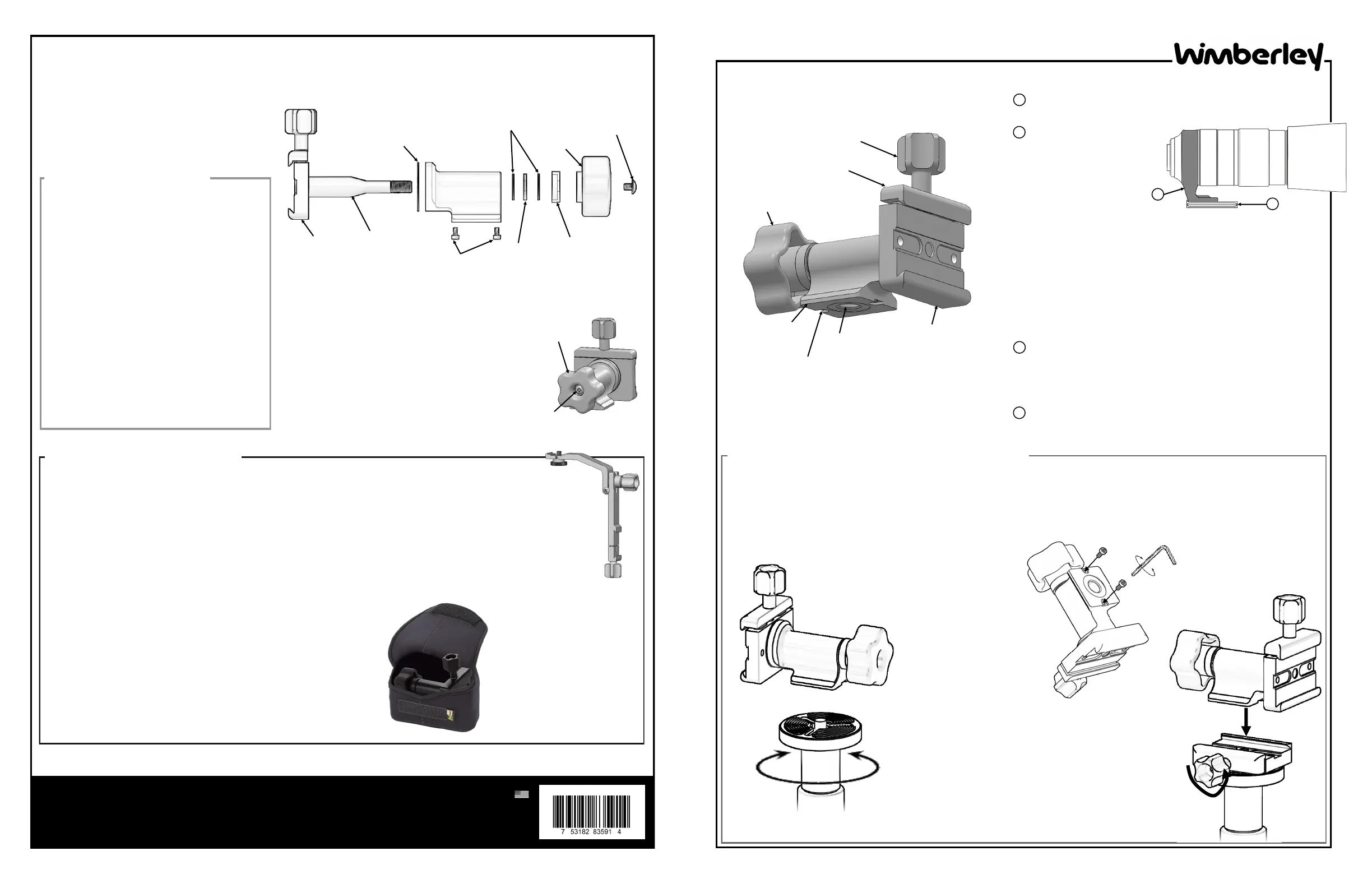

INSTRUCTIONS: Wimberley MonoGimbal Head (MH-100)
Page 1
Wimberley MonoGimbal Pouch 130: -PO-
The Wimberley MonoGimbal Pouch fits this head. Custom manufactured
by LensCoat, the soft neoprene protects the head from scratches during
traveling and in the field. A pull cord closure allows for quick and easy
access. The Pouch flattens for easy storage.
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 888 665 2746 - - - (USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
Wimberley, Inc. ©2019, All Rights Reserved Revised 190930
Made in USA
MAINTENANCE & TROUBLESHOOTING:
It is important to read these instructions.
Setting up the MonoGimbal Head is not difficult, but reading these
instructions will allow you to get the most out of the product.
Thank You! Your observations and suggestions are welcome. We will continue to refine the MonoGimbal and instructions in response to customer feedback.
The MonoGimbal has been designed and constructed to handle many maintenance free years in the field.
There should be no need for any routine maintenance.
IF YOU HAVE A PROBLEM WITH
YOUR MONOGIMBAL HEAD:
Few things are likely to go wrong with the Wimberley
MonoGimbal Head However, if the head is in need of
repair, we ask that you return the head to us for inspec-
tion and service. (International customers should con-
tact the dealer who sold you the MonoGimbal Head).
If you need a head for a trip or shoot while yours is be-
ing repaired, let us know and we can send you one on
loan. If the head is faulty, we will fix it free of cost. If the
problem arises from extreme use, abuse or accident,
we will repair the head for a reasonable fee.
EMERGENCY REPAIRS:
We discourage you from disassembling this unit without
direct instruction from us. Any damage to the head
resulting from disassembly will not be covered by war-
ranty. In special cases it may not be feasible to send the
unit in for repair and you may wish to attempt to fix a
problem yourself. If you choose this route however you
do so at your own risk. Field repairs should be followed
up with a proper repair from us as soon as possible.
Nylon Washer
Thrust Washer
Radial Roller
Thrust Bearing
Stainless Steel
Captivating Screw
Cover for
Bearing Assembly
Knob
Stainless Steel
Tilt Shaft
Safety Stop
Screw
Quick Release-
Clamp
SETTING UP THE MONOGIMBAL HEAD
Page 4
Weight: .77 lbs (347 grams)
Dimensions: 3.4” 2.5” 4.4”h x w x d
Quick Release -
Knob
Quick Release -
Clamp
Tilt Knob
Arca-
Swiss
If your head has been exposed to a large
amount of salt water, sand or grit it can be
easily disassembled and rinsed. If you need to
disassemble the tilt mechanism refer to the
drawing to the right
Flash Bracket F 6: - -
We offer a convenient telephoto flash bracket that attaches directly to the lens plate and makes telephoto flash a breeze.
The bracket uses a quick release attachment, so it is very fast and easy to install. It also breaks down and folds for easy - -
storage. Refer to our product catalog or website for details
USEFUL ACCESSORIES:
F 6 Flash Bracket-
MonoGimbal
Pouch
Lens Prerequisites
1 Your lens must have a rotation collar if you wish to quickly
switch between landscape and portrait modes
2 Your lens must have an Arca-
Swiss style quick release plate -
or a Lens Replacement Foot
with an integrated Arca Swiss -
style dovetail.
1
2
Captivating Screw
Tilt Mechanism:
To disassemble the tilt mechanism, remove
the captivating screw and unscrew the Tilt Knob.
If you need to remove the grease in the mechanism,
it is okay to use the tilt mechanism without grease
until you have the opportunity to send it in for us to
refurbish.
Tilt Knob
2
3
1
MOUNTING THE HEAD ON A MONOPOD
On a 3/8 16 Threaded Stud:-
Step 1: Attach the head to the monopod See Fig. 1.
Rotate the monopod counter clockwise to attach the head -
on the 3/8 threaded stud on the monopod. Do not install
the safety stop screws if you intend to use the head with-
out a QR clamp.
Monopod Prerequisites
1 Your monopod should be heavy duty. We recommend using
a monopod with a 3/8 stud that is rated at 3 times the weight of
your setup. A reducer bushing can be used in the head for a
1/4” monopod stud, however it is doubtful such a tripod will be
sufficient to guarantee your gears stiffness and stability
2 An Arca Swiss Quick Release clamp if you plan on mounting using -
the arca swiss dovetails on the MonoGimbal head.-
MOUNTING THE HEAD ON A MONOPOD
WITH A QR CLAMP:
Step 1: Install the safety stop screw See (Also see clamp Fig. 2.
compatibility warnings in included safety stop screw kit)
Step 2: Open the QR clamp. The head has
optional safety stop screws. These prevent
accidental sliding out of the quick release.
If you use these stops you must be using
a QR clamp that can be opened wide
enough to load your head from the top
(instead of sliding it in). See Fig 3
Step 3: Attaching the MonoGimbal
Position the flat side of the head s mounting’
base against the clamp face. Clamp it securely.
Fig. 2 – Safety Stop
Screw Installation
Fig. 3 Attaching-
the MonoGimbal
to a QR Clamp
Fig. 1 – Attaching the MonoGimbal to
a 3/8 16 Threaded Stud-
The monopod mounting
platform can typically be
removed if it interferes
with the full rotation of
the clamp or knobs or if a
lighter setup is desired.
Moving
Jaw
3/8 16 Mounting Hole-
Safety Stop Screw
Mounting Holes
Level Plane
The MonoGimbal is now ready to use. Simply loosen the tilt knob about a quarter turn and start shooting. The lens should be
very easy to point, should stay pointed and should not tend to flop or creep. You can shoot with the knob loose for fluid mo-
tion, or lock in on a target by tightening the knob. -
If you have questions or need help setting it up, please contact us.
Page 2 Page 3
Prerequisite: In order to attach your lens to the MonoGimbal Head, it must be fitted with an
Arca Swiss style quick release plate or foot.- -
Step 1: Tighten the tilt knob of the head make sure that the head s Quick release clamp -’-
is level so that the head is stable while you are loading your lens.
Step 2: Open the jaws of the quick release clamp - wide enough so that the jaws clear the
entire width of the QR plate attached to the foot of your lens.
Step 3: While supporting your lens, insert the quick release plate or replacement -
foot on your lens into the jaws of the clamp and tighten the clamp
securely. Make sure the quick release plate is seated properly and -
captive in the clamp jaws before letting go of the lens.
BALANCING YOUR LENS ON THE MONOPOD HEAD:
ATTACHING YOUR LENS TO THE MONOPOD HEAD: See our website for a tutorial video.
STEP 1: Preparing to Balance:
Tighten the Monopod Head s tilt knob. Mount your lens (with camera body ’
attached). Stand behind the lens/camera setup and grab the camera
body as if you are going to take a picture.
If the front of the lens tilts downward you will need to slide
the lens backward (toward you) in the clamp. If the front of the lens tilts upward, you will need
to slide the lens forward (away from you.)
PROPER HORIZONTAL BALANCE:
Adjust the position of the lens in small increments until there is no tendency for it to tip.
STEP 2: Balance the Horizontal Position of the Lens:
Hold camera body with a relaxed grip and loosen the tilt knob of the MonoGimbal.
Adjust the horizontal position of the lens forward or backwards depending on how the lens tips (see figures below). You will ice not
that the lens will want to tilt forward or backward. Don t forget to re tighten the clamp after each adjustment.’-
1
3
2
Monopod Head on Left
Smaller lenses (e.g. the 300 f/4, 70 200 2.8) are shorter and lighter compared to most pro camera bodies. In order to balance a -
small lens, the quick release clamp may have to be so close to the camera body that there is not enough room for your fingers.
Some solutions to this problem are using a lighter camera body or mounting the MonoGimbal to the left side of the lens
(which allows much more room because of the shape of most cameras)
USING SMALL LENSES (OR FOR VERTICAL SHOOTING)
USING LARGE LENSES
The MonoGimbal will carry the weight of a really big lens, but there are some special considerations needed for safe and problem-
free operation. Typically, the bigger the lens, the greater the distance is from the central axis of the lens to the bottom of the tripod
mounting foot. The higher the lens profile, the more the lens extends beyond the center of the monopod. While this is not particularly
an issue due to the nature of the head, it is always beneficial for the center of gravity to be as close to the center of the nopod for mo
overall comfort when mounting the lens and using the monopod.
Monopod Head on Right
Tripod Mounting foot Low Profile Replacement Foot-
If you have a large lens that needs help balancing, we are here to help. We have an extensive list of lenses and
recommended setups on our lens compatibility list. This may be found in our catalog or on our website.
www.tripodhead.com/products/lens plates main.cfm- -
In order to use one of these larger lenses, we will often recommend a replacement foot which lowers the profile of the lens.
