Seite 1/4

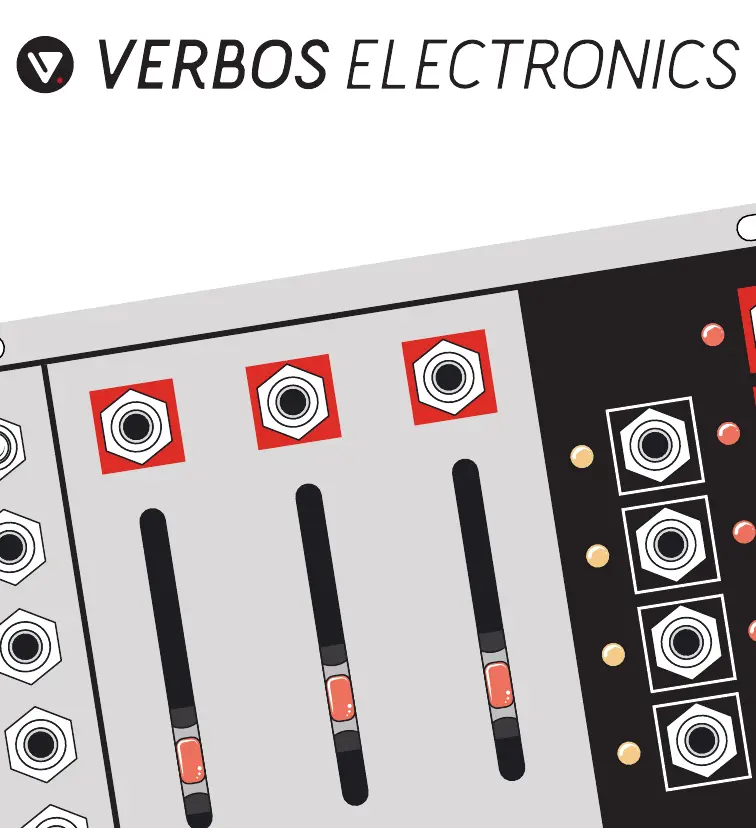

Polyphonic Envelope
Polyphonic Envelope
ay
gate 3
gate 4
gate 2
ode
en ve lop e 1 s tag e outpu ts
1
2
3
4
- E
.0 02
10
1
CV outs
.0 02
10
1
.0 02
10
1
cascade
4
The core of the Polyphonic Envelope is a set of four Attack-Hold-Decay enve-
lope generators. Time constants of all four envelope generators are controlled
by a single set of sliders and CV inputs. One set of controls means the four
envelopes start with the same times, then variation can be added by the Skew
controls. The setting of the sliders and CV inputs are always the settings of En-
velope 1, then Skew allows the times to get longer or shorter on following en-
velopes. The Level Tilt section controls the height of the envelopes as a group.
With the Level Tilt control centered, all four envelopes will rise to 10 volts. If
the control is turned clockwise, the rst envelope will be 10 volts tall and each
subsequent envelope will be successively lower in voltage. If the control is
turned counter-clockwise, the rst envelope will be the lowest voltage and each
subsequenct envelope will be successively higher, with Envelope 4 10 volts
tall. Level Tilt can also be voltage controlled with a reversing attenuator.
Each envelope has a Gate input, sensitive to note duration, as well as a CV
Output and End Pulse output. Envelope 1 has gate outputs for the individual
stages.
When the envelope generators are used as a group, logic is included to
Cascade them one after another. Although Skew and Level Tilt can be used
to vary the envelopes when they are used individually, these controls become
particularly useful while the envelopes are Cascaded. The Mode switch selects
H, D or E (Hold, Decay or End) to determine which stage will trigger the next
envelope in a Cascade.
The Cascade trigger output sends out a trigger corresponding to whichever
stage is used in the current mode from Envelope 4, allowing a second Poly-
phonic Envelope (with four more envelopes) to be cascaded after the rst.
Cascade mode is dynamically engaged and disengaged allowing envelopes to
be triggered independently, even between Cascades. When gated from their
individual Gate inputs, all envelopes can be used independantly, including loop-
ing to create four unsynchronized LFOs. The All outputs combine all four CV
outputs and all four End Pulses.
22HP • 240g • +12v 75mA • -12v 30mA
Poly phon i c Enve l ope
Ve rbos Ele c t ron i c s
at ta ck ho ld de ca y
gate 3
gate 4
gate 1
gate 2
mode
cascade
trigger
at ta ck s ke w ho ld sk ew de ca y sk ew
en ve lo pe 1 s ta ge o utp ut s
all all
1
2
3
4
H - D - E
LEVE L TILT
.0 02
10
1
CV outs
.0 02
10
1
.0 02
10
1
cascade
all
1
2
3
4
end pulse
envelope 1 stage outputs
mode switch
End Pulse outputs
Level Tilt CV input
Level Tilt control
Cascade output time CV inputs
Cascade trigger Skew controls
manual time controls
gate inputs
CV outputs
Skew CV inputs
