VSP-V-9953

Issue 4

1947210

V-9953

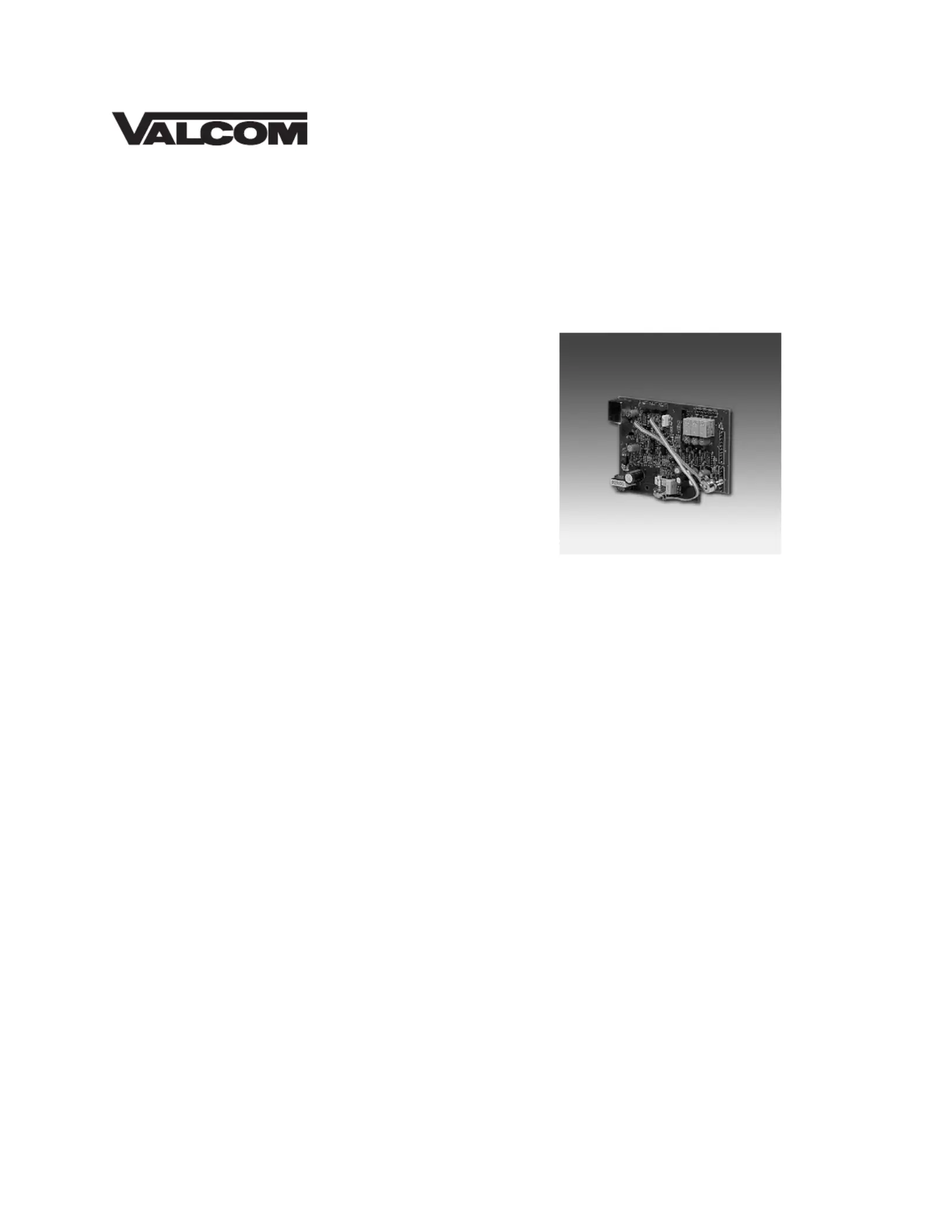

HANDSFREE TALKBACK PLUG-IN BOARD

INTRODUCTION

The V-9953, Handsfree Talkback Plug-In Board,

designed to be used with the V-2003A, allows the

V-2003A to be converted to a V-2003AHF to permit

handsfree operation.

These instructions contain the specifications and

information necessary to install and operate the

V-9953 used in conjunction with the V-2003A.

DIMENSIONS/WEIGHT

• 6.80" H x 4.75" W x 1.50" D

(17.27cm H x 12.07cm W x 3.81cm D)

• 1.0 lbs (.45 kg)

CONNECTIONS

The V-9953 can be purchased as an "add on" feature

after the initial purchase of a V-2003A. By adding a

V-9953, Handsfree Talkback Plug-In Board, the

V-2003A unit can be modified to a V-2003AHF.

The V-2003AHF is programmable on a per zone

basis for one-way or talkback communication. A

single zone may have both one-way and talkback

speakers. One-way speakers should be connected to

the low level outputs for zone 1 (R/BL pair), zone 2

(R/G pair) and zone 3 (R/S pair). These speakers will

act as one-way for the associated zone whether or not

the zone is programmed for one-way or talkback

paging.

If 45 Ohm speakers are connected to the handsfree

output and the zone is programmed for one-way, the

speakers will receive the page. The zone must be

programmed for talkback communication in order to

utilize the talkback option. The page volume control

located on the handsfree board regulates the volume

of the 45 Ohm talkback speakers under both these

circumstances.

Do not connect amplified speakers to the V-9953

talkback zones as they are already amplified.

__ 1. Unplug the V-2003A from the AC power

source; unplug the battery backup if one is

used.

__ 2. Remove the cover of the V-2003A unit by

first removing the four (4) - #32 screws that

attach the cover to the base.

__ 3. Plug the V-9953 board into the chassis of

the V-2003A. Insure the proper alignment

of all pins for proper fit and operation.

__ 4. Secure the V-9953 board to the V-2003A

chassis using the two (2) screws and

lockwashers provided.

__ 5. Insert the Phone-Speaker and Speaker-Phone

volume controls into the cover of the

V-2003A as shown in Figure 2. The control

with the long shaft is Phone to Speaker; the

control with the shorter shaft is Speaker to

Phone. Secure these controls with the

washers and nuts provided.

Make sure the tab on the body of the control

engages the enclosure.

__ 6. Replace the cover of the V-2003A unit.

Insert the four (4) - #32 screws and tighten

snugly to hold in place.

__ 7. Affix the enclosed label to the side of the

V-2003A unit to make certain the controls

relative to the V-9953 are identified.

__ 8. Using twisted pair telephone wire, connect

the Talkback Speakers to the appropriate

output on the V-2003A connection block

(Figure 3). Zone 1 speakers connect to the

BK/G pair, Zone 2 speakers connect to the

BK/BR pair , and Zone 3 speakers connect

to the BK/S pair. No more than two (2) 45

Ohm speakers should be connected to any

Talkback zone. Do not use 8 Ohm speakers.

__ 9. Restore power to the V-2003A; access page

and adjust the volume controls as required.

There are separate volume controls for the

Phone to Speaker, Speaker to Phone, Page,

Background Music, and Night Ring/Warble

Tone. For best results, the Speaker to Phone

volume control should be turned as low as

possible to where background music is just

barely audible.

__ 10. When using talkback speakers, the zone

must be set (utilizing the dip switches) for

talkback communication.

Refer to the V-2003A VSP to determine what each

dip switch activates/de-activates.

TECHNICAL ASSISTANCE

When trouble is reported, verify that power is being

supplied to the unit and there are no broken

connections. Check voltages for proper polarity on

the crossconnect block. If a spare unit is available,

continue to troubleshoot by substituting the spare unit

for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM, a

telephone test set, several clip leads available and be

calling from the job site. Call (540) 563-2000 and

ask for Technical Support, or call (540) 767-1555 for

Valcom 24-hour Faxback System or visit our website

at http://www.valcom.com.

The V-9953 contains no user serviceable parts and is

not field repairable. A service facility is maintained

in Roanoke, VA. Should repairs be necessary, attach

a tag to the unit clearly stating your company name,

address, phone number, contact person and the nature

of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse or negligence after the original shipment.

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service

charge plus parts and labor will be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will

be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection

with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019 Brampton, Ontario L7A 1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

SW2

SW1SW5

RJ11

Battery Feed OFF

Battery Feed ON

Override Tip/Ring

Loop Start

Ground Start

System Tip/Ring

Loop Start

Ground Start

SW3Dip Switches

Zone 3 Music

Zone 3 Tones

Zone 2 Music

Zone 2 Tones

Zone 2 Talkback

Zone 3 Talkback

Zone 1 Music

Zone 1 Tones

Zone 1 Talkback

No System Dial Tone

No System Alrt/Rngbk Tone

No System Repeated Alert

R34

TONES

MUSIC

Switch Down is "ON" Position

and selects option as listed

Male

Amphenol

Connector

Spkr/

Phone

Phone/

Spkr Volume

Controls

with a

V-9953

Added

Tones

Music

Amphenol

Connector

IEC 320 Appliance

Coupler

Voltage Selector

Switch

Fuse

1A @ 125V or

0.5A @ 230V

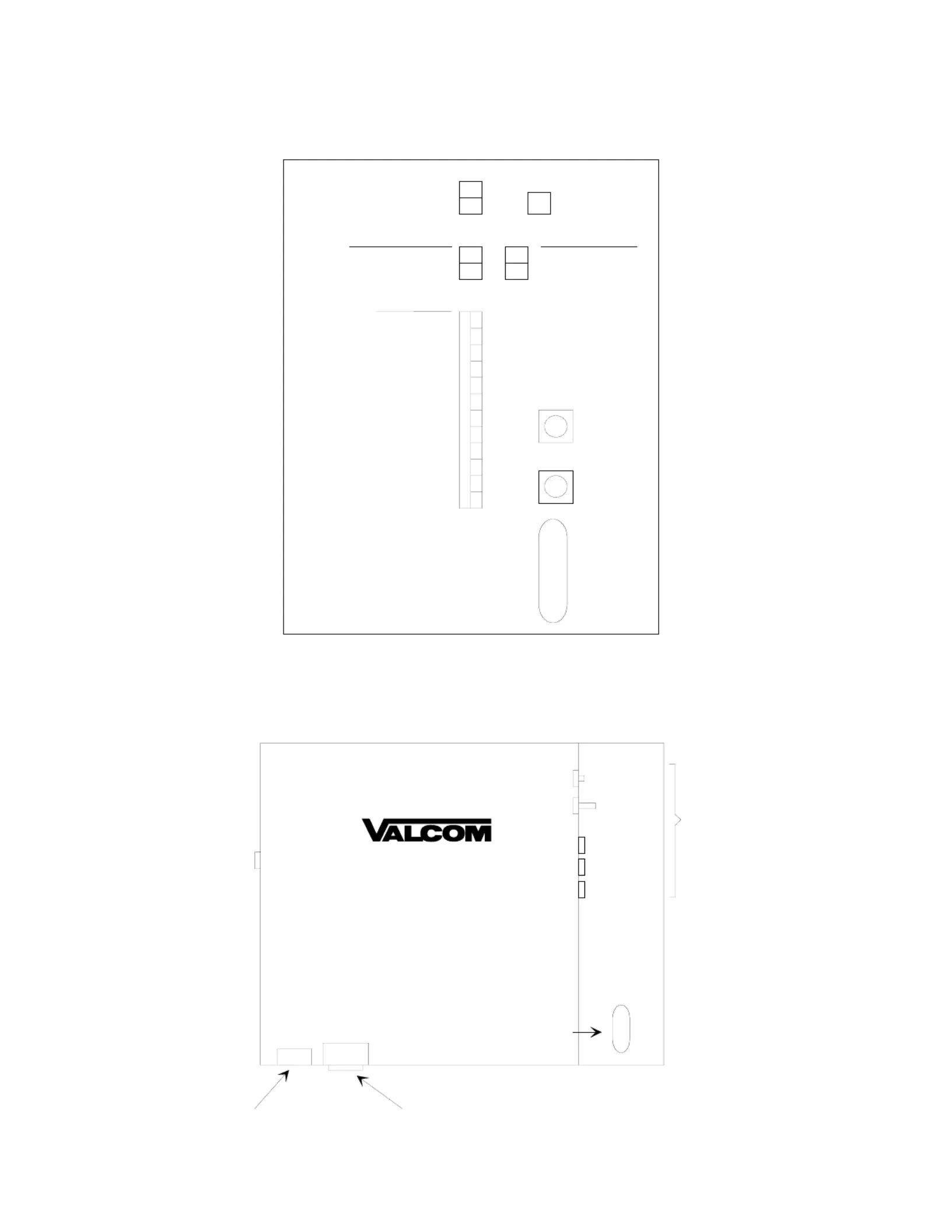

Figure 1

Dip Switches for V-2003A/V-2003AHF and Volume Controls for the V-2003A

Figure 2

Page
