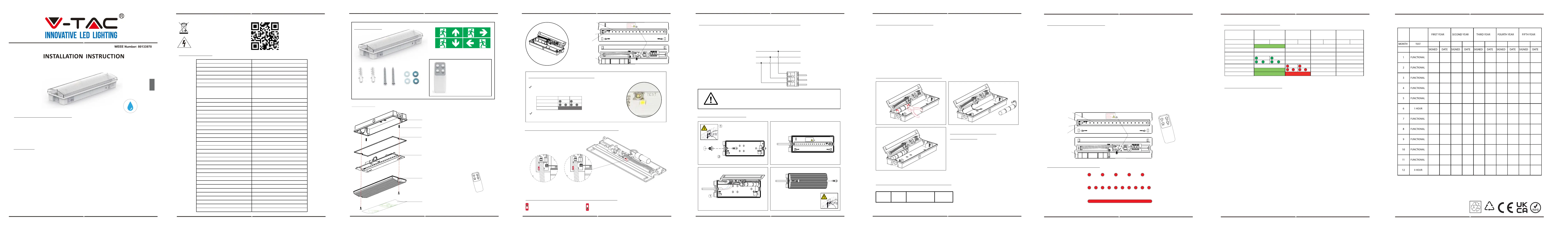

LED EMERGENCY EXIT LIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They are
trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. This
product is warranted for manufacturing defects only.
WARNING:
• Please make sure to turn off the power before starting the installation.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
• Installation should only be done by a certified electrician.
• Proper grounding should be ensured throughout the installation.
• The device must be connected to the main power supply through a fuse dependent by the total amount of
the line’s power load.
• Installation should be carried out in accordance with the latest edition of the wiring regulations and taking
into consideration the latest building regulations.
• Ensure that all electrical connections are tight with no loose strands, including factory made connections.
• Ensure there is adequate free air circulation of at least 100mm around the luminaire. It is the installer’s
responsibility to consider fire risk and take appropriate precautions.
• A seperate enclosure may be required if this unit is to be used in dusty and wet environments.
• The luminaire contains no user replaceable components other than the battery pack contained in emergency
versions.
• The battery has a 3 years warranty provided it is operatedand & maintained by regular testing, as detailed
in this Usermanual. Failure to maintain or change the battery may result in reduced duration in emergency
mode.
• Please make sure to turn off the power before starting the installation.
• Connect the wires as per the wiring diagram. Keep the switch live off, and battery plugged on.
(The green charging indicator on, Faulty indicator off)
• Press the test button, The charging indicator off, and emergency function actived
• Unplugged the battery, charging indicator OFF, the faulty indicator flash in 1HZ.
ITEM PARTS
MAINTAINED & NON-MAINTAINED CHANGEOVER
EMERGENCY FUNCTION TEST BEFORE INSTALLATION
INSTALLATION DIAGRAM
3
YEARS
WARRANTY
*
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
SKU: 11362
REMOTE CONTROLLER
(NOT INCLUDED)
PACKAGE LIST
The polycarbonate base
The Spring
Inner Core PCB
The polycarbonate
Cover
The direction Legend
SKU: 11362
REMOTE
CONTROLLER
(NOT INCLUDED)
The silcon ring
b) Non-Maintained modea) Maintained mode
MAINTAINED & NON-MAINTAINED WORK MODE
a) Dip switch ON. It works in
maintained mode;
b) Or it works in non-maintained
mode.
ON ON
N
Emergency
Live
N E
Earth
L
• The mains have to be off during the installation or maintenance.
• Keep the product far from heat sources and in a well ventilated area.
LUMINIAIRE MAY BE LIVE
EVEN IF LAMPS ARE NOT
OPERATIN G.
ISOLATE MAINS
AND DISCO NNECT
BATTERY BEFO RE
MAINTENANCE
• Switch off the power before starting the installation.
• Knock out the cable hole
• Install the base on the wall
• Fix the cable by M20
• Connect the cable to the driver
• Connect the battery pack
• Chose right work mode by dip switch
• Fix the middle plate
• Fix the diffuser
• Switch on the power and test the light
• Switch off the power before starting the
installation.
• Cut the battery tie and take off the fault
battery.
• Replace with the new battery and tie it
securely. Connect the battery and VH3.96
battery plug properly
• Check if the installation is properly done
before putting back the base cover.
INSTALLATION INSTRUCTION
BATTERY REPLACEMENT DIAGRAM
BATTERY REPLACEMENT
INSTRUCTION
EMERGENCY CONTROL LOGIC
MAINTENANCE INFORMATION
TESTING (IF ANY FAILURE)
TESTING (IF NO FAILURE)
MANUAL FUNCTION TEST
Active the test button. or press “TEST” switch on controller.④
a) The Charging indicator OFF.②
b) The Emergency function ON.
c) The test will cut off the mains
MONTHLY TEST
Active the test button for 5 second; or press the “Monthly TEST” switch on controller; or the lamp installed ④
every 30 days.
a) The Charging indicator will flash in 1HZ for 128s;②
b) The Emergency function ON;
c) The test finished and back to standby mode.
ANNUAL TEST
Active the test button for 7 second; or press the “Annual TEST switch on controller; or the lamp installed ④
every 180 days.
a) The Charging indicator will flash in 2HZ for 3hours;②
b) The charging will be cut off & emergency function ON 3hours;
c) The lamp back to standby mode after test.
20
PAP
MAINTENANCE INFORMATION
If the above sequence did not apply then the battery will discharge on a certain limit until the battery
protection operation starts.
Minimum recommended test schedule:
• Daily: check that the green indicators is active and the red error indicator is inactive.
• Monthly: check that the green indicators is active and the red error indicator is inactive
(After the monthly self-test).
• Annually: check that the green indicators is active and the red error indicator is inactive
(After the monthly self-test).
ΝΟΤΕ: If red error indicator is activated after any of the above or if the luminaire does not work as
described in this document, contact the installer.
PARTS:
• The luminaire contains no user replaceable components other than the battery pack contained in emergency
versions.
BATTERY:
• It is operated and maintained by regular tests, as described in detail in this document.
• The battery must be replaced in case it cannot support the minimum duration autonomy of 3 hours.
Suspension of product operation: in case of not using the product for a period of the installer must execute
the following steps:
1. Disconnect the main power supply.
2. Press the test button one time.
3. After button is pressed the LED will stop emitting and the operation of battery protection will start.
EMERGENCY LUMINAIRE DESIGNATION
X 1 A*C*E 180
TECHNICAL DATA
IP65
RATING
SMART SELF-TEST & REMOTE TEST
The emergency bulkhead built in self-test and remote test function.
Self-test (Optional): The lamp will test automatically every month /
half of year, & record the test results by flashing the faulty indicator.
Remote test(Optional): The testing also can proceed by the remote
controller. It is not necessary need ladders, or turn off the mains any more.
Battery failure
LED load failure
Duration failure
Constantly ON
FAULTY INDICATOR LOGIC
1Second 1Second
Fault Battery
NEW Battery
NEW Battery
Model VT-997
Emergency Watts >1.2 Watts
Emergency Operation time >3 Hours
Lumen 120lm
Battery Charging Current 60mA
Battery Type Ni-CD SC, 3.6V 1.2Ah
Test Button Included
Test with manual test + self test + remote
test [Remote available to buy seperately]
Charging indicate Green LED
Battery protection circuit Included
Low Voltage inspection Inculded
Inhibit mode Inculded
Lamp Type Emergency Bulkhead
Watts maintained mode 3.0W
Non-maintained mode 1.5W
CCT 6400K
CRI >80
Voltage 200-240VAC 50/60Hz
Beam angle 120°
Dimensions L350 * W110 * H56mm
Viewing Distance 22 Meters
Stickers 4 Ways different legends
Material 100% Polycarbonate
LED Chips 18pcs 2835
Warm up time <0.1S
Standard 60598-2-22:2014
Charging time 24 hours
Standard of Legend ISO7010 & ISO3864-1/4
LED lifespan 50,000 Hours
Faulty indicator RED LED
Non-maintained mode
If AC supply normal EM LED ON - 120LM
If AC supply failure EM LED OFF - 120LM
Maintained mode
If AC supply normal EM LED ON - 120LM
If AC supply failure EM LED OFF 0- LM
Dimension 350x110x56mm
Red faulty indicator
Green charging indicator
LED Chips
TEST button
Battery Pack
Remote Sensor
Red faulty
indicator
Green charging
indicator
LED Chips
TEST button
Battery Pack
Remote Sensor
SKU: 11362
REMOTE
CONTROLLER
(NOT INCLUDED)
Battery failure:
Monitored constantly. The will flash in 1 Hz if the
③ faulty indicator
battery failure any time.
LED load failure:
If press test button, or the luminary self-monthly test. The ③ faulty indicator
will flash in 2 Hz if LED load failure.
Duration failure:
Only in Annual self-test. The will turn on constantly if the
③ faulty indicator
Battery can not last 3 hours
Operation Charging indicator
(Green)
Faulty Indicator
(RED)
Emergency LED
Maintained mode
Emergency LED
Time line
Normal charging Constantly on OFF Constantly on OFF
Normal AC Failure OFF OFF Constantly on Constantly on
Manual test OFF OFF Constantly on Constantly on
Monthly self-test OFF Constantly on Constantly on
Annual self-test OFF Constantly on Constantly on
Battery circuit failure OFF Constantly on OFF
Light source failure Constantly on OFF OFF
Duration test failure Constantly on Constantly on Constantly on OFF
Non-Maintained mode
1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second
GENERAL INSTRUCTIONS
Remote Sensor
③
②
â‘Ł
