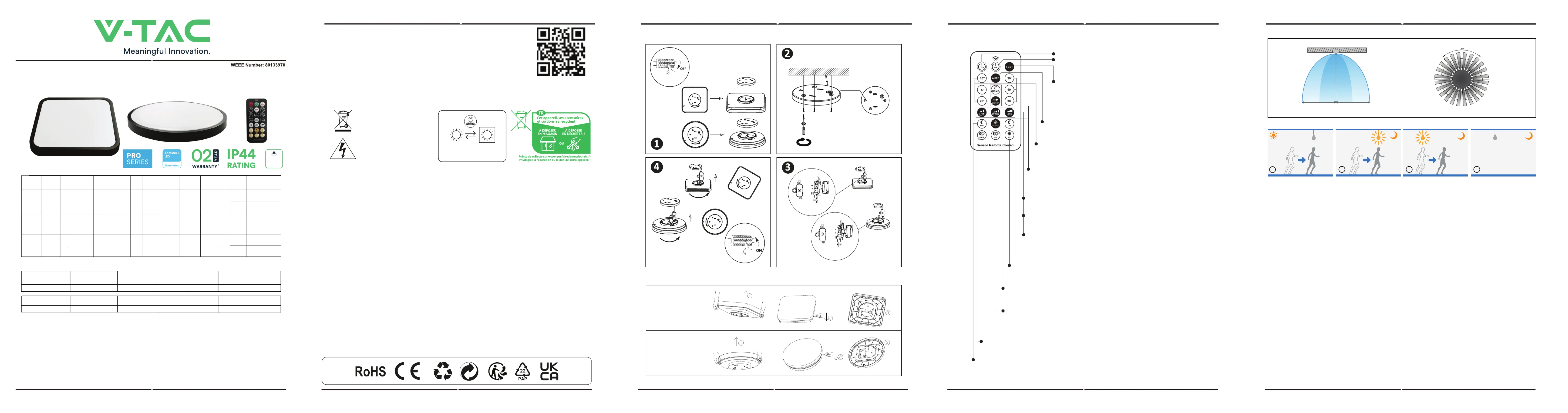

Seite 1/2
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before
starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer
or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is
valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal
wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the
product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty.
This product is warranted for manufacturing defects only.
ATTENTION!
Do not look directly at LED light beam. Product can only be supplied by rated voltage or voltage within the range
provided. It's forbidden to use the product with damaged protective cover. Product must not be used in unfavorable
conditions, e.g. dust, water, moisture, vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. In the
area of strong electromagnetic interference, the functioning of the product may be disrupted.
USAGE GUIDELINES / MAINTENANCE
Any maintenance work must be performed when the power supply is cut o and the product has cooled down.
Clean only with so and dry cloths. Do not use chemical detergents. Do not cover the product. Ensure free air
access. Product may heat up to a higher temperature.
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a certified person.
• The light source of this luminaire is not replaceable, when the light source reaches
its end of life the whole luminaire should be replaced.
• For Indoor use only
• If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.
• Method of attachment of the cable or cord such that any replacement can only be
made by the manufacturer, his service agent or similar qualifed person.
INSTALLATION INSTRUCTION
• Switch O the Power Before Starting the Installation.
• Twist and remove the cover
• Drill a hole in the ceiling to fix the light using screws (Ref Image Part 2)
• Connect the wires (Ref Image Part 3) before fixing the light using screws on the ceiling.
• Twist and lock the cover to the light (Ref Image Part 4)
• Switch ON the power and test the light.
MOUNTING
Read the manual before mounting. Mounting should be performed by a qualified electrician. Exercise caution.
Product has a protective contact /terminal. Failure to connect the protective lead may lead to electric shock.
Mounting diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior
to first use.
TECHNICAL DATA
SENSOR TECHNICAL DATA
TEST METHOD
Start Up Phase
1. The microwave lamp shall be installed at a height of 3M above the ground to ensure that the front induction antenna is horizontally downward, i.e. in the
direction of the ground;
2. Power on;
3. The microwave induction module is connected to the power supply. At this time, the module continuously outputs the high level for self inspection for 4S.
Aer the self inspection is completed, the module continuously outputs the low level and enters the working state.
Intelligent Control Stage:
1. When someone enters the microwave induction coverage range (1-5 meters can be customized), the microwave induction module outputs a high level;
2. If someone is active in the microwave coverage area, the induction module always outputs a high level;
3. When a person leaves the microwave coverage range for 1 minute, the induction module outputs a low level
Test precautions and special instructions:
1. During the test (especially when the technician tests the sample, the product must be placed on the table top and the antenna surface must be upward), the
person must be at least 1m away from the table top.
2. When the light is o, the radar silence time of 1 second is required to be triggered again;
3. During the test, try to eliminate external interference factors, such as the movement of the machine and people or the movement of the partition wall, and
prevent low-frequency resonance, false alarm and misjudgment;
4. The delay time refers to the time interval from the start to the end of the last sensing signal, and the countdown aer the person leaves the sensing area;
5. Traditional products are not suitable for long-distance applications installed in a narrow space
6. The above delay time, distance and photosensitive parameters can be appropriately modified according to customer requirements.
Supplementary Note:
Warning: If signal output port (IFI / IFQ) is sensitive to ESD (electrostatic damage), contact with high electrostatic area or power area may cause irreversible
damage to the radar module
Warning: If the lamps have been matched (not limited to brands and models) in the development stage, please do not replace other unmatched equipment
(including but not limited to power supply and lamps) during use. If the equipment is replaced without authorization and there is any abnormality, our company
will not be responsible.
Suggestion: It is recommended to use qualified DC stabilized power supply, i.e. DC stabilized power supply with output voltage, current and ripple coecient
up to standard, otherwise the stability of this product will be aected and some abnormalities may occur, such as false alarm, no induction, circulation and self
startup.
Matters Needing Attention
1. Avoid installing metal accessories or shells, which will shield the microwave and aect the eect;
2. The antenna surface shall be protected from high current circuit coverage, which may cause interference;
3. The photosensitive position shall be protected from opaque objects, which will change the photosensitive intensity;
4. The recommended installation distance of the sensor is greater than 1.5m.
INSTALLATION DIAGRAM REMOTE CONTROLLER INSTRUCTIONS
LED SENSOR DOME LIGHT
MODEL LUMENSSKU WATTS BEAM
ANGLE
BODY
TYPE CRI LIFE
SPAN
ON/OFF
CYCLE TOTAL
CURRENT
INPUT
VOLTAGE SHAPE DIMENSION
(LxWxH)
ROUND ⌀295 x 60 mm
SQUARE 295x295x65mm
ROUND ⌀350 x 61 mm
ROUND ⌀420 x 65 mm
SQUARE 420x420x65mm
VT-8630S 36W 3820LM Sphere
360°
Sphere
360°
Sphere
360°
PP+PMMA 160mA
AC:220-240
50/60Hz
AC:220-240
50/60Hz
AC:220-240
50/60Hz
VT-8624S 24W 2500LM PP+PMMA 170mA
VT-8618S
76621-24
76631-24
76641-24
76701-24
76651-24
76681-24
76711-24
76741-24
76591-24
76601-24
76611-24
76691-24
76721-24
76661-24
18W 1830LM PP+PMMA >80
>80
>80
20,000
Hours >15,000
>15,000
>15,000
20,000
Hours
20,000
Hours
130mA
SENSOR INFORMATION
1-5m (Radius)
1-5m 1-5m
1-5m (Radius)
Height of Installation: 3m Detection Distance: Max. 10m
Height 3m
1. When the ambient light is bright enough, even if a moving object is detected, the lamp will not automatically light up
2. When the ambient light is lower than the preset photosensitive threshold, the light will automatically light up when the sensor detects a moving object
3. When the sensor cannot detect the moving object aer the moving object leaves, it will enter the delay time and keep the light on
4. Aer the moving object leaves and aer the preset delay time, the lamp will automatically turn o
12 3 4
SENSOR USAGE
DIMENSION INPUT POWER STANDBY
POWER
WORKING FREQUENCY OF
RADAR MODULE
INSTALLATION
HEIGHT
20mm*20mm*2.6mm DC: 5V 5V @ < 30mA 5.8GHz
+
5.87GHz 3m
DETECTION RADIUS INITIALIZATION TIME HOLDUP TIME WORKING TEMPERATURE AMBIENT LIGHT THRESHOLD
1-5m Adjustable3 sec -20°C ~ 85°C Adjustable
INTRODUCTION & WARRANTY
'This product contains a light source of energy eciency class <F>', where <F> shall be replaced by the energy eciency
class of the contained light source.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Caution, risk of electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages
Replaceable (LED Only) light
source by a professional
LED LED
INSTRUCTION MANUAL
DISASSEMBLY DIAGRAM
SQUARE DOME LIGHT
ROUND DOME LIGHT
OFF (WITH MEMORY FUNCTION,SENSOR FUNCTION OFF)
ON (MICROWAVE FUNCTION OFF,THE LIGHT REMAINS ON CONTINUOUSLY)
AUTOMATIC MODE: 100% SENSING DISTANCE,
TURN OFF PHOTOSENSITIVE FUNCTION, HOLD TIME FOR 30 SECONDS
SENSOR HOLD TIME:
10S, 30S, 5MIN, 10MIN, 20MIN, 30MIN
REPEATED FLASHING MODE:
TURN ON THE LIGHT FOR 500MS, THEN TURN OFF THE LIGHT
FOR 500MS, AND KEEP REPEATING THIS STATE
SET THE SENSING DISTANCE LEVEL TO THE LOWEST:
INSTALLATION HEIGHT OF 3M, SENSING RADIUS OF 1-2M
N/A
ADJUST THE PHOTOSENSITIVE THRESHOLD TO 5LUX
ADJUST THE PHOTOSENSITIVE THRESHOLD TO 30LUX
TURN OFF PHOTOSENSITIVE FUNCTION
ADJUST THE PHOTOSENSITIVE THRESHOLD TO 100LUX
ADJUST THE PHOTOSENSITIVE THRESHOLD TO 200LUX
ADJUST THE SENSING DISTANCE LEVEL TO MEDIUM:
INSTALLATION HEIGHT OF 3M, SENSING RADIUS OF 2-3M
ADJUST THE SENSING DISTANCE LEVEL TO HIGHEST:
INSTALLATION HEIGHT OF 3M, SENSING RADIUS OF 4-5M
(For Market surveillance team only)
Note: Light source removal will void the warranty
SPHERE
STAYS BRIGHT
360°
NOTE: IN ANY SITUATION WITHOUT MICROWAVE FUNCTION, ALL OTHER BUTTONS CAN TURN ON THE
MICROWAVE FUNCTION, EXCEPT FOR OFF, ON, TEST THESE THREE BUTTONS.
