Seite 1/26
INSTALLATION INSTRUCTION
EMERGENCY LIGHTS (VT-543)
OPERATION DIAGRAM
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installing and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best.
The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused
by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. This product is warranted for manufacturing
defects only. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day
would void the warranty. This product is warranted for manufacturing defects only.
Our products are designed to comply with the recommendations of BS EN 60598-1:2008 code of practice for
emergency lighting and should be installed by a competent person in accordance with the relevant regula-
tions. Before installation of any type of emergency lighting always seek the advice of the local ïŹre prevention
oïŹƒcer (or equivalent authority).
Multi-Language Manual QR CODE
WEEE Number: 80133970
LUMINAIRE INFORMATION
‱ Watts: 3W
‱ Lamp Type: 16 SMD LEDs, Wall-Bulkhead
‱ Lumens: 140 LM
‱ Input Power: AC: 220-240V, 50/60Hz
‱ Protection Rating: IP65
‱ Operation Tine: >3 Hours
‱ Charging Current: 70~150mA
‱ Discharging Current: 100~450mA
‱ Battery type: Ni-Cd 3.6V 1200mAh
‱ Recharge time: 12 hours (Initial charge: 36 hrs)
‱ Indicator: Green Light Indicator
‱ Material: PC Cover
‱ Product size: 346x107x60 mm (LxWxH)

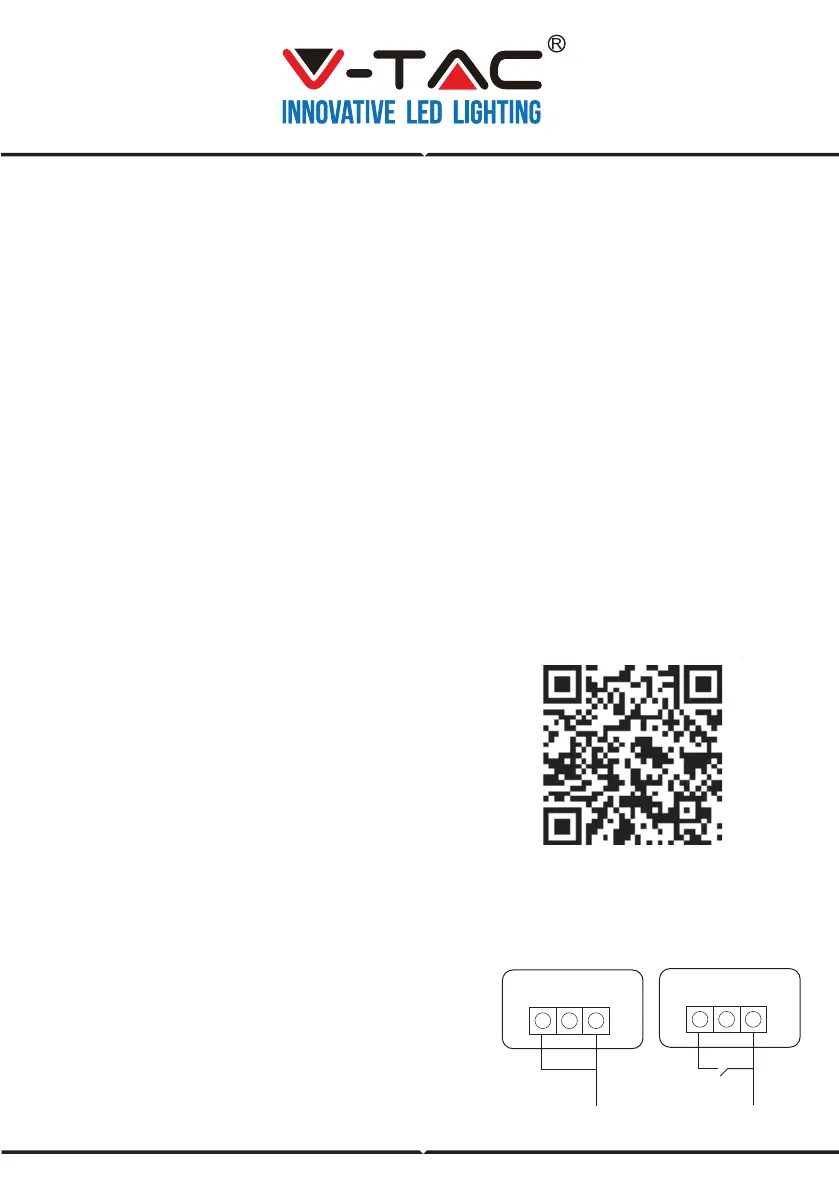

For Maintained Operation - Maintained operation, link L
(Switched Live) to terminal Ls (permanent Live). If ‘Ls’ is not
connected, the ïŹtting works as non-maintained
All self-contained emergency lighting luminaires require a
continuous (un-switched) 220V-240V single phase 50hz (L)
supply to keep the inbuilt batteries charged.
Note: the LEDs contained in this ïŹtting are not designed to be
replaced.
MAINTAINED
Ls N L
NON-MAINTAINED
Ls N L
Please scan the QR code to access the
manual in multiple languages.
ENGLISH
INSTALLATION OF THE FITTING
Installation should only be carried out in accordance with the current edition of the “Regulations for Electrical
Installations” EN61547 and with the requirements of BS EN 60598-1.
Don’t do a high voltage insulation test on the luminaire as this may damage the control gear.
Before starting the installation ensure that the electricity supply is isolated and that it cannot be reenergized
accidentally.
1) Remove the front diïŹ€user from the body by removing the 2 ïŹxing screws.
2) Release the gear tray by easing the plastic clips away from the tray and by lifting the tray away from the
base.
3) There are four cable entry holes on this ïŹtting. One on the rear and one on each side of the plastic body.
Drill out the intended cable entry hole suitable for your installation.
4) Drill out the two ïŹxing holes located on the back of the luminaire, hold the luminaire in the required
location and use these holes as a template mark on the location of the ïŹxing holes on the wall/ceiling (Please
note when drilling ïŹxing holes in the wall/ceiling be careful not to damage concealed wires or pipes.)
5) Fix the luminaire to the wall/ceiling using suitable screws and ïŹxings (not supplied).
7) For component protection in transit and user safety the luminaire battery fuse is supplied in the
ïŹtting.
8) When all connections have been made reassemble the ïŹtting completely.
9) Restore the supply and check that the Green LED indicator illuminates to conïŹrm the batteries are
charging. There are three possible reasons when the green LED indicator does not light up:
1) there is no power supply AC220-240V,
2) the batteries are not properly connected to the PCB,3) the batteries are not being charged.
10) Allow a short period for partly charging the batteries and then isolate the mains supply to the ïŹtting
in order to check the correct operation of the ïŹtting in emergency mode. After 36 hours on continuous
charge (and only at a safe time) a mains failure should be simulated to ensure that the ïŹtting
illuminates for its rated emergency duration.
The luminaire will have a 1-hour backup after 14 hours charging and will be fully charged after 24 hours
(ïŹrst charge 36 hours)
MAINTENANCE
Once the luminaire no longer meets the rated emergency operation the batteries must be replaced. AND
batteries must be replaced after a maximum of 4 years in service.
Repairs should only be carried out by a qualiïŹed person. Please recycle disposal of replaced components
where facilities exist. Special care should be taken if it’s required to open the ïŹtting as the ïŹtting may
still be “live” even though the mains supply has been isolated. In these circumstances immediately
disconnect the battery supply.
Servicing and cleaning should only be carried out after the ïŹtting has been made electrically safe.
Cleaning of luminaires should be carried out at regular intervals not only to ensure good optical
performance but also ensure that dirt does not accumulate to such an extent as to impair the electrical
or thermal safety of the ïŹtting.

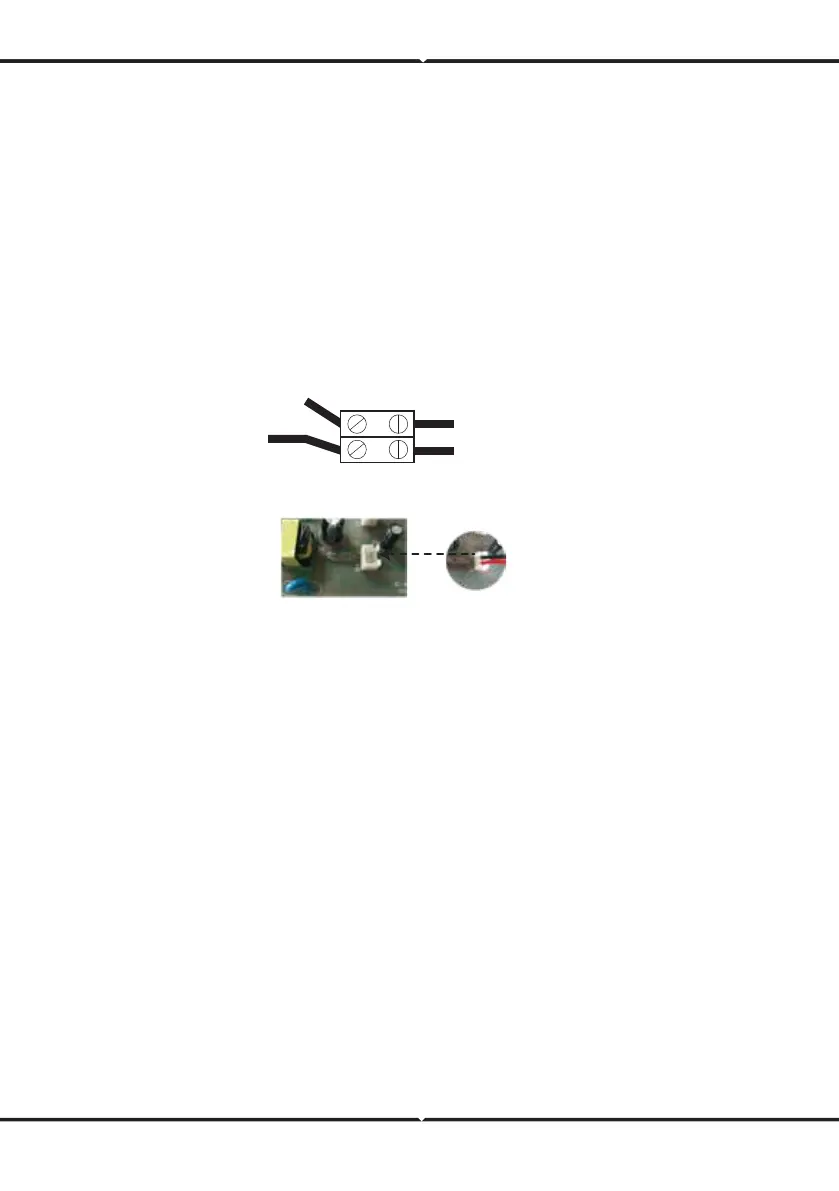

(N) Blue
(L) Brown
6) Connect the mains supply
wiring as follows.
ENGLISH
INSTALLATION INSTRUCTION
EMERGENCY LIGHTS (VT-543)
ININTRODUCTION & GARANTIE
Merci d’avoir choisi et achetĂ© un produit Ă  V-TAC. V-TAC vous oïŹ€rira le meilleur. Veuillez lire attentivement
ces instructions avant de commencer l’installation et conservez ce manuel Ă  portĂ©e de main pour rĂ©fĂ©rence
ultĂ©rieure. Si vous avez d’autres questions, veuillez contacter notre distributeur ou le fournisseur local auprĂšs
duquel vous avez achetĂ© le produit. Ils sont formĂ©s et prĂȘts Ă  vous servir au mieux
La garantie est valable pour une pĂ©riode de 2 ans Ă  compter de la date d’achat. La garantie ne s’applique pas
à des dommages causés par une installation incorrecte ou une usure anormale. La société ne donne aucune
garantie pour des dommages causĂ©s Ă  une surface en raison d’un enlĂšvement et d’une installation incorrects
du produit.
BS EN 60598-1:2008 Code de bonnes pratiques pour l’éclairage de secours et doit ĂȘtre installĂ© par une
personne compĂ©tente conformĂ©ment aux rĂšglements pertinents. Avant l’installation de tout type d’éclairage
de secours toujours demander l’avis de l’agent local de prĂ©vention contre l’incendie (ou d’une autoritĂ©
Ă©quivalente).
WEEE Number: 80133970
Pour le maintien en Ă©tat de service – maintien en Ă©tat de service, lien L (alimentation avec commutation) au
terminal Ls (alimentation permanente branchĂ©e). Si «Ls» n’est pas connectĂ©, l’appareil fonctionne comme en
mode de non maintien
Tous les luminaires autonomes d’éclairage de secours nĂ©cessitent une alimentation continue (non commutĂ©e)
220V-240V monophasée 50 Hz (L) pour maintenir les batteries intégrées en état chargé.
Veuillez noter: les LED contenus dans cet appareils ne sont pas conçus pour ĂȘtre remplacĂ©s.
MAINTAINED
Ls N L
NON-MAINTAINED
Ls N L
FRENCH
