INSTALLATION INSTRUCTION
EMERGENCY LIGHTS (VT-524-S)
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installing and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase.
The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The
company gives no warranty against damage to any surface due to incorrect removal and installation of the
product. This product is warranted for manufacturing defects only. This product is warranted for manufactur-
ing defects only.
Our products are designed to comply with the recommendations of BS EN 60598-1:2008 code of practice for
emergency lighting and should be installed by a competent person in accordance with the relevant regula-
tions. Before installation of any type of emergency lighting always seek the advice of the local ļ¬re prevention
oļ¬ƒcer (or equivalent authority).
WEEE Number: 80133970
ENGLISH

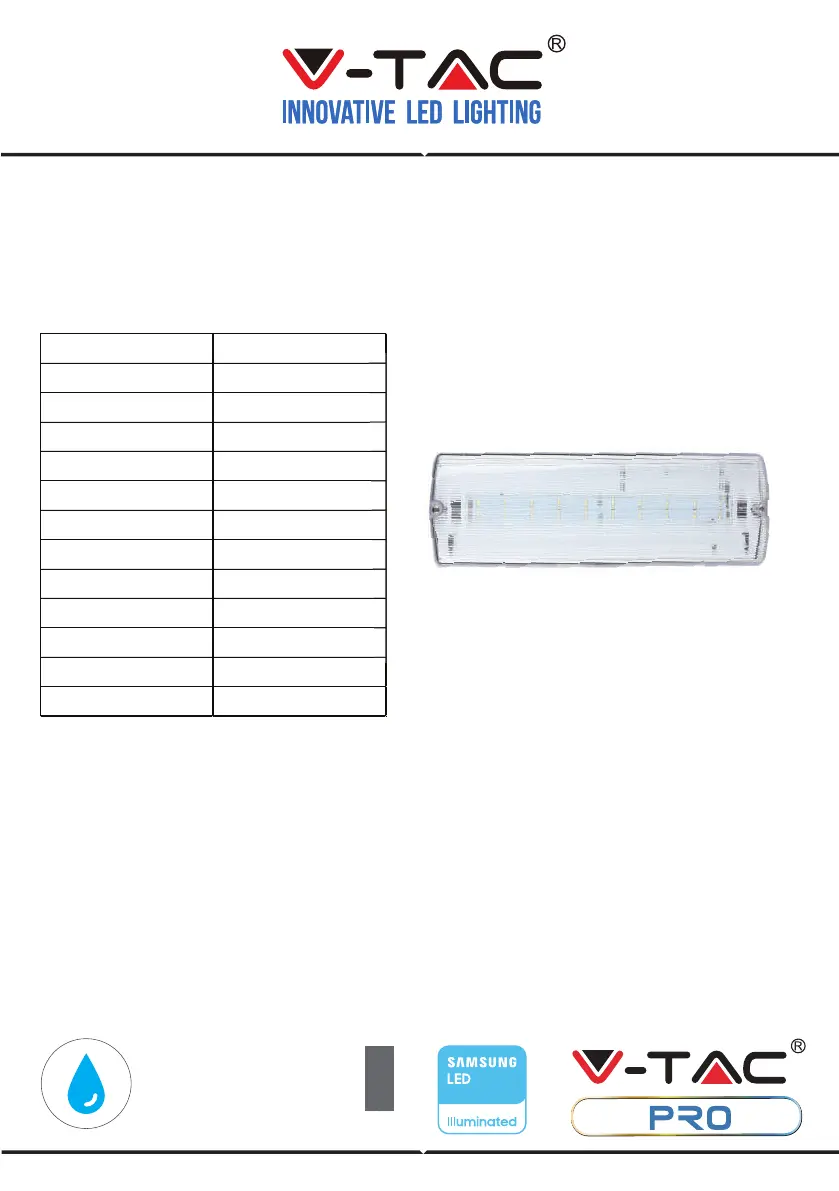

TECHNICAL DATA
MODEL 4W
LAMP TYPE 30 SMD LEDs
LUMENS 190LM
INPUT POWER AC:220-240V, 50/60Hz
LONG LIFE 30000 HOURS
BODY TYPE 100% PC
OPERATION TIME >3 HOURS
CHARGING CURRENT 90~150mA
DISCHARGING CURRENT 180~250mA
BATTERY TYPE Ni-Cd 4.8V 900mAh
RECHARGE TIME 12 HOURS
INDICATOR GREEN LIGHT INDICATOR
LEGENDS SELF ADHESIVE LEGENDS
3
YEARS
WARRANTY
*
IP65
RATING
1) Remove the front diļ¬€user from the body by removing the 2 ļ¬xing screws.
2) Release the gear tray by easing the plastic clips away from the tray and by lifting the tray away from the
base.
3) There are four cable entry holes on this ļ¬tting. One on the rear and one on each side of the plastic body.
Drill out the intended cable entry hole suitable for your installation.
INSTALLATION OF THE FITTING
Installation should only be carried out in accordance with the current edition of the ā€œRegulations for Electrical
Installationsā€ EN61547 and with the requirements of BS EN 60598-1.
Donā€™t do a high voltage insulation test on the luminaire as this may damage the control gear.
Before starting the installation ensure that the electricity supply is isolated and that it cannot be reenergized
accidentally.

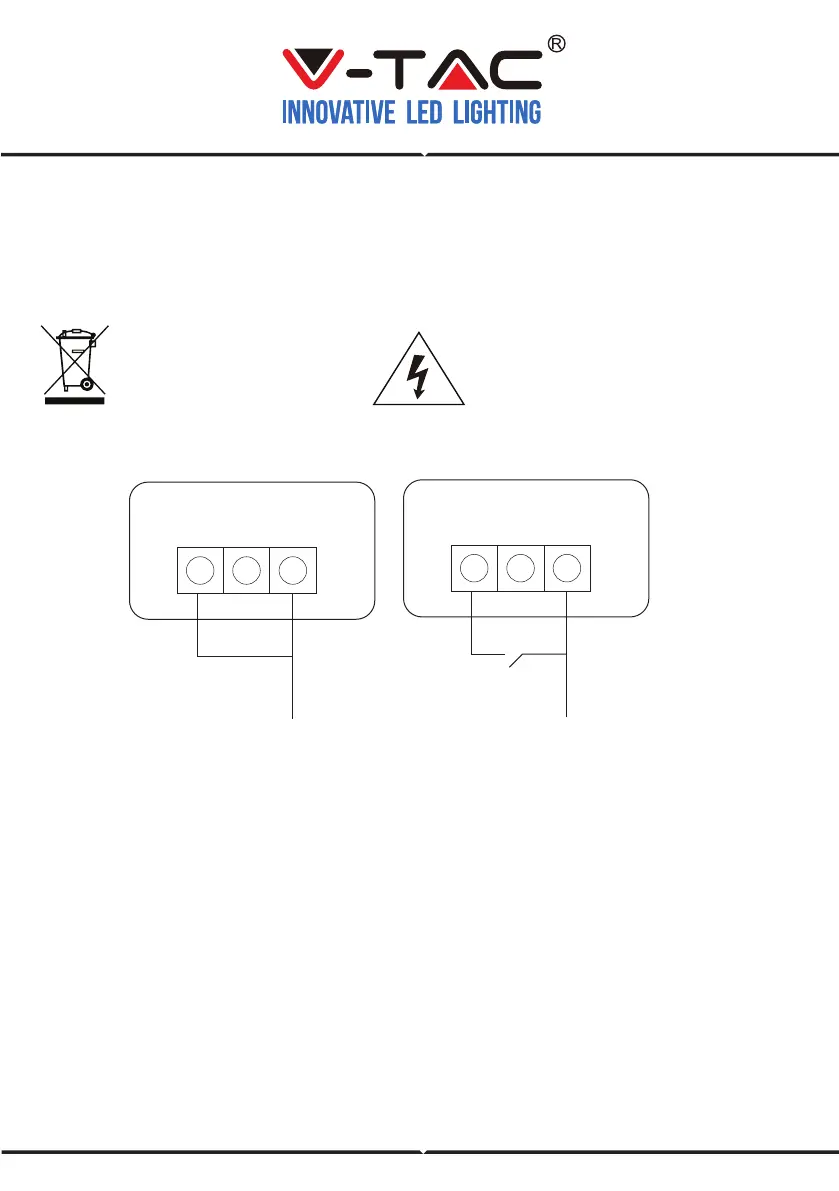

MAINTAINED
Ls N L
NON-MAINTAINED
Ls N L
For Maintained Operation - Maintained operation, link L (Switched Live) to terminal Ls (permanent Live).
If ā€˜Lsā€™ is not connected, the ļ¬tting works as non-maintained
All self-contained emergency lighting luminaires require a continuous (un-switched) 220V-240V single
phase 50hz (L) supply to keep the inbuilt batteries charged.
Note: the LEDs contained in this ļ¬tting are not designed to be replaced.
ENGLISH
WARNING:
1. Please make sure to turn oļ¬€ the power before starting the installation.
2. Installation must be performed by a qualiļ¬ed electrician
3. The light source of this luminaire is not replaceable; when the light source reaches its end of life the
whole luminaire shall be replaced.
Caution, risk of electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
4) Drill out the two ļ¬xing holes located on the back of the luminaire, hold the luminaire in the required
location and use these holes as a template mark on the location of the ļ¬xing holes on the wall/ceiling (Please
note when drilling ļ¬xing holes in the wall/ceiling be careful not to damage concealed wires or pipes.)
5) Fix the luminaire to the wall/ceiling using suitable screws and ļ¬xings (not supplied).
6) Connect the mains supply wiring as follows.
7) For component protection in transit and user safety the luminaire battery fuse is supplied in the ļ¬tting.
8) When all connections have been made reassemble the ļ¬tting completely.
9) Restore the supply and check that the Green LED indicator illuminates to conļ¬rm the batteries are
charging. There are three possible reasons when the green LED indicator does not light up:
1) there is no power supply AC220-240V,
2) the batteries are not properly connected to the PCB,3) the batteries are not being charged.
10) Allow a short period for partly charging the batteries and then isolate the mains supply to the ļ¬tting in
order to check the correct operation of the ļ¬tting in emergency mode. After 36 hours on continuous charge
(and only at a safe time) a mains failure should be simulated to ensure that the ļ¬tting illuminates for its
rated emergency duration.
The luminaire will have a 1-hour backup after 14 hours charging and will be fully charged after 24 hours
(ļ¬rst charge 36 hours)
MAINTENANCE
Once the luminaire no longer meets the rated emergency operation the batteries must be replaced. AND
batteries must be replaced after a maximum of 4 years in service.
Repairs should only be carried out by a qualiļ¬ed person. Please recycle disposal of replaced components
where facilities exist. Special care should be taken if itā€™s required to open the ļ¬tting as the ļ¬tting may still
be ā€œliveā€ even though the mains supply has been isolated. In these circumstances immediately disconnect
the battery supply.
Servicing and cleaning should only be carried out after the ļ¬tting has been made electrically safe. Cleaning
of luminaires should be carried out at regular intervals not only to ensure good optical performance but also
ensure that dirt does not accumulate to such an extent as to impair the electrical or thermal safety of the
ļ¬tting.
(N) Blue
(L) Brown
ENGLISH
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
