!WARNING
• Please make sure to turn off the power before starting the installation.
• Installation should only be performed by a certified electrician.
• The light source of this luminaire is not replaceable, when the light source reaches its end of
life the whole luminaire should be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order to avoid
a hazard.
• Make sure the local voltage is the same with the product before plugging into the power
supply.
• The unit is designed with replacement battery. Battery replacement should only be performed
by a qualified electrician.
• Forbid to use in the rain or outdoors.
• Daily check – check that the status GREEN LED indicator is illuminated
• Do not install this product on damp or newly plastered surfaces.
• Ensure all electrical connections are secure and that there are no loose strands.
• For Indoor Use Only
INSTALLATION INSTRUCTION
LED EMERGENCY LIGHT
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installation and keep this manual handy for future
reference. If you have any another query, please contact our dealer or local vendor from whom
you have purchased the product. They are trained and ready to serve you at the best. The
warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage
caused by incorrect installation or abnormal wear and tear. The company gives no warranty
against damage to any surface due to incorrect removal and installation of the product. This
product is warranted for manufacturing defects only.
3
YEARS
WARRANTY *
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Model VT-511S
Waîž©s 3.8W Max
Lumens 110LM
Output Voltage 4.5W
Ouput Power 1.2W
IP Ra ngIP20
Viewing Distance 22 Meters
Charging Time 12H
DischargeTime >4H
Charge Current (mA) 200mA
Discharge Current (mA) 360mA
Safety Classi ca on  II
Product Material ABS+PC
Ba eryîž©3.7V2000mAH Li-ion Baîž©ery
[REPLACEABLE]
Mode of Opera onNon-Maintained / Maintained
Input Power AC: 220-240, 50/60Hz
Legends Available 4 Ways Di erent Legends
Dimension
Dimension with Recessed Box
292x79x102mm
292x93.7x102mm
We do not recommend any modification
to this product. Any modification may
render the product to be unsafe and will
invalidate any Safety /Approvals.
PRODUCT FEATURES MODIFICATIONS

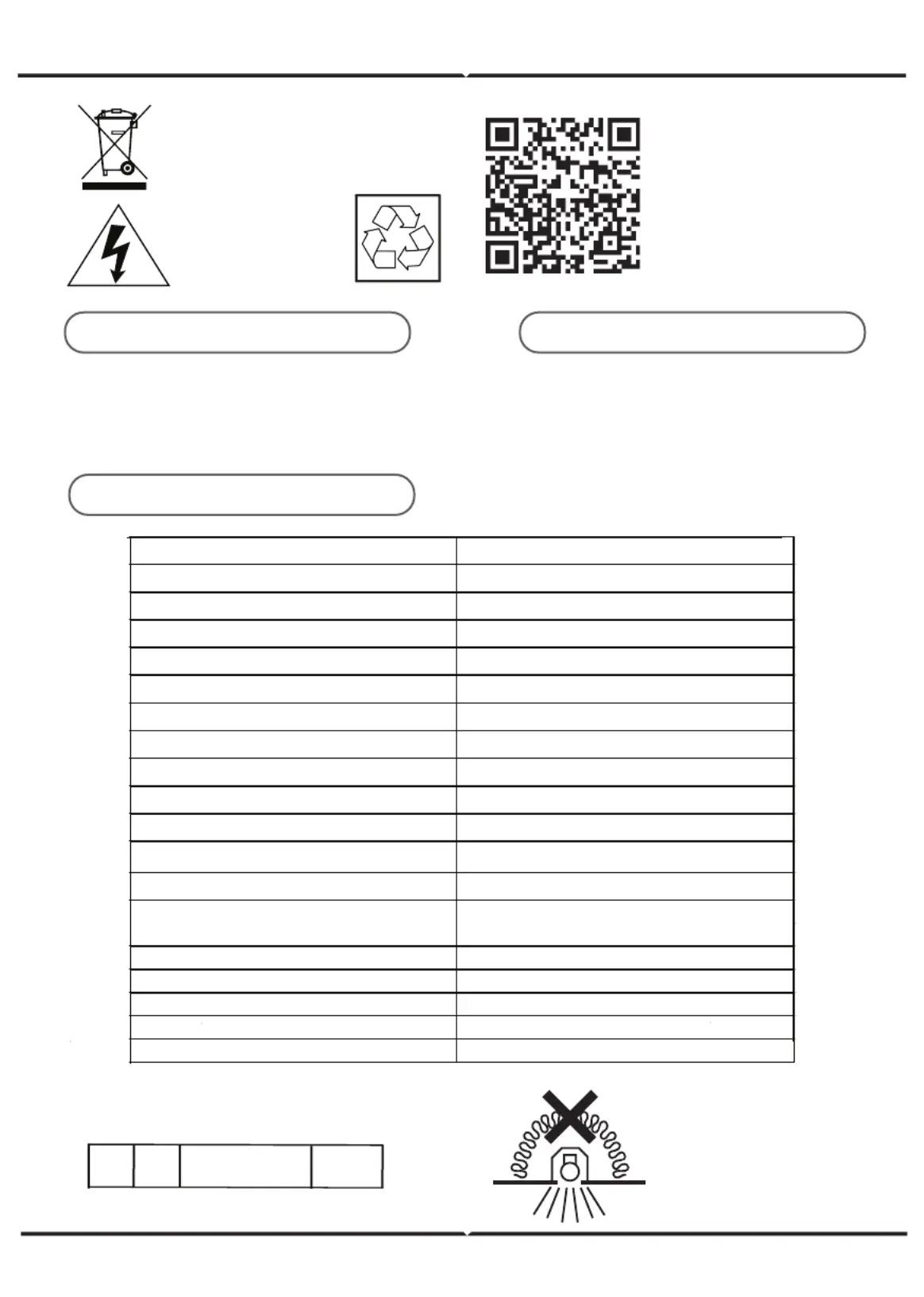

TECHNICAL DATA
• The product can use in Public place, Hotel,
Office Block, House and so on.
• Above the 40°C (104°F) or under the 0°C
(32°F), the efficacy of lighting will decline.
Emergency Luminaire Designation
X2A*C*E 180
Luminaires not suitable
for covering with
thermally insulating
material.
Caution, risk of
electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
NOTE: Jumper cap switching position has the functions of AC/DC (Maintained) and DC
(non-maintained). P1 is AC/DC position, P2 is DC position. (Refer to Picture F)
1. Switch off the main power before installation
2. Open the emergency light with a help of a screwdriver (Figure A).
3. Insert the Lead wires from the wall through the hole base cover as shown in (Figure B).
4. Install the base cover on the wall with the help of screws.
5. For connecting the wires, pull out the connector from the front cover, unscrew the
screws on them and connect the lead wires to PCB AC and green terminal.
6. Put back the connector on the front cover.
7. Place back the front cover on the base
8. Switch on the main power
INSTALLATION INSTRUCTIONS
I SURFACE MOUNTING (For wall only):
WALL MOUNTING FLUSH MOUNTING CEILING MOUNTING
THREE INSTALLATION METHODS
