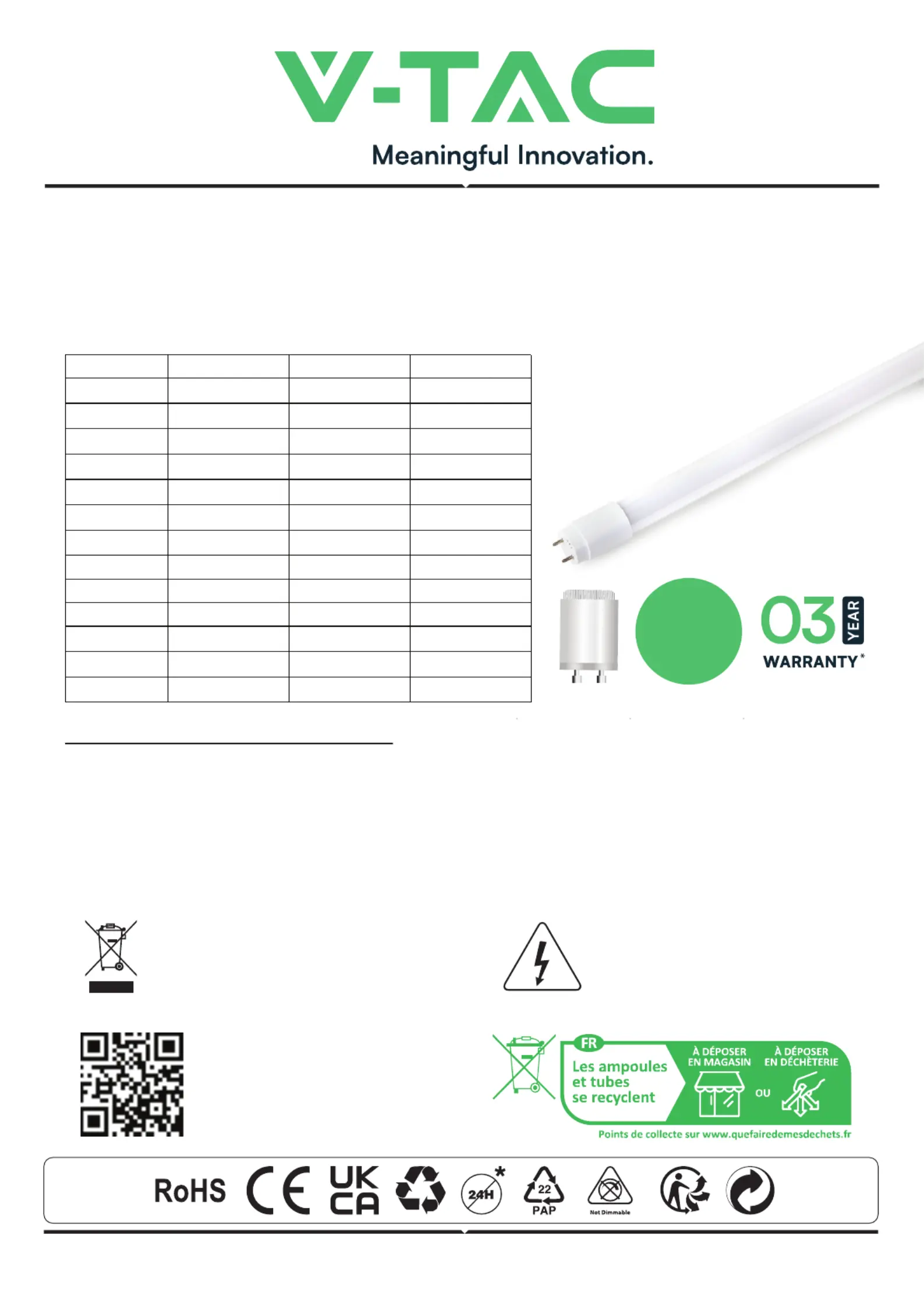

INSTRUCTION MANUAL
LED GLASS TUBE
WEEE Number: 80133970
TECHNICAL DATA
MODEL VT-6279
9W
850 Lm
>80
>0.5
160°
Glass
G13
25,000 Hours
>15,000
28x600 mm
AC:220-240V, 50Hz AC:220-240V, 50Hz AC:220-240V, 50Hz
28x1200 mm 28x1500 mm
>15,000 >15,000
25,000 Hours 25,000 Hours
G13 G13
Glass Glass
160° 160°
>0.7 >0.7
>80 >80
1850 Lm 2100 Lm
18W 20W
VT-1221 VT-1575
SKU
WATTS
LUMENS
CRI
DF
BEAM ANGLE
BODY TYPE
BASE
IP20 IP20 IP20
IP RATING
LIFE SPAN
ON/OFF CYCLE
DIMENSION
INPUT POWER
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and
ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty does not
apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for
manufacturing defects only.
STARTER
FOR LED TUBES
DUMMY STARTER
INCLUDED
@Sphere360
This marking indicates that this
product should not be disposed of
with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
WARNING
PACKING

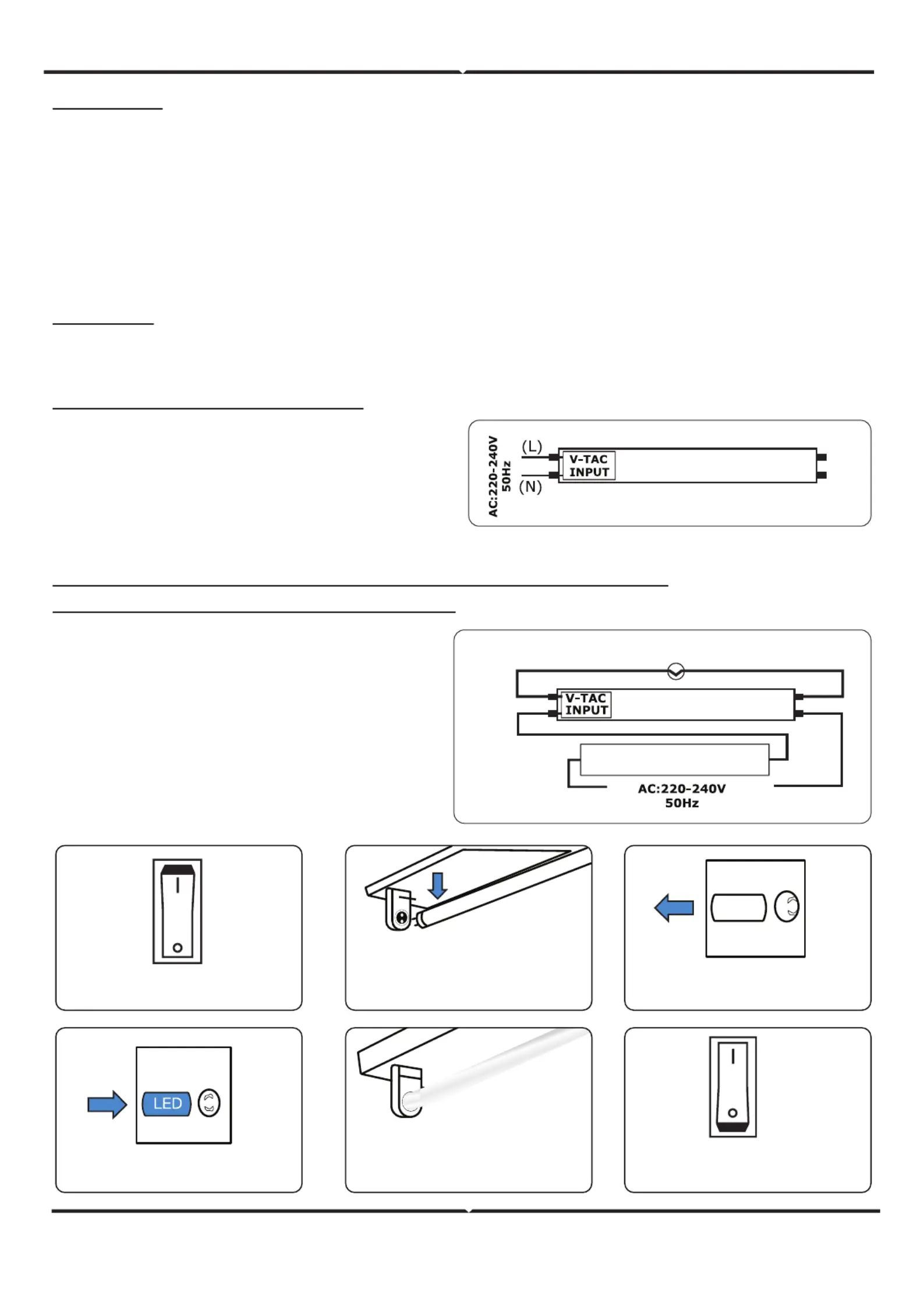

NEW FITTING INSTALLATION
INSTALLATION & REPLACEMENT OF FLUORESCENT LAMP
(SINGLE MAGNETIC BALLAST CIRUIT)
• Installation should only be done by a certified electrician.
• Operation environment temperature: from -20°C to +45°C.
• Do not use DC electricity.
• Do not modify the fitting to be used with the LED Tube.
• V-TAC LED Tubes are NOT designed to be used in emergency operations.
• For Indoor use only.
• Do NOT use with electronic ballasts. V-TAC LED tubes are not compatible with electronic ballast circuit. In order to
use the electronic ballast fitting you must ensure to remove the electronic ballast from the fitting and rewire the circuit
as per new fitting installation as shown below. Ensure the installation and wiring is carried out by certified electrician.
• Installation should only be done by a certified electrician.
• Switch O the power.
• Ensure the wiring diagram is followed as highlighted.
• Insert V-TAC LED Tube.
• Switch On the power to test the light.
• Installation should only be done by a certified
electrician.
• Please refer to the wiring diagram for replac-
ing fluorescent tube on a single magnetic
ballast circuit with V-TAC LED Tube.
• LED Tube (1PC) • Instruction Manual (1PC) • Dummy Starter (1PC)
Wiring Diagram
LED TUBE
Single Side Power OnlyLe Right
Wiring Diagram
LED Starter
Inductance Ballast
(L) (N)
RightLe LED TUBE
1. Switch o the power
4. Insert LED T8 starter 5. Insert V-TAC LED Tube 6. Switch ON the power
2. Remove the existing
fluorescent lamp
3. Remove the existing
fluorescent starter
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
