INSTRUCTION MANUAL
LED GARDEN LIGHT
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the
warranty. This product is warranted for manufacturing defects only.
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the
manual in multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
TECHNICAL DATA
MODEL VT-10121 WIRE LENGTH (Outer Size) 130 ±10mm
SKU NET WEIGHT23053 2.9Kg
LUMENS 9800 Lm [@WIDE CONE] 5-8mMOUNTING HEIGHT
POWER MAX. PROJECTED AREA120W 30-40m2
INPUT VOLTAGE AC: 220-240V, 50/60Hz LIFE SPAN 25,000 Hours
BEAM ANGLE DIMENSION100° 380x380x120mm
CRI ≥80
OPERATION TEMPERATURE -20° C to +40° C
WARNING
DIMENSIONS
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light
source reaches its end of life the whole luminaire should be replaced.
• Proper grounding should be ensured throughout the installation.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.
Garden Lamp
Pole Diameter
∅60mm
MODEL VT-10121
A(mm) ∅380
H(mm) 120
N.W(Kg) 2.9

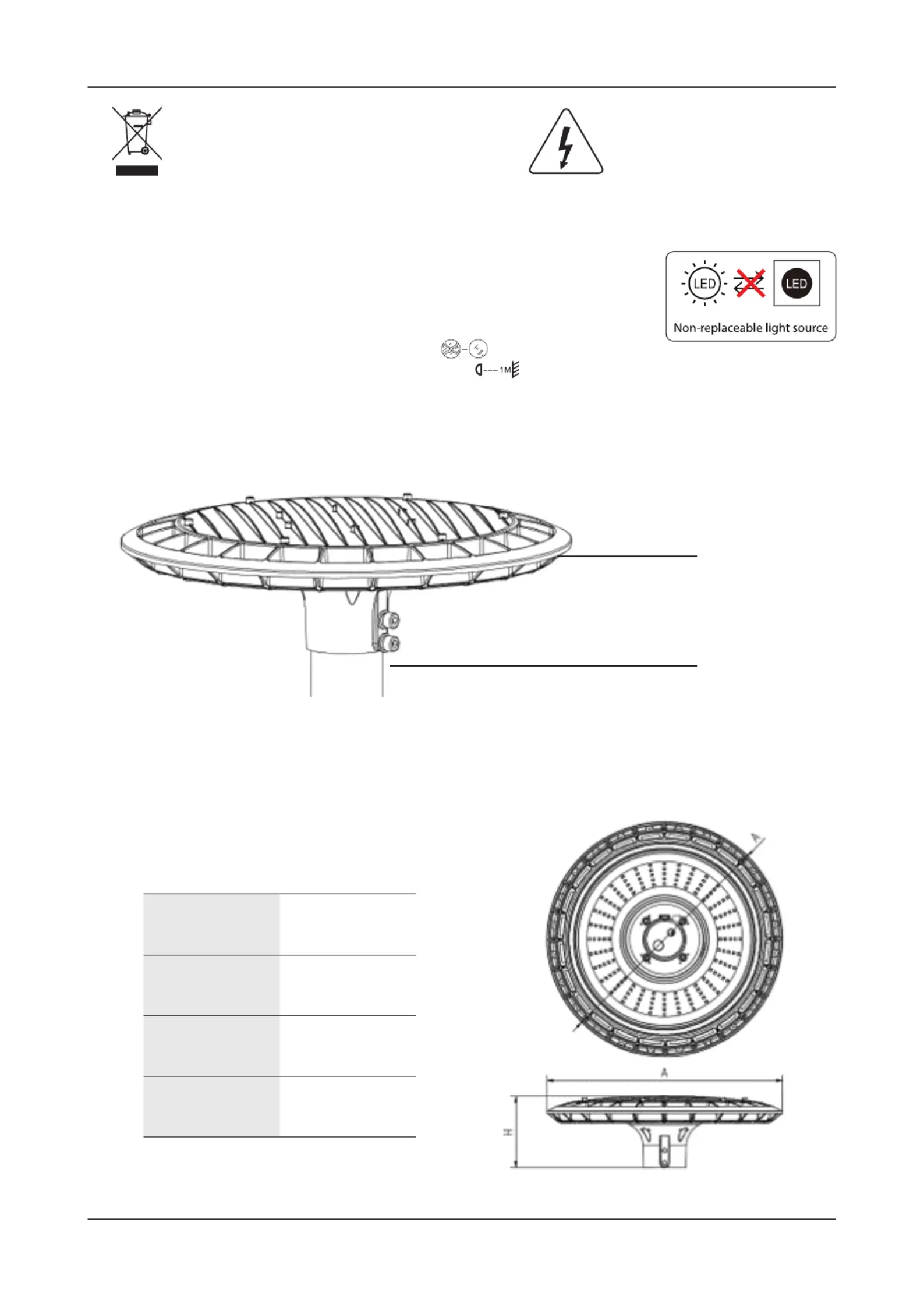

PARTS DIAGRAM
INSTALLATION DIAGRAM

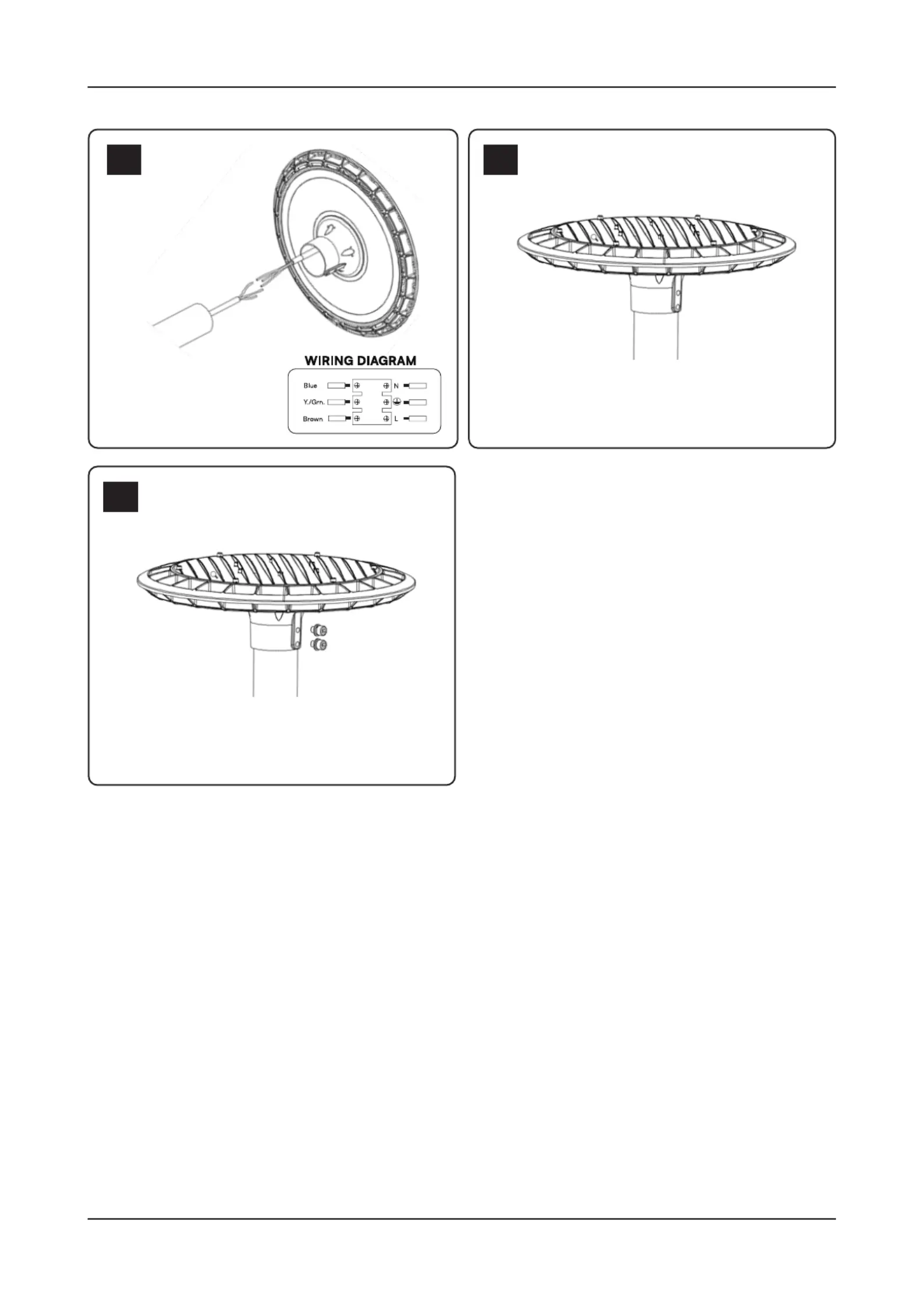

INSTALLATION INSTRUCTION
INSTALLATION CONDITIONS
1. Connect to 220-240V AC power grid, brown wire to wire, the blue line
to zero, yellow green line to grounding wire.
2. Set the lamp on a lamp pole with a diameter of ∅60mm.
3. Use M8 screws to fix the lamp on the pole and lock it tight.
4. Turn on the lamp
1. In a stent or analogues.
2. In the mast (column) on the cantilever.
3. The input and the output connection mode must need IP65 waterproof connec-
tor to connect (suitable for line 0.75MM square - 1.5MM square) .
4. This series of street lamp belongs to outdoor lamps and lanterns, install indoor
environment is only suitable for the air circulation, temperature range, no more
than -20° to 40° C
∅60mm
1 2
3
