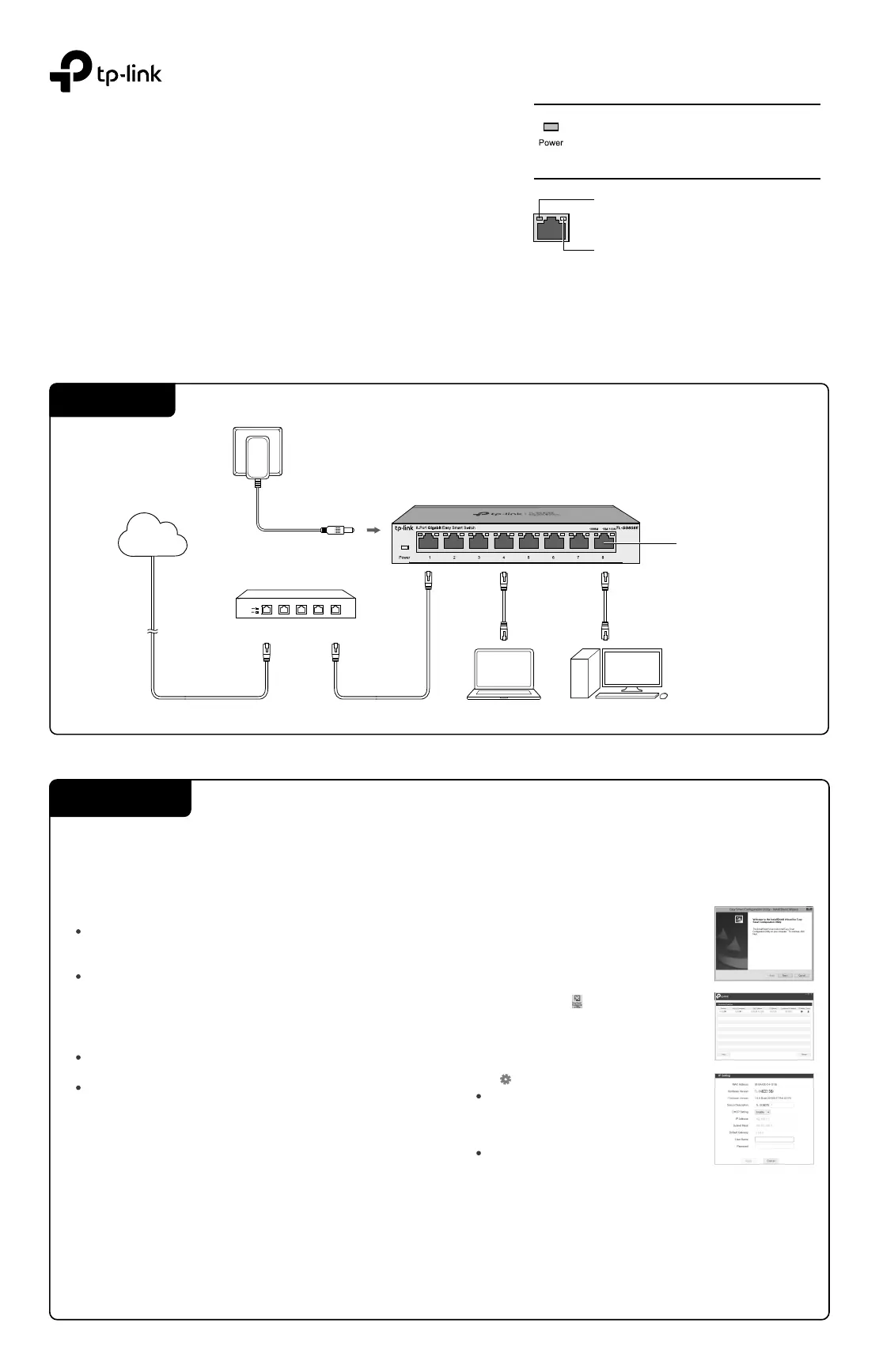

Installation Guide
© 2023 TP-Link 7106510136 REV1.1.0
1000 Mbps (Green)
On: Running at 1000 Mbps
Flashing: Transmitting/receiving data
10/100 Mbps (Yellow)
On: Running at 10/100 Mbps
Flashing: Transmitting/receiving data
LED Explanation
Power
On: Power on
O: Power o
Link/Act
Connection
Ethernet Ports (1-8)
TL-SG608E
PC PC
Router
LAN PortWAN Port
Internet
Conguration
The switch is plug and play. To congure the switch, you can use the
Web-based GUI or the conguration utility.
The utility is only supported on Windows now.
Using the Conguration Utility
1. Go to https://www.tp-link.com/support and search the model number of
your switch. Download the Easy Smart Conguration Utility from the
product web page on your PC.Support
Using the Web-based GUI
Note: If the switch gets a new IP address from the DHCP server, your
connection to the switch will be lost. Enter the new IP address in your
browser to access the switch again.
1. Find out the IP address of the switch.
By default, the switch receives an IP addess from a DHCP server (or a
router that functions as a DHCP server) in your network. You can nd
out this IP address on the DHCP server.
If the switch cannot receive an IP address from a DHCP server, it uses
the static IP address of 192.168.0.1, with a subnet mask of
255.255.255.0.
2. Congure IP address on your PC to make sure the switch and PC are in
the same subnet.
If the switch uses an IP address assigned by a DHCP server, set your PC
to obtain an IP address automatically from the DHCP server.
If the switch uses 192.168.0.1 as the IP address, congure your PC’s IP
address as 192.168.0.x (”x” ranges from 2 to 254), and subnet mask as
255.255.255.0.
Launch a web browser on your PC, enter the IP address of the switch in
the address bar and press . Log in with as both user name Enter admin
and password.
3.
Now you can congure the switch using the Web-based GUI. For further
information, refer to the User Guide.
Go to https://www.tp-link.com/support, search the model number of your
switch, and you can nd this guide on the product Support web page. Now you can congure the switch using the conguration utility. For further
information, refer to the Easy Smart Conguration Utility User Guide.
Go to https://www.tp-link.com/support, search the model number of your
switch, and you can nd this guide on the product Support web page.
Double click the icon on the desktop, and the
utility Home page will display a list of TP-Link
switches on the local network.
3.
2. Decompress the downloaded le, run the
installation wizard and follow the prompts to
install the .Easy Smart Conguration Utility
4.
If the switch uses an IP address assigned by
a DHCP server, set your PC to obtain an IP
address automatically from the DHCP
server.
If the switch uses 192.168.0.1 as the IP
address, congure your PC’s IP address as
192.168.0.x (”x” ranges from 2 to 254), and
subnet mask as .255.255.255.0
Click to nd out IP parameters of the switch.
Double click the switch that you want to congure. Log in with admin as
both user name and password.
5.
5/8-Port Gigabit Easy Smart Switch
Note: For simplicity, we will take TL-SG608E for example throughout this Guide.
Frequently Asked Questions (FAQ)
Q1. Why is the Power LED not lit?
By default, the Power LED should be lit when the power system is working
normally. If the Power LED is not lit, please try the following:
A1: Make sure the power adapter is connected to the switch with power
source properly.
A2: Make sure the voltage of the power supply meets the requirements of
the input voltage of the switch.
A3: Make sure the power source is ON.
A4: On the LED On/O conguration page, check whether the LED status is
on. By default, the LED status is on.
Some models featured in this guide may be unavailable in your country or region.
For local sales information, visit https://www.tp-link.com.
Q2. Why is the Link/Act LED not lit while a device is
connected to the corresponding port?
Please try the following:
A1: Make sure that the cable connectors are rmly plugged into the switch
and the device.
A2: Make sure the connected device is turned on and works normally.
A3: The cable must be less than 100 meters long (328 feet).
A4: On the LED On/O conguration page, check whether the LED status is
on. By default, the LED status is on.
Environmental and Physical Specications
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
0 C to 40 C (32 F to 104 ˚ ˚ ˚ ˚F)
-40 C to 70 C (-40 F to 158 ˚ ˚ ˚ ˚F)
10% RH to 90% RH non-condensing
5% RH to 90% RH non-condensing
Specications
General Specications
Standard
Protocol
IEEE802.3i, IEEE802.3u, IEEE802.3ab,
IEEE802.3x, IEEE802.1p, IEEE802.1q
CSMA/CD
Ethernet:
10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
Fast Ethernet:
100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
Gigabit Ethernet:
2000 Mbps (Full Duplex)
10Base-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)Ω
100Base-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)Ω
1000Base-T:
UTP category 5e cable (maximum 100 m)
EIA/TIA-568 100 Ω STP (maximum 100 m)
5/8 10/100/1000 Mbps Auto-Negotiation RJ45 Ports
Power, 10/100 Mbps LED, 1000 Mbps LED
Store-and-Forward
Automatically learning, automatically aging
10Base-T: 14881 pps/Port
100Base-TX: 148810 pps/Port
1000Base-T: 1488095 pps/Port
Yes
TL-SG605E: 52 mm
TL-SG608E: 110 mm
Data Transfer Rate
Network Media (Cable)
Interface
LED indicators
Transfer Method
MAC Address Learning
Frame Forward Rate
Wall Mountable
Distance Between
Mounting Holes
Safety Information
Do not use any other chargers than those recommended.
Keep the device away from water, re, humidity or hot environments.
Adapter shall be installed near the equipment and shall be easily accessible.
Do not use damaged charger or USB cable to charge the device.
Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us.
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements
and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC,
2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at
https://www.tp-link.com/en/support/ce/
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR
code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
UK declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements
and other relevant provisions of the Electromagnetic Compatibility Regulations 2016
and Electrical Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at
https://www.tp-link.com/support/ukca/
