LiteWave PoE Switches Datasheet
LS105LP/LS105GP LS106LP/LS108GP LS109P/LS1210GP
Ideal for
Basic
Networks
Ideal for
Basic
Networks
Series
LiteWave PoE Switches Datasheet
Overview
The TP-Link LiteWave Series PoE Switches require no conguration and
provide PoE (Power over Ethernet) ports. They can automatically detect and
supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In
this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no
power lines or outlets, where you wish to x devices such as APs, IP
Cameras or IP Phones, etc.
Highlights
- With multiple PoE ports, transfer data and power on one single cable
- Working with IEEE 802.3af /at compliant PDs, expand your network*
- 802.1p/DSCP QoS enable smooth latency-sensitive traîž±c
- Up to 250 m data and power transmission under Extend Mode** specially designed
for surveillance system
- Isolation Mode (for LS109P&LS1210GP only) allows one-click client traîž±c separation
for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automaticallyî™»
rebooting the dropped or unresponsive PD devices
- Plug and play, no conguration and installation required
Network Diagram
IP Camera
Router
Access Point
IP Phone Access Point
Internet
250m PoE Transmission**
Note: LS105GP is used for demonstration
LiteWave PoE Switches Datasheet
Specications are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. © 2023 TP-Link
www.tp-link.com
Note:
* LS105LP and LS106LP only support IEEE 802.3af, and provide PoE Power up to 15.4W for each PoE port; other switches support IEEE 802.3af/at, and provide PoE Power up to 30W for each PoE port.
** The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
*** PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

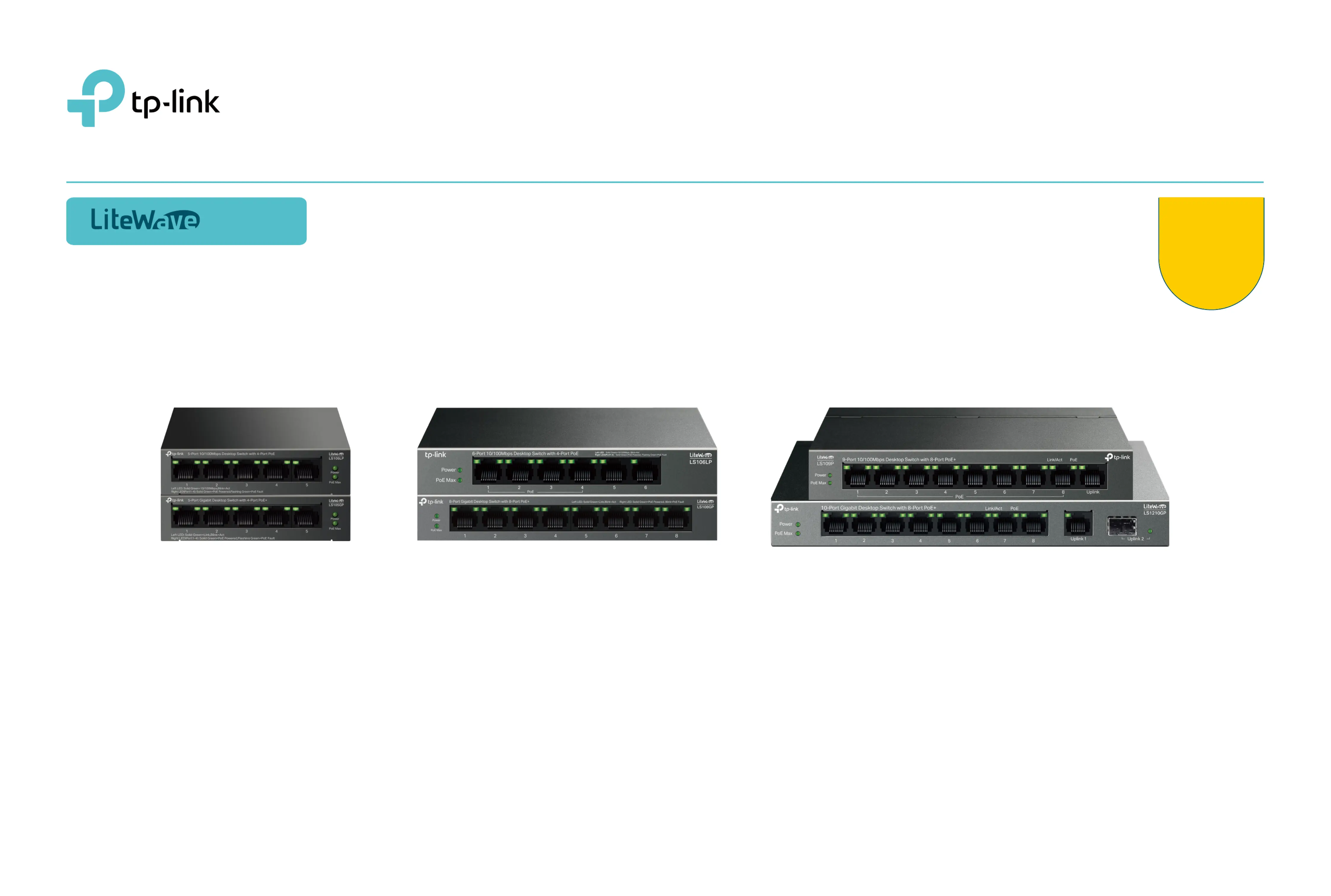

Product Pictures
Model LS105LP LS106LP LS109P LS105GP LS108GP LS1210GP
S rtanda ds IEEE802.3i, IEEE802.3u, IEEE802.3x,IEEE802.3af IEEE802.3i, IEEE802.3u,
IEEE802.3x,IEEE802.3af,
IEEE802.3at
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af,
IEEE 802.3a , IEEE 802.1pt
I . , IEE . , I . bEEE 802 3i E 802 3u EEE 802 3a ,
IEEE 802.3x, IEEE 802.3af, IEEE
802.3a , IEEE 802.1 , EEE 802.3zt p
In f 5 10/100 Mbps RJ45 ter ace Ports Ports Ports Ports Ports6 10/100 Mbps RJ45 9 10/100 Mbps RJ45 5 10/100/1000 Mbps RJ45 8 10/100/1000 Mbps RJ45 9 10/100/1000 Mbps RJ45 Ports
1 1000 Mbps SFP port
Netw eork Media (Cabl ) 10 SE-T: UTP cat r c / SBA ego y 3, 4, 5 able (maximum 100 m); EIA TIA-568 100Ω TP (maximum 100 m)
100 SE-TX: UTP catBA ego y 5, 5e able (maximum 100 m); EIA TIA-568 100Ω r c / STP (maximum 100 m)
10 SE-T: UTP cat r c / SBA ego y 3, 4, 5 able (maximum 100 m); EIA TIA-568 100 Ω TP (maximum 100 m)
100 SE-TX: UTP catBA ego y 5, 5e able (maximum 100 m); EIA TIA-568 100 Ω r c / STP (maximum 100 m)
1000 SE-T: UTP cat r c ovBA ego y 5e able or ab e (maximum 100 m); EIA TIA-568 100 Ω TP (maximum 100 m)/ S
PoE
PoE S rtanda d PoE S rtanda d: IEEE 802.3af IEEE 802.3af, IEEE 802.3at
PoE Port Por t rt Port 1–8, up t rt Por t rt Port 1–8, up t rtt 1–4, up o 15.4 W per po o 30 W per po t 1–4, up o 30 W per po o 30 W per po
PoE Power Budget 41 W*** 63 W*** 65 W*** 62 W*** 61W***
Auto Negotiation Yes
Auto MDI/MDIX Yes
Max Power C ptiononsum
2.40 W (220 V/50 Hz no PD
connected)
46.45 W (220 V/50 Hz with 41 W
PD connected)
2.53 W (220 V/50 Hz no PD
connected)
47.76 W (220 V/50 Hz with 41 W
PD connected)
3.67 W (220 V/50 Hz no PD
connected)
73.24 W (220 V/50 Hz with 63 W
PD connected)
4 W (220 V/50 Hz no PD
connected)
74.46 W (220 V/50 Hz with 65 W
PD connected)
5.53 W (220 V/50 Hz no PD
connected)
71.61 W (220 V/50 Hz with 62W
PD connected)
7.3 W (220 V/50 Hz no PD connected)
76.96 W (220 V/50 Hz with 61 W PD
connected)
Max Heat Dissipation
8.15 BTU/h (220 V/50 Hz no PD
connected)
157.93 BTU/h (220 V/50 Hz with
41 W PD connected)
8.61 BTU/h (220 V/50 Hz no PD
connected)
162.38 BTU/h (220 V/50 Hz with
41 W PD connected)
12.48 BTU/h (220 V/50 Hz no PD
connected)
249 BTU/h (220 V/50 Hz with 63 W
PD connected)
13.6 BTU/h (220 V/50 Hz no PD
connected)
253.16 BTU/h (220 V/50 Hz with
65 W PD connected)
18.81 BTU/h (220 V/50 Hz no PD
connected)
243.47 BTU/h (220 V/50 Hz with
62W PD connected)
24.82 BTU/h (220 V/50 Hz no PD
connected)
261.66 BTU/h (220 V/50 Hz with 61 W
PD connected)
F ding Modeorwar Store and Forward
Switch Capacity 1 Gbps 1.2 Gbps 1.8 Gbps 10 Gbps 16 Gbps 20 Gbps
MAC ress TAdd able A -learning A2k, uto , uto k, uto , uto-aging 4 A -learning A -aging
E t YE Por YE Por Por YE Por YE Porx end Mode S ( ts 1-4) S ( ts 1-4/ ts 1-8) S ( ts 1-2) S ( ts 1-4)
I olation Mode S (s No YE Por No YE Ports 1-8) S ( ts 1-8)
PoE uto A Rec er YE Por YE Por YE Por YE Por YE Porov y S ( ts 1-4) S ( ts 1-4) S ( ts 1-8) S ( ts 1-4) S ( ts 1-8)
Flow Conrol Yes
Fan Quanti yt 0
LED Power, Link/Act, PoE Status, PoE MAX
Dimensions 3.9*3.9*1.0 in.
(99.8 x 98 x 25 mm) 6.2*4.0*1.0 in.
(158 x 101 x 25 mm) 6.7X3.9X1.1 in.
(171 x 98 x 27 mm) 3.9*3.9*1.0 in.
(99.8 x 98 x 25 mm) 6.2*3.9*1.0 in.
(158 x 99 x 25 mm) 8.2*4.9*1.0 in.
(209 x 126 x 26 mm)
CE, CC, oHSF R

Produktspezifikationen
