Licence No. 0124
In ac cord anc e with AS/NZS 6400
Sussex Taps Pty Ltd
WATER RATING
www.waterr ating.g ov.au
The mo re
stars the mo re
water efcient
Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
Copyright © Sussex Taps.
60 mm
Spindle
Handle
Body
Sleeve
Locking
Washer
Fibre
Ceramic
Spindle
Cartridge
Set
Screw
NOTE:
Tee piece is to be breeched
between basin bodies.
Length of Tee piece may require cutting to suit.
Basin
Body
HOT COLD
Outlet Locknut
Breech
Locking Sleeve must be
fully tightened to the Basin Body
prior to tightening the assembly
from underneath.
Important Note:
0 Ring
O Ring
Plastic Washer
FRONT
Outlet Flange will
be labelled Front
installation
Tighten Basin Body
Locknut only after the
Locking Sleeves have
been fully tightened
32 - 35 mm
Maximum
thickness
28 mm
Basin Body L
ocknut
Locking Screw
Mounting
Surface

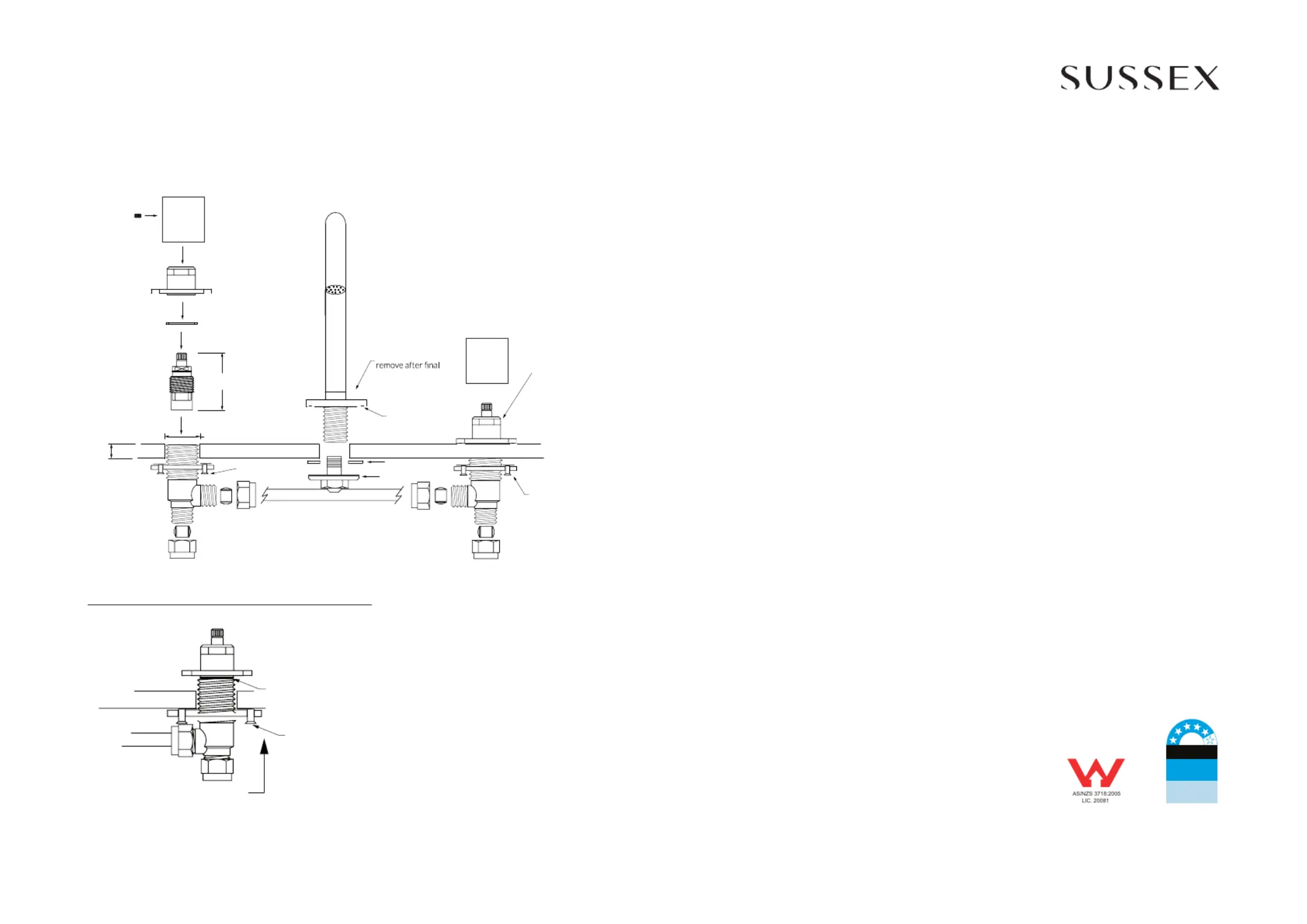

Raise Basin Body assembly through the
Mounting Surface to tighten Locking Sleeve. (As Shown)
Fig.1
The Fibre washer must
seal the Locking Flange
to the Basin Body.
Use locking screws
to secure from under
bench
Product code
Installation guidelines
Circa
RBS Basin set
Basin set
- The Spindles will be supplied fitted into the Basin Bodies when supplied.
- Determine the distance of the Basin/Hob holes and cut the breech to suit.
- Place the Outlet Locknut and Plastic Washer over the outlet fitting of the Breech.
- Align the breeched Basin Bodies and fit through the mounting surface.
- Fit the Fibre Washer over the spindles.
- Raise the assembled Basin Body through the mounted surface and fit the Locking Sleeves.
- Fully tighten Locking Sleeves and ensure O Ring is intact before lowering assembly onto
mounting surface. (See Fig.1)
- Working from underneath tighten the Basin Body Locknut to secure the assembly.
- Outlet must be secured with the FRONT label facing the user.
- Remove label after final installation.
- Fit the Outlet to Breech and secure by tightening the locknut, ensure O Ring is intact.
- Once all parts are tightened fit Handle and secure with Set Screw using Allen Key.
- Connect Hot and Cold feed lines to the Basin Bodies.
- Check all parts, fittings and connections for any water leaks.
RBS Basin set
RBSHS Basin sink set high
RBS-V Basin set - Vertex
RBSHS-V Basin sink set high - Vertex
sussextaps.com.au
