AS/NZS 3718:2005
LIC. 20081
-Maximum Mounting Surface thickness is . (i)30mm
-Hob Mixer: Clearance Hole. (ii)49mm - 51mm
-Outlet: 22mm - 24mm Clearance Hole. (iii)
-Mounting Surface must be flat and level.
-Prior to installing remove:
- (B) Clamping Ring
- (C) Clamping Plate
- (F) Outlet Washer
- (G) Locknut
-Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2021
-Recommended working water pressure 300 - 500 Kpa. Maximum water temperature is 65°C
-After installation, ensure that tapware functions correctly without leaks.
-Please ensure a copy of the Installation Instructions are left with the end user for future reference.
DBSHMSL
DBSHMSH
Duet
Basin Sink Hob Mixer Set
Product code
Install Preparation:
Plumbers note:
A
C
B
D

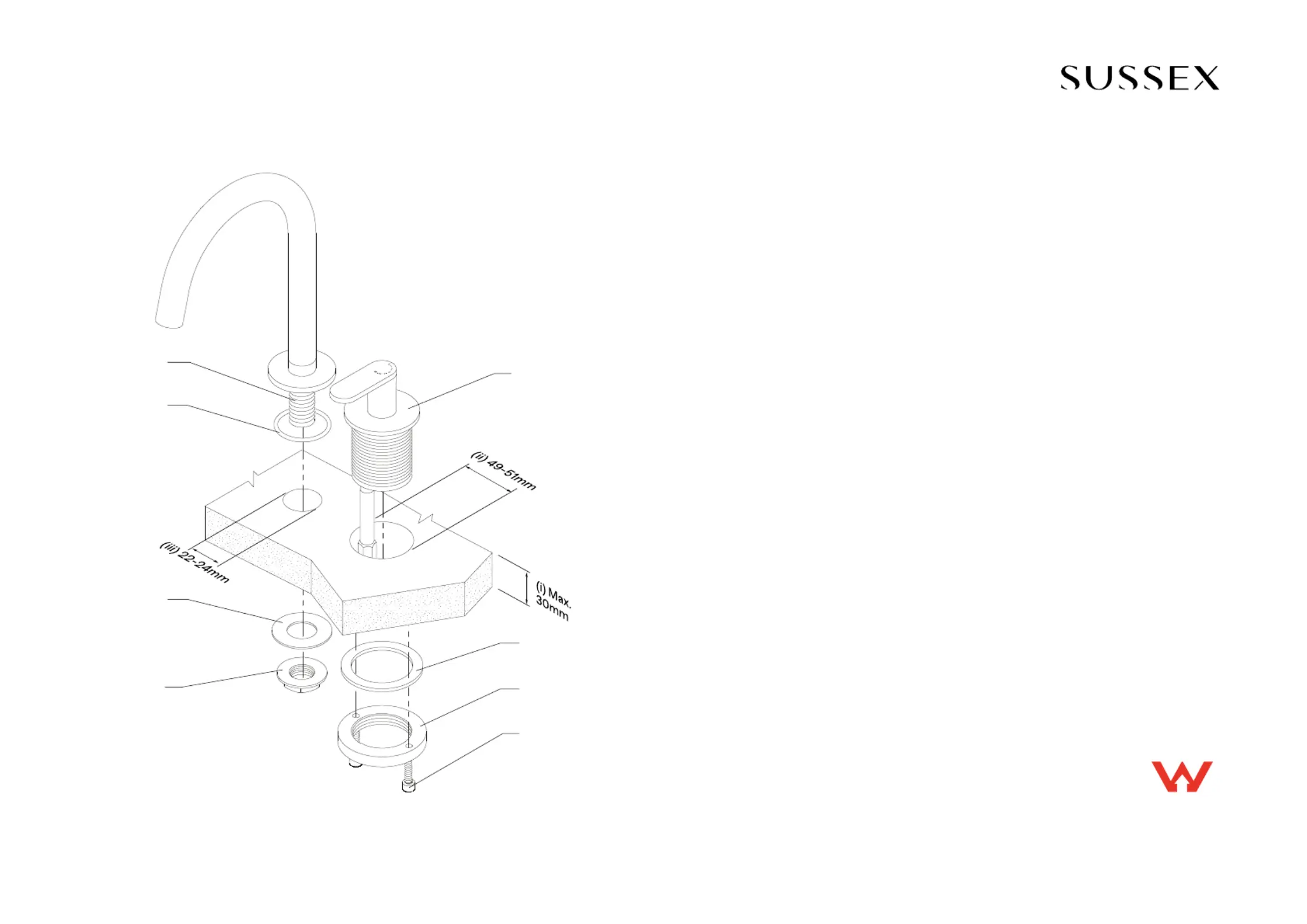

-(A) Hob Mixer
-(B) Clamping Ring
-(C) Clamping Plate
-(D) Fixing Screws
-(E) Outlet
-(F) O-Ring
-(G) Outlet Washer
-(H) Locknut
Product parts:
H
E
G
F
While we aim to ensure the specifications shown are correct at time of printing, Sussex Taps reserves the right to make modifications without prior notice.
Always use the physical product for accurate measurements. Dimensions are subject to change without notice. All measurements are shown in millimetres.
Copyright © Sussex Taps sussextaps.com.au
sussextaps.com.au
M
i
x
e
d
O
U
T
Step 1
Place the Hob Mixer (A) into the clearance hole making sure that the mixer is in the 'OFF'
position facing 'FRONT'.
'Mixed OUT' Extension is to be positioned to front facing operator.
'Mixed OUT'
Extension
Extension
Apply a SMALL amount
of sealant to seal surface
prior to fitting
Step 2
Working from underneath, Attach the Clamping Ring (B) to the Hob Mixer (A). Thread the
Clamping Plate (C) until it tightens the Ring. Secure the Hob Mixer by tightening the Fixing
Screws (D) using a 5mm Allen key- Tighten well.
Step 4
Lower Outlet (E) through mounting surface. Ensure O-Ring (F) is intact.
Note 'FRONT' label, arrange the flange (I) so the 'FRONT' label faces the basin.
Step 3
Attach Hot and Cold flexible hoses to the Hob Mixer. Attach the 'Mixed OUT' flexible hose to
the 'Mixed OUT' extension of the Hob Mixer.
A
A
C
B
D
F
I
E
