Seite 1/8
AS/NZS 3718:2005
LIC. 20081
-The In-wall (Masterfit) is supplied and is to be used in conjunction with this Tapware.
-Secure a nogging (i) back from the front of the stud. Attach the Wall Masterfit to the nogging. 45mm
-Ensure the Masterfit is mounted square and parallel between the Wall Studs.
-To fit correctly, the thickness of the finished Wall coverings is calculated between 20mm and 35mm (ii)
-If the wall coverings and Tap Seat Body do not sit within the range specified. Please contact manufacturer .
-Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2021
-Recommended working water pressure 300 - 500 Kpa. Maximum water temperature is 65°C
-After installation, ensure that tapware functions correctly without leaks.
-Please ensure a copy of the Installation Instructions are left with the end user for future reference.
DWBS165
DWBS200
DBS165
DBS200
Duet
Wall basin/bath set
Product code
Rough-in:
Plumber note
A1
A
A2
A3
B
C
D

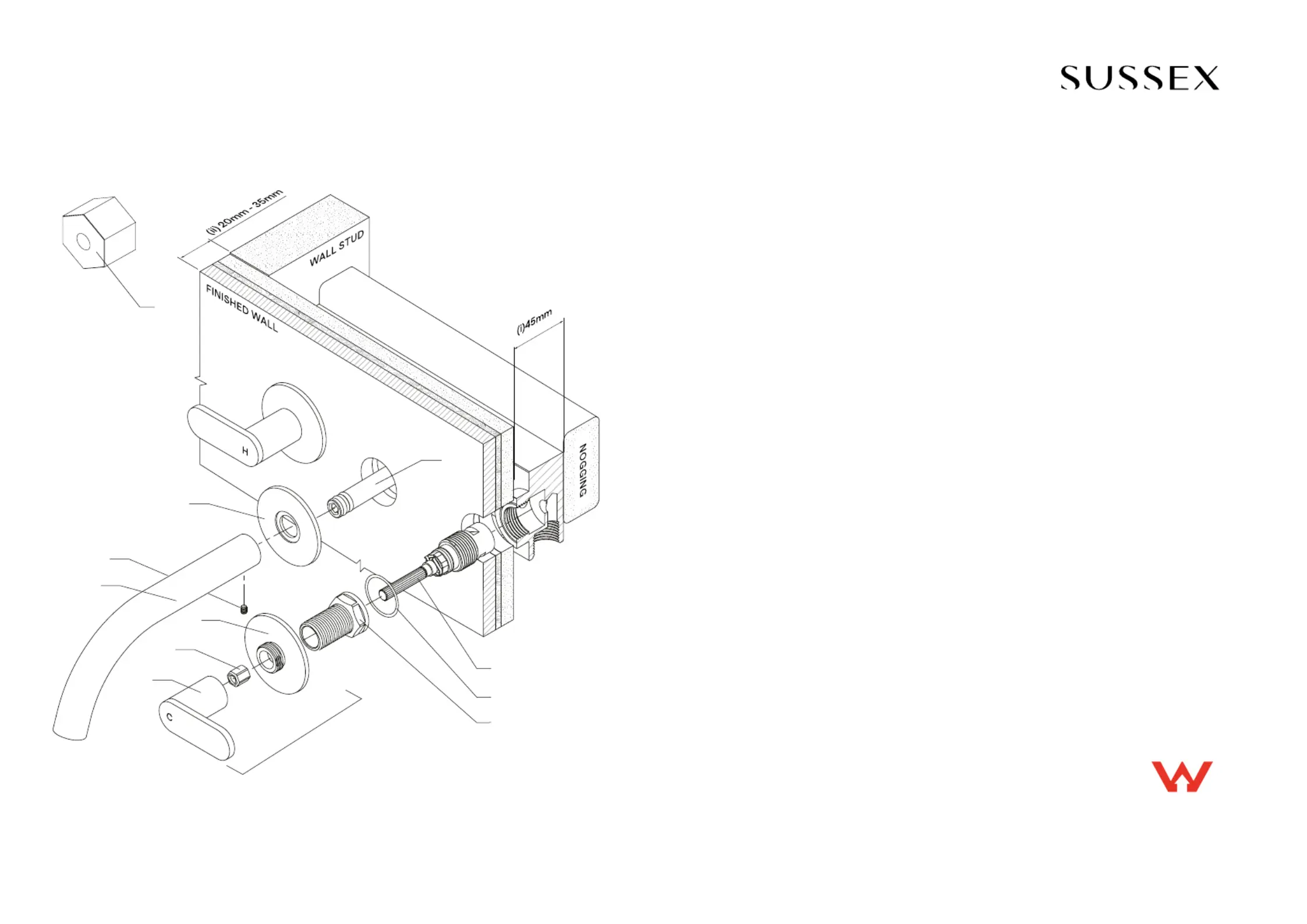

-(A) Handle Assembly (consisting of A1 - Handle, A2 - Spindle Adapter and A3 - Dress Ring).
-(B) Locknut.
-(C) Fibre Washer.
-(D) 90mm Spindle.
-(E) Wall Outlet
-(F) Set Screw
-(G) Dress Ring (for Outlet)
-(H) Supply Post
-(I) Spindle Sizing Gage
Product parts
H
E
F
G
I
While we aim to ensure the specifications shown are correct at time of printing, Sussex Taps reserves the right to make modifications without prior notice.
Always use the physical product for accurate measurements. Dimensions are subject to change without notice. All measurements are shown in millimetres.
Copyright © Sussex Taps sussextaps.com.au
sussextaps.com.au
Step 4
Seal the wall penetration. Then screw the Dress Ring (A3) onto the Locknut (B) and secure using
a spanner.
Step 2
Cut and Deburr Locknut (B). Refit on Spindle (D) with Fibre Washer (C) and tightening well using
a tube spanner.
Step 1
Measure the amount of Locknut (B) protruding from the finished wall and mark the Locknut
flush with the wall. Remove Locknut (B) for cutting.
B
B
B
Step 3
The Locknut (B) must be cut to be flush or slightly behind the finished wall, as per diagram.
B
FIT OFF
A3
B
D
