Seite 1/8

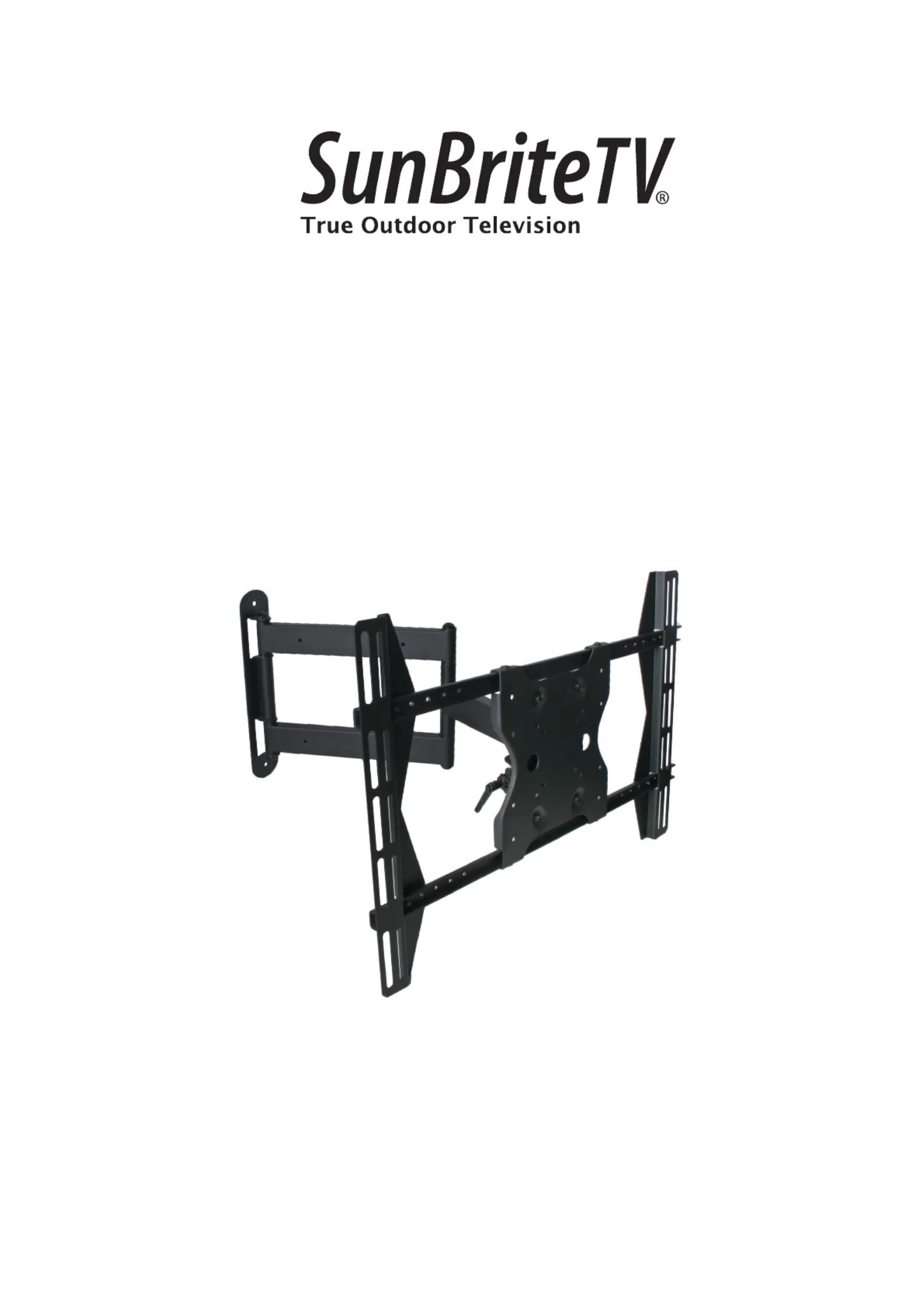

INSTALLATION MANUAL
SB-WM-ART1-M-BL
Weatherproof Universal Single-Arm Articulating Mount
for Medium Displays
2
WARNING
The maximum weight of this wall mount is 90 lbs (41 kg). Use with heavier than the
maximum weight indicated may result in instability causing possible injury.
Ensure these instructions are thoroughly understood before attempting installation. If unsure of any part of the installation
process, contact a professional installer for assistance.
The wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the
structure must be reinforced. Installer is responsible for verifying the wall/mounting surface and the anchors used can support
the total load of the installation.
Safety gear and proper tools must be used. Failure to do so can result in property damage and/or serious injury.
A minimum of two people is required for this installation and it is highly recommended that this product be installed by qualiîš¿ed
professionals.
Follow all instructions and recommendations regarding suitable locations for display installation. Consult the display equipment’s
documentation for information relative to its requirements.
NOTE: This mount supports display mounting from VESA 75x75 up to 600x400.
SPECIFICATIONS BOX CONTENTS TOOLS REQUIRED
• Wall Arm Assembly (1) • Power Drill
• •Adapter Brackets (2) 1/4" & 5/16" Drill Bits
• • LevelAdapter Plate (1)
• SunBrite Adapter Bars (4) 1/2" (13mm) Wrench•
• • HammerCable Covers (2)
• •Hardware Kit (1) Stud Finder
• Maximum Load: 90 lbs (41 kg)
• Maximum Extension: 24-3/8"
• Wire Management
• Pan/Swivel Range: 180°
• Tilt Range: -5° /+ 15°
•Weather Resistant Coating
• Stainless Steel Mounting Hardware • Template (1) Phillips Screw Driver•
HARDWARE
IMAGE DESCRIPTION ITEM QUANTITY
BAG 1
TV Mounting Bolts
(A) M4x10  (B)  M4x20 (C) M4x30
(D) M5x10 (E)  M5x20 (F) M5x30
(G) M6x10 (H) M6x20 (I) M6x30
(J) M8x10     (K) M8x20 (L) M8x30 (M) M8x40
4 of each size
Flat Washer (N) M5
(O) M8
16
8
Nylon Spacer (P) M4/M5
(Q) M6/M8
8
8
Square Washer (R) 36.2x2.5mm 4
Recessed Hole Spacer (S) Recessed Hole Spacer 4
Spacer (T) Spacer 4
BAG 2
Lag Bolt 3(U) M8x65
Concrete Anchor (V) Anchor 3
Lag Bolt Washer (W) Washer 3
Flange Bolt (X) M6x12 8
Button Head Flange Bolt (Y) M8x12 4
Hex Key – 1
Security Key – 4
3
INSTALLATION
Layout and Drilling
1. Determine general location of the display.
2. Use a stud îš¿nder to îš¿nd the nearest wall stud if applicable and mark their location.
3. Tape template at and level to wall surface, aligning the template’s slots with the stud markings on the wall.
NOTE: Use of a bead level is recommended.
NOTE: Template corners fold up to catch debris.
4. Use a pen or pointed object to mark bore locations.
ATTENTION: Before drilling, verify there is a minimum of 1-3/8" of concrete thickness to be used for the
concrete anchors. Ensure to mount in a solid part of the block, generally 1" minimum from
the side of the block. Cinder block must meet ASTM C-90 specifications.
ATTENTION: Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete
anchor.
ATTENTION: A standard electric drill on slow setting should be used to drill the holes instead of a hammer
drill to avoid breaking out the back of the hole when entering a void or cavity.
5. Drill holes in marked locations:
• Use 1/4" bit for drilling into wooden studs.
• Use 5/16" bit for drilling into concrete wall.
ATTENTION: Be sure to drill holes centered within studs or bricks. Do not drill into mortar joints.
Wall Mounting of Arm Assembly
1. Hammer concrete anchors (V) into wall as applicable.
ATTENTION: If anchors are going to be applied to a plastered concrete wall, the anchor must be recessed
beyond the plaster to reside fully in the concrete.
2. Apply washers (W) to lag bolts (U).
3. Hold Arm Assembly in place while applying lag bolts (U) with washers (W).
NOTE: A properly mounted Arm Assembly will be oriented so that its Keyed Notches side of the Arm Assembly Head
Mount is upward.
4. Tighten bolts (U) snugly without overtightening.
CAUTION: Overtightening can damage the bolts and reduce their holding strength.
Masonry Anchors (V)
(for concrete only)
Head
Mount
1/4" Holes for Studs
5/16" Holes for Concrete
Keyed
Notches
Washers (W)
Lag Bolts (U)
Arm Assembly
Figure 1
