SunBriteTV Deck/Planter Pole Installation Instructions
Part Number SB-DP46XA (For Wall Mount Part Nos. SB-WM46 and SB-WM46NA)
for SunBriteTV Model 4600HD Series
Page 1

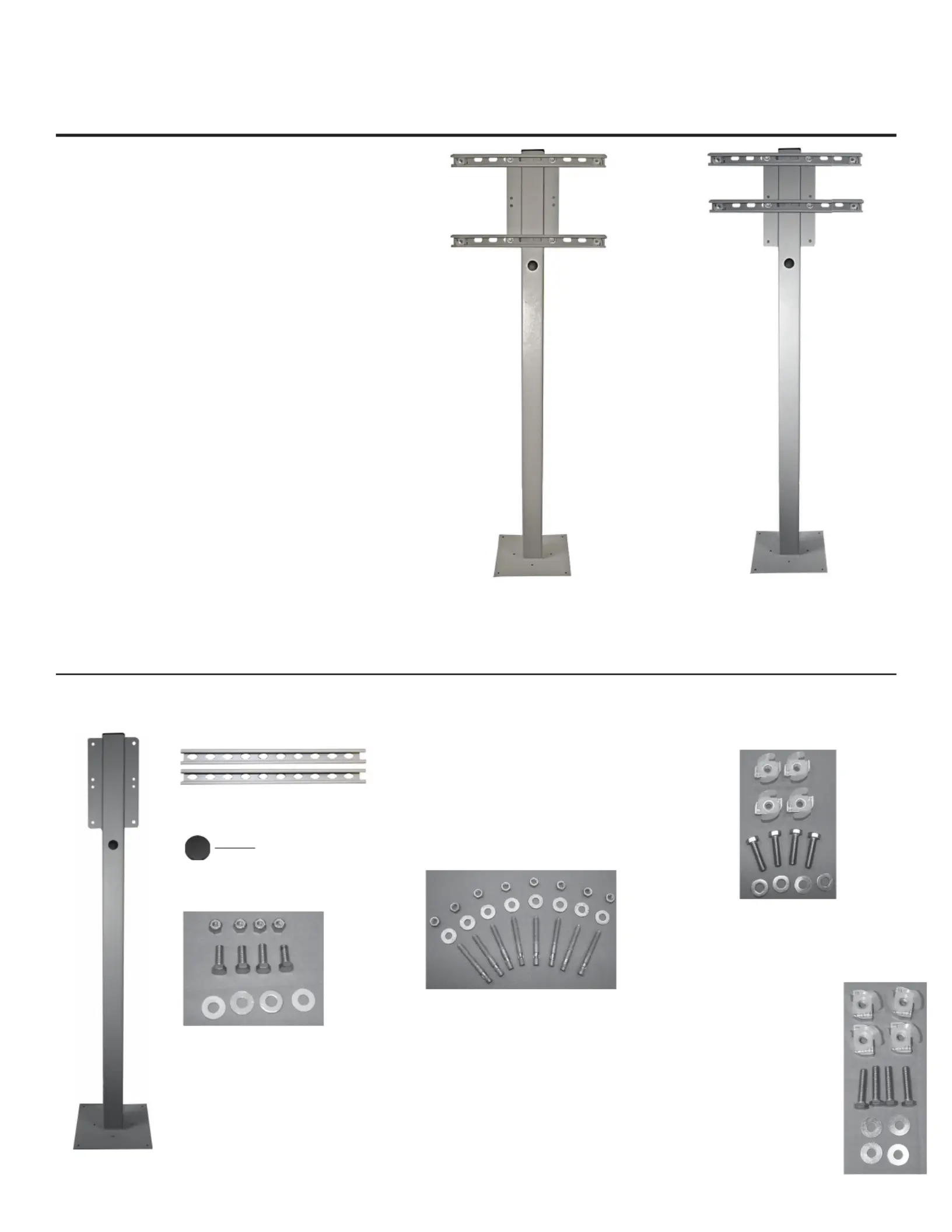

SunBriteTV Deck and Planter Pole SB-DP46XA
is designed to accommodate SunBriteTVs
Articulating Wall Mount SB-WM46 and
Non-Articulating Wall Mount SB-WM46NA
Con guration for SB-WM46
Articulating Wall Mount
Con guration for SB-WM46NA
Non-Articulating Wall Mount
This galvanized steel Deck and Planter Pole allows
installation in virtually any backyard setting. The
pole and supporting  ange can be set in concrete in
a planter or bolted directly to a  at surface, such as
patio or pool deck. Oversized entry and exit holes are
pre-drilled in the pole so wiring is concealed inside
the pole. The hardware provided is stainless steel.
Dimensions:
3” W, x 3” D x 62” H.
Welded mounting  ange for all poles is 12”W x 12” D.
&RQWHQWV Please check contents to be sure all parts are included. If items are missing, contact SunBriteTV customer
service immediately.
1 Pole
2 Horizontal Mounting Bars
Pole Mounting Hardware
8 1/4” Hex nuts
8 1/4” washers
8 Concrete Anchors
Hardware to Mount Articulating
Wall Mount SB-WM46
4 Unistrut Nuts
4 1-1/2” Bolts
4 3/8” Washers
Horizontal Mounting Bar
Hardware
4 3/8” Lock nuts
4 1” Bolts
4 3/8” Washers
Hardware to Mount
Non-Articulating
Wall Mount SB-WM46NA
4 Unistrut Nuts
4 1-1/2” Bolts
4 5/16” Washers
Cable Hole Cap
All rights reserved. © 2008 SunBriteTV® LLC
DISCLAIMER: SunBriteTV LLC intends to make this manual
accurate and complete. However, we make no claim that the
information contained herein covers all details., conditions or
variations, nor does it provide for every possible contingency
in connection with the installation or use of this product. The
information contained in this document is subject to change
without notice or obligation of any kind. SunBriteTV makes no
representation of warranty, expressed or implied regarding
the information contained herein. SunBriteTV assumes no
responsibility for accuracy, completeness or su ciency of the
information contained in this document.
Install Deck Planter Pole (Figure 2):
1. Use the Flange as a template to mark the locations of holes.
2. Drill 1/4” diameter x 1” deep holes using a concrete drill.
3. Use the 8 1/4” Concrete Anchors to mount the Pole.
4. Shim Pole level and plumb.
5. Secure using the 1/4” Nuts and Washers .
6. Orient the Pole so that Wall Plate faces the seating area.
3Install Deck/Planter Pole:
WARNING: TV must be installed at least 5 ft.
away from water’s edge.
SunBriteTV Deck/Planter Pole and Wall Mount Installation Instructions
for SunBriteTV Model 4600HD
Deck/Planter Pole Part No. SB-DP46X Wall Mount Part No. SB-WM46
:$51,1*79PXVWEHLQVWDOOHGDWOHDVW
IHHWDZD\IURPZDWHUVHGJH
TV Placement Guidelines (Figure 1):
SunBriteTVTM LCD televisions are twice as bright as most
indoor LCD TVs. The sun, however, delivers more than 30
times the brightness of our TVs. Therefore, it is important
that you do not place the TV where the screen faces direct
sunlight; otherwise, this will cause the image on the screen
to be washed out.
Intense direct sunlight falling on the screen over an extend-
ed period of time may cause dark spots to form on the screen
image. This is a characteristic of LCD TV technology, and is
a temporary condition that will go away after the screen is
pointed away from the sun.
For optimum viewing, SunBriteTV recommends the
following placement and installation guidelines:
Ideal placement is in an area where the TV is shaded by
trees, landscape and/or structures, or under a patio cover or
gazebo.
SunBriteTV recommends mounting the TV on SunBriteTV’s
articulating, tilt and swivel Wall Mount (Part No. SB-WM46) so
the TV screen can be turned away from the location of the
sun (see Figure 1).
The articulating wall mount also allows the TV to be rotated
away and angled down from any highly re ective surfaces,
such as water, white walls, concrete, etc.
SunBriteTV recommends using the SunBriteTV dust cover
(Part No. SB-DC46) when the TV is not in use, especially if
the sun is shining on the TV during the day.
Figure 1
Prepare Pole Location:
Chose an area that is away from standing water and sprinklers
(Irrigation water may contain minerals that can damage the
nish on the pole and TV.).
Bring the appropriate signal cables to the location (CATV,
Video, Audio, etc.).
If using the Pole in a planter:
Create an appropriately sized concrete pier with a level top
surface at least three inches above the grade.
If using the Pole in a deck:
Chose a at, level, shaded area away from sprinklers and standing
water.
1
2
Page 2
Page 3
4
SunBriteTV Deck/Planter Pole and Wall Mount Installation Instructions
for SunBriteTV Model 4600HD
Horizontal
Mounting Bar
Hole Positions
Install Articulating Wall Mount SB-WM46 to Deck/Planter Pole
(If you are Installing the Non-Articulating Mount SB-WM46NA, skip to step 5.)
Attach Horizontal Mounting Bar to Pole
There are 8 Horizontal Mounting Bar Holes at the top of the Deck Planter
Pole. Note that the Holes have been assigned Position numbers and
letters.
Position Row 1 and 4 are the rows that are to be used with the Articulating
Wall Mount SB-WM46.
1. Align the top Horizontal Mounting Bar so that the fourth hole from the
outside of the bar on the left side and right side line up to Position 1a and
1b. This step will center the bar to the pole (Figure 3).
2. Place the 3/8” Washer over the Mounting Bar Hole at Position 1a, and put
the 1” Bolt through the washer and Mounting Bar, to secure the Washer in
place (Figure 4). From the back side attach the 3/8” Lock Nut and secure
tightly Figure 5). Repeat steps at Position 1b, to complete installation of
the top Mounting Bar.
3. Align the bottom Horizontal Mounting Bar so that the fourth hole from
the outside of the bar on the left side and right side line up to Position 4a
and 4b. This step will center the bar to the pole.
4. Place the 3/8” Washer over the Mounting Bar Hole at Position 4a, and put
the 1” Bolt through the Washer and Mounting Bar, to secure the Washer in
place. From the back side attach the 3/8” Lock Nut and secure tightly. Repeat
steps at Position 4b, to complete installation of the bottom Mounting Bar.
D E
D E
Deck Planter Pole
D
D
D
D
E
E
E
E
Horizontal
Mounting Bars
Attach Articulating Wall Mount SB-WM46 to
Deck/Planter Pole
Figure 6
Figure 8 Unistrut Nut Placement
Figures 9 A and B
1. Install all four Unistrut Nuts on the Horizontal
Mounting Bar:
A. Align the channel of the Unistrut Nut with the
Mounting Bar Lip (Figure 6).
B.. Slide the Unistrut Nuts in 2.25 from each end of
Mounting Bar. The Unistrut Nuts will be 16 inches
apart, and in position to accept the Wall Mount
(Figure 7).
2. Attach Articulating Wall Bracket (sold separately) to the
Horizontal Mounting Bar
A. Attach the two 1-1/2” Bolts and 3/8” Washers to the
two Unistrut Nuts on the top Mounting Bar. Fasten
loosely enough that the Articulating Wall Mount
bracket will  t between the Washer and the Unistrut
Nut (Figure 8).
B. Align the round Keyhole opening with the Washers
and Bolts, and hang the Wall Mount so that it sits
behind the Washer. Slide the Wall Mount to the left.
Tighten Bolts to hold Wall Mount Securely to the pole.
(Figures 9 A and B..).
C. With the remaining two Bolts and Washers, secure the
Wall Mount to the lower Horizontal Mounting Bar (Figure 10).
3/8” Washer
3/8” Unistrut Nut
1-1/2” Bolt
Unistrut Channel
Pole Plate Lip
1-1/2” Bolt
Wall Mount
Keyhole Opening
3/8” Washer
Figure 7
Wall Mount
Horizontal Mounting Bar
Figure 10
Figure 3
Front
1” Bolt
3/8 Washer
3/8 Lock Nut
Back
Figure 4 Figure 5
To complete installation, go to Step 6 on Page 5.
