TECHNICAL MANUAL

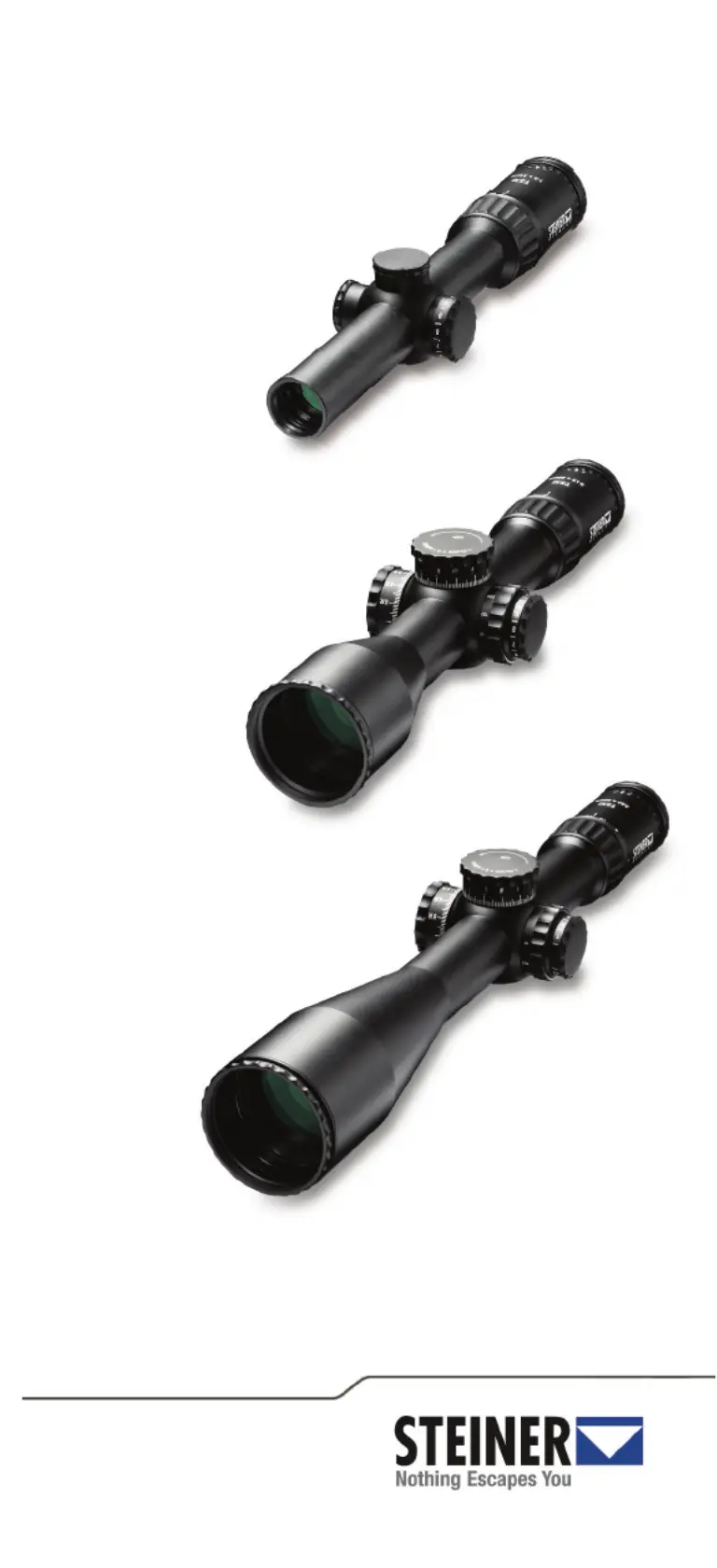

T5X TACTICAL RIFLESCOPE
i
TABLE OF CONTENTS Page
Mounting The Scope.........................................................2
Eyepiece Focusing.............................................................2
Windge / Elevation Adjustment.....................................3
Setting The Zero Stop......................................................4
Turret Cap Replacement .................................................4
Parallax Focus Adjustment .............................................5
Steiner Reticles .................................................................6
Disabling The “Auto Off” Function ................................7
Replacing The Battery .....................................................7
Accessories ........................................................................8
Care & Maintenance .........................................................9
Scope Specifications.......................................................10
Steiner Heritage Warranty..............................................11
INTRODUCTION
Steiner is one of the largest manufacturers of
high-quality optics in the world. Steiner products
represent the highest level of precision and technology.
Your T5Xi riflescope is proudly designed, machined
and assembled in the USA for precision shooters who
demand the best.
This manual outlines the basic operation and maintenance
of the scope.
Objective Lens
Power Ring
Eyepiece Focus
Elevation Turret
1
Windage Turret
30mm Tube (1-5x)
34mm Tube (3-15x, 5-25X)
Parallax Adjustment
Illumination
Knob
Diopter Locking Ring
MOUNTING THE SCOPE
Quality components ensure that your scope will
remain safely and securely mounted, while providing
maximum accuracy. The 1-5x24mm model requires
30mm rings. The larger tubes on the 3-15x50mm and
5-25x56mm require 34mm rings. Steiner recommends
using high-quality rings and bases.
Read the manufacturer’s directions regarding the
installation of mounts and rings.
WARNING! Make sure your firearm is unloaded
before attempting to mount the scope on your
firearm. Practice safe firearms handling at all times.
EYEPIECE FOCUSING
The eyepiece can be focused so that the reticle appears
sharp and black to your eyes. Adjusting the focus is
quick and easy to do. The T5Xi riflescopes feature a
diopter locking ring that ensures it cannot be moved
once the reticle is focused for your eye. To adjust the
eyepiece, follow this procedure:
1. Loosen the diopter locking ring by turning it
counter-clockwise.
2. With the locking ring loosened, the diopter can be
easily adjusted.
3. Point the scope at the sky or a plain wall and take a
quick glance through the scope. If the reticle appears
sharp and black, no further adjustment is necessary.
4. If the reticle is not clear, use quick glances through
the scope while rotating the focus ring until the reticle
is sharp and black.
5. When the reticle is focused for your eye, tighten the
locking ring by turning clockwise. Do not over tighten.
NOTE: Do not look through the eyepiece as you turn the
focus ring. Your eyes will adjust to the out-of-focus condition.
2
Diopter
Locking Ring
