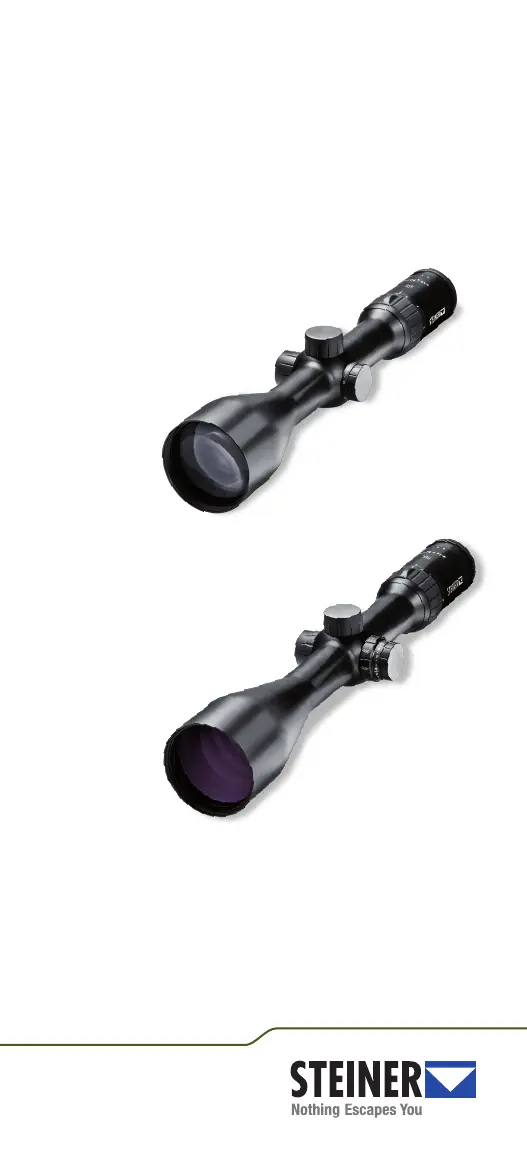

H4Xi RIFLESCOPES
INTRODUCTION
Steiner is one of the largest manufacturers of
high-quality optics in the world. Steiner products
represent the highest level of precision and
technology.
Your H4Xi riflescope is proudly designed, machined
and assembled in the USA for big game hunters who
demand the best.
This manual outlines the basic operation and
maintenance of the scope.
Diopter adjustment
Zoom adjustment
Windage and height adjustment of
the reticle
Parallax adjustment
(4-16x56 model only)
Illumination knob
Objective
Ocular
2
EYEPIECE FOCUSING AND MAGNIFICATION
ADJUSTMENT
The ocular should be focused such that the reticle appears
sharp and black. Follow these two steps for quick and easy
adjustment:
1 Point the riflescope at a bright surface (e.g. wall) and
glance through the riflescope. If the reticle appears
already sharp and black, no further adjustment is
required.
2 If this is not the case, turn the diopter adjustment, until
the reticle is sharp and clear.
For distances less than 100 yards, we recommend the lowest
magnification to avoid problems with focusing on the image
instead of the reticle. To turn the ring to the left. To lower the
magnification, turn the ring to the right.
WINDAGE AND ELEVATION ADJUSTMENT
The windage and height adjustment for precise reticle
calibration is located behind the protective covers. The
reticle adjustments are calibrated so that 1 click corresponds
to 1/4-inch/100 yards. The windage adjustment is located on
the right side of the riflescope and the elevation adjustment
on the top. Turn clockwise
(marked “UP”) to move
the impact point upwards.
Turn counterclockwise
(marked “DN”) to move it
downwards. The windage
adjustment operates the
same. The individual clicks
can be felt and heard.
Warning
Never use the riflescope to look at the sun or other
bright light sources! This will damage your eyes!
3
