X3-F4

2017+ Can-Am Maverick p1-x3 & p1-x3 Ma

4” Speaker Dash Pods

SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030

www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751

Please read and understand these

instructions completely before

installation to avoid possible injury, or

damage to the accessory or vehicle.

WARRANTY INFORMATION:

All SSV Works enclosures are covered by a limited lifetime warranty against defects

in material or workmanship. All SSV Works Electronics are covered by a limited 1 year

warranty against defects in material or workmanship. All SSV Works Speakers are

covered by a limited 1 year warranty against defects in material or workmanship. Labor

for replacement of defective components is not covered. Contact SSV Works for further

warranty information.

1. X3-F4 Enclosures (1 pair)

2. Acoustic Lens (1 pair)

3. M6 x 1.0 Screws x 4

TOOLS NEEDED FOR INSTALLATION PARTS LIST

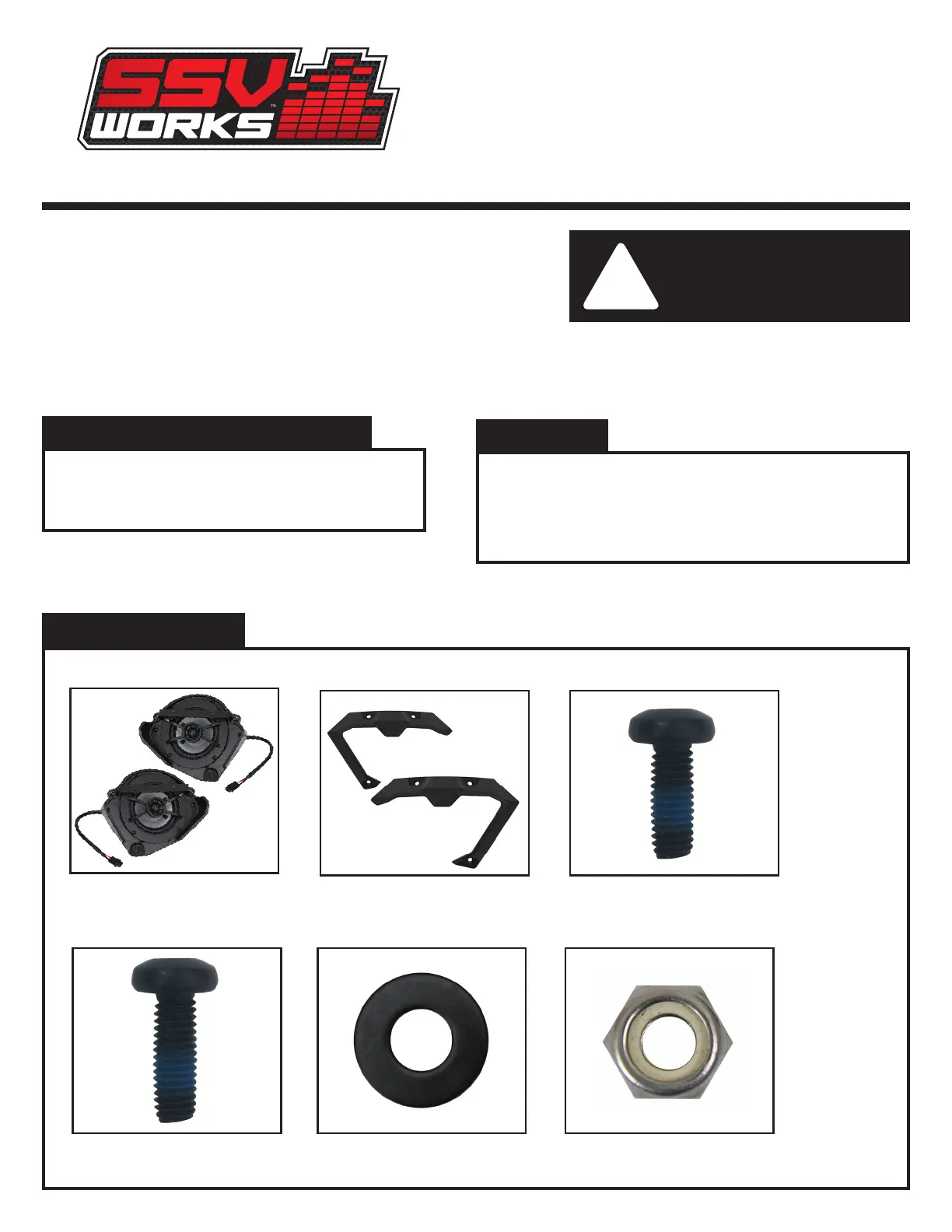

PARTS LIST IMAGES

4. M6 x 25mm Screws x 2

5. M6 Washers x 6

6. 10mm Nut x 2

3. M6 x 1.0 Screws x 4

4. M6 x 25mm Screws x 2

2. Acoustic Lens (1 pair)

1. X3-F4 Enclosures

(1 pair)

5. M6 Washers x 6 6. 10mm Nut x 2

- T-30 Torx Driver

- Drill 1/4” Drill bit

- 10mm Wrench or Rachet

- Utility Knife

C. Using a utility knife, cut off the 4 tabs ush to the panel

D. Drill a hole using a 1/4” drill bit at the factory dimple marks (as shown above) on the outside dash panel around the speaker grille.

B. Pry off the 4 clips on the base under the empty space for the

speaker

X3-F4

C1 C2

D2D1

A. Remove the top dash panels on the driver (7 screws with 2

clips) and passenger side (5 screws with 2 clips).

E. Place the acousic lens on top of the factory grille, line up the

holes and insert the 2 top M6x1.0 (shorter) screws and washers.

F. Place the speaker pod under the dash panel and line up the

holes on the speaker pod with the 2 top screws and loosely

mount the pod to the dash panel.

Installation complete. Reassemble the dash panel.

H. Route the speaker wire away from any moving parts and any

sharp metal, then connect to the amplier.

Connecting the X3-D4 using the pre-installed, two-pin connector

will require an optional SSV Works plug-&-play harness (WP-

H1149 - sold separately). If you are not using the WP-H1149

harness, simply cut off the two-pin connector and follow the

wiring instruction below.

G. Insert the M6x25mm screw by pushing it through the acoutic lens,

dash panel and speaker pod. Tightly screw down using the washer

and 10mm nut. Now tighten the previous 2 M6x1.0 screws.

X3-F4

WIRING INSTRUCTIONS

For proper sound, ensure the speaker polarity is correct connect the “+” to the “+” and the “-“to the “-“from the speaker wire to the amplier. If using with

an SSV Works complete system refer to the amplier wiring instructions for more detailed wiring information.

“+”

“

”

“

”

“

”

“

”

Amplier
