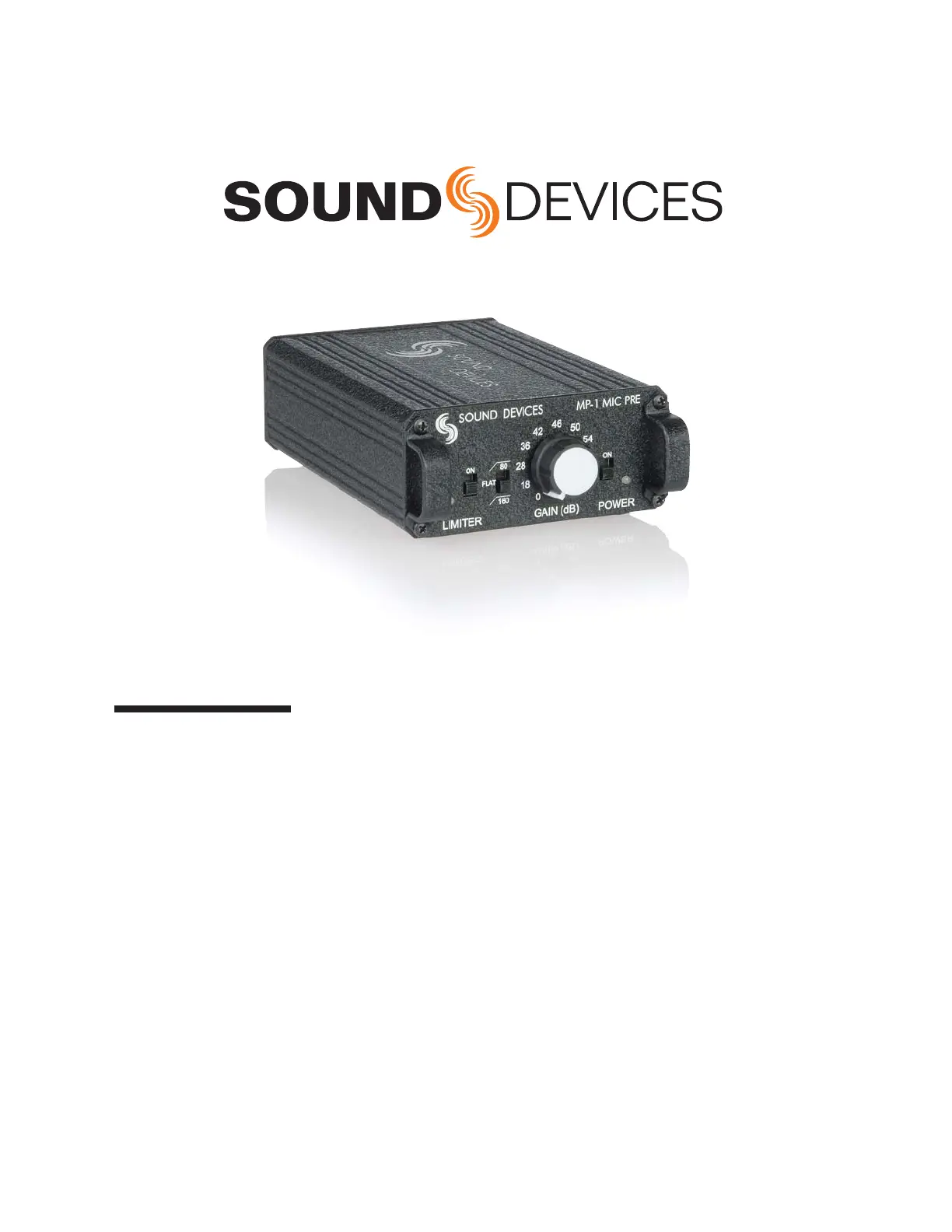

MP-1
Microphone Preamplifi er
User Guide and Technical Information
MP-1 Microphone Preamplifier
User Guide and Technical Documentation
page 4
Sound Devices’ MP-1 is a portable, battery-powered microphone preamplifi er with phantom power. De-
signed for high-resolution fi eld production, this studio-quality mic pre is ideal for critical radio, televi-
sion, and fi lm production applications.
With its rugged mechanical and electrical construction, compact size and high-quality components, the
MP-1 will provide years of superb audio performance under the most punishing fi eld conditions.
Audio Performance
• Maximum of 66 dB of gain, adjustable in eleven discrete steps for accurate, repeatable gain set-
tings
• Dynamic range exceeding 120 dB
• 20 Hz to 50 kHz audio bandwidth
• High immunity to RF interference due to transformers, RF fi ltering, and all-metal construction
• High current line output driver capable of driving very long cable runs
Transformer-Balanced
• Premium quality input transformer provides superior sonic quality and freedom from interfer-
ence problems
• Custom-designed output transformer provides line driving ability with freedom from interfer-
ence problems
Limiter
• Extended range peak limiter via dual opto-isolators makes unit virtually “unclippable”
Battery Powered
• Internal battery power (two AA) for convenient, low cost power
• Battery life greater than 24 hours (phantom power off)
Durable Mechanical Construction
• High strength extruded aluminum chassis with protective metal end rails to withstand punish-
ing fi eld conditions
• Easy access battery compartment for quick battery changes
Phantom Power
• Selectable 48-volt and 12-volt phantom power for condenser and dynamic microphones
High-Pass Filter
• Two selectable corner frequencies, 80 and 160 Hz, 6 dB per octave
page 5
Frequency Response: 20 Hz to 22 kHz, +0.1, -0.5 dB, –1 dB at 50 kHz (relative to 1 kHz level with 150 ohm source)
-6
+1
-5
-4
-3
-2
-1
+0
d
B
u
10 100k20 50 100 200 500 1k 2k 5k 10k 20k 50k
Hz
Gain: 0 dB to 66 dB input to output, switch selectable
Gain Accuracy: +0.6, –0.1 dB with reference to front panel gain markings
(150 ohm source, 100k ohm load impedances)
Equivalent Input Noise: –126 dBu (–128 dBV) minimum
(150 ohm source, fl at weighting, 22–22 kHz bandwidth, gain setting 36 dB or greater
Output Clipping Level: +22 dBu minimum with 100k ohm load
+20 dBu minimum with 600 ohm load
Input Clipping Level: +4 dBu minimum at the 0 or +18 dB gain setting
Dynamic Range: 122 dB minimum at the +18 dB gain setting
THD + Noise: 0.05% maximum (from 50 Hz – 22 kHz @ +4 dBu output level, +46 dB gain setting)
Common Mode Rejection Ratio: 100 dB minimum at 80 Hz
60 dB minimum at 10 Hz
Input: Transformer-balanced, 2000 ohm input impedance
Output: Transformer-balanced, 130 ohm output impedance
Low Cut: 80 Hz or 160 Hz (switch selectable), 6 dB per octave
Phantom Power: 12-volt or 48-volt (switch selectable) per DIN 45 596 specification
Limiter: Limits to +17 dBu output level 10:1 limiting ratio; 5 mS attack time, 100 mS release time;
Amber/Red LED indicates limiting/clipping
Internal Voltage Rails: ±15 V, regulated
Power: 2 AA batteries, 24 hours life typical with +4 dBu signal into 600 ohms, no phantom power.
Power LED: Green indicates power and good battery. Red indicates power with low batteries. LED turns red when
approximately 4 hours of battery life remain.
Polarity: Mic input to line output is non-inverting
Operating Temperature Range: 0° to 70° C 32° to 160° F
Dimensions: 43 mm x 94 mm x 140 mm (h x w x d)
(1.7” x 3.7” x 5.55”)
Weight: (unit only): 0.56 kg, 1.24 lbs (unit only)
0.86 kg, 1.90 lbs (packaged)
Certification: Meets FCC Part 15 Class B
Eligible to bear CE mark (see conformance statement)
