Seite 1/24

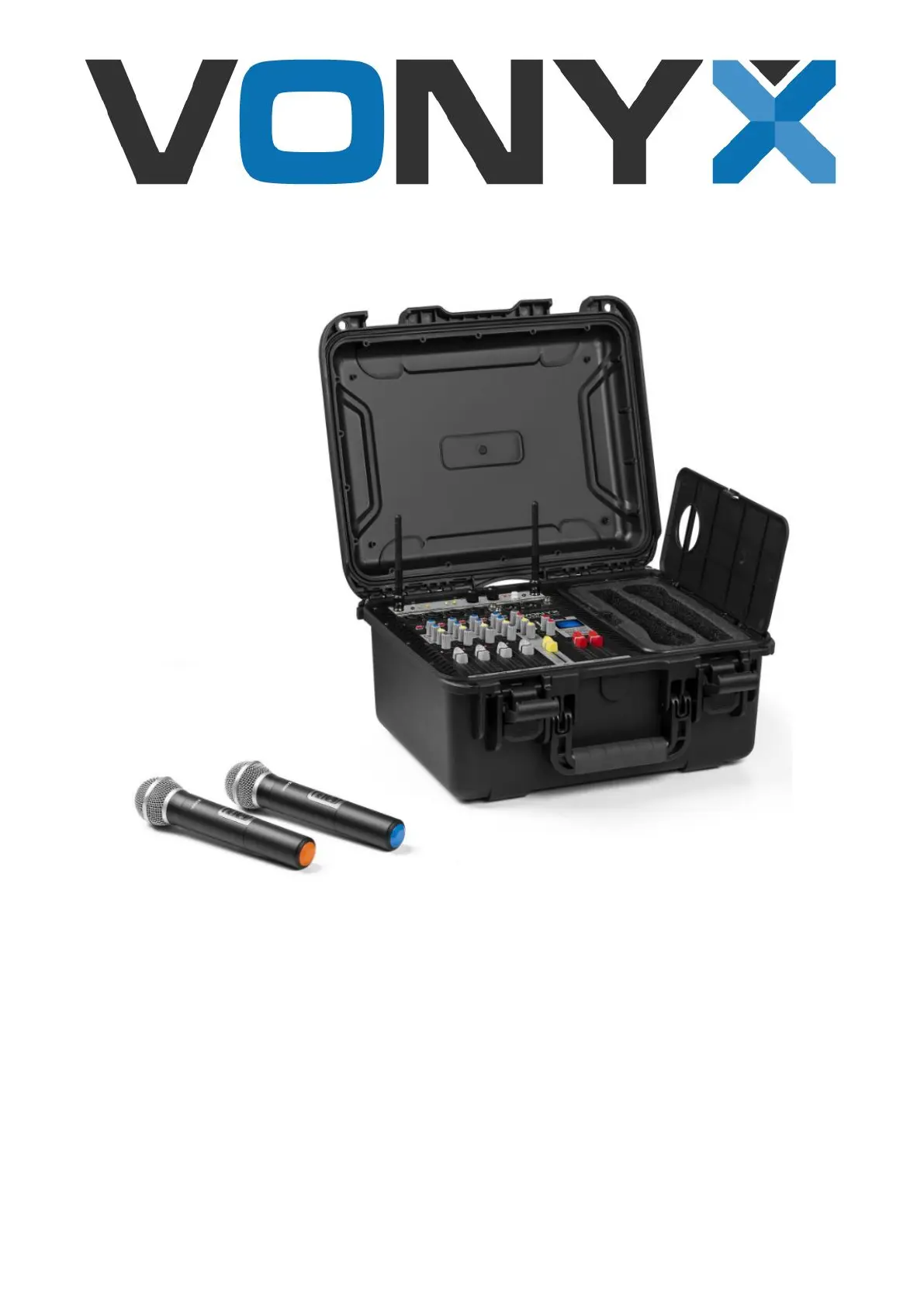

VMA106 Music Mixer
Ref. nr.: 2.670 17
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
INSTRUKCJA OBSŁUGI
NÁVOD K POUŽITÍ
V1.1
2
ENGLISH
Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to
benet fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions
to avoid re and/or electrical shock. Repairs must only be carried out by a qualied technician in order to avoid electrical shock.
Keep the manual for future reference.
- Prior to using the product, please ask advice from a
specialist. When the product is switched on for the rst
time, some smell may occur. This is normal and will
disappear after a while.
- The product contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the
product. This may cause electrical shock and
malfunction.
- Do not place the product near heat sources such as
radiators, etc. Do not place the product on a vibrating
surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the product from a mains outlet,
always pull the plug, never the lead.
- Do not plug or unplug the product with wet hands.
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualied technician.
- If the product is damaged to such an extent that internal
parts are visible, do NOT plug the product into a mains
outlet and DO NOT switch the unit on. Contact your
dealer. Do NOT connect the product to a rheostat or
dimmer.
- To avoid re and shock hazard, do not expose the
product to rain and moisture.
- All repairs should be carried out by a qualied technician
only.
- Connect the product to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used
for a longer period of time, unplug it from the mains. The
rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of
time, condensation may occur. Let the unit reach room
temperature before you switch it on. Never use the
product in humid rooms or outdoors.
- To prevent accidents in companies, you must follow the
applicable guide lines and follow the instructions.
- Do not repeatedly switch the product on and o. This
shortens the life time.
- Keep the product out of the reach of children. Do not
leave the product unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice from
a specialist.
- Do not force the controls.
- his product is with speaker inside which can cause If t
magnetic eld. Keep the product at least 60cm away
from computer or TV.
- If this product have a built-in lead-acid rechargeable
battery. Please recharge the battery every 3 months if
you are not going to use the product for a long period of
time. Otherwise the battery may be permanently
damaged.
- If the battery is damaged please replace with same
specications battery. And dispose the damaged battery
environment friendly.
- If the product has fallen, always have it checked by a
qualied technician before you switch the product on
again.
- Do not use chemicals to clean the unit. They damage the
varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the product o prior to unplugging it from the
mains and/or other equipment. Unplug all leads and
cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this product.
- Keep the original packing material so that you can
transport the product in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sucient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that p2-he should
read and adhere to.
The product has been certied CE. It is prohibited to make any changes to the product. They would invalidate the CE certicate
and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/ °F 41 and
35°C/ °F 95 .
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The specications are typical. The actual values can slightly change from one unit to the other.
Specications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also
invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the
warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety
recommendations and warnings. This is also applicable to all damages in whatever form.
3
UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to
drastic temperature uctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might
damage your device. Leave the device switched o until it has reached room temperature.
POWERSUPPLY
The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains
voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must
also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or re.
CONTROLS
1. UHF ANTENNAS
2. UHF WIRELESS STATUS
LED’s showing wireless connection (RF) and audio
registration (AF).
3. VOLUME CONTROLS
Rotate to adjust the volume level for microphone A and B.
4. MUTE
Press to (un)mute the microphone input.
5. MICROPHONE/LINE/GUITAR INPUT
Balanced XLR and 6.3mm (1/4”) combo input jacks for connecting microphone, musical instrument
or audio device (channel 1- 4).
6. +48V PHANTOM SWITCH
This switch toggles phantom power on and o. When the switch is on the mixer supplies +48V
phantom power to that channel. Turn this switch on when using one or more phantom-powered
condenser microphones (channel 1- 4).
7. LINE/INSTRUMENT
Press to switch between instrument (high impedance; guitar) and line input (low impedance).
8. HIGH AND LOW
Rotate to adjust the low- (bass) and high (treble) frequency levels.
9. FX
Rotate to adjust the volume level of the corresponding channel that is fed to the eects processor.
10. PAN
Rotate to adjust the channel signal position to left or right in the stereo mix.
11. FADER
Slide to adjust the channel volume. Pay attention to the peak LED, showing the channel status.
When the LED is illuminated, the input signal is too high. Lower the volume level immediately.
12. STEREO LINE INPUT
6.35mm stereo line input jacks (left and right).
13. STEREO LINE INPUT SENSITIVITY
Press to change the input sensitivity between +4dB and -10dB.
14. STEREO LINE INPUT BALANCE
Rotate to adjust the balance to left or right in the stereo mix.
15. STEREO LINE INPUT VOLUME
Rotate to adjust the volume level of the stereo line input.
16. FX CONTROLS
Rotate to adjust the eects parameters.
REP: Repetitions. Adjust how many times the echo repeats.
DEL: Delay. Adjust the time interval between each echo.
17. FX FADER
Slide to adjust the volume of DSP in main mix.
18. MAIN OUTPUT
XLR balanced output connectors for connecting to (for example) active speakers, power ampliers
or other audio devices.
19. HEADPHONE OUTPUT
6.3mm jack headphone monitor output.
20. VU METER
Main output volume meter. Pay attention to the peak LED, showing the channel status. When the
LED is illuminated, the volume level is too high. Lower the main volume level immediately.
21. MP3 VOLUME
Rotate to adjust the MP3 player volume level.
22. HEADPHONE VOLUME
Rotate to adjust the headphone output volume.
23. USB
USB port interface for MP3 playback and recording.
