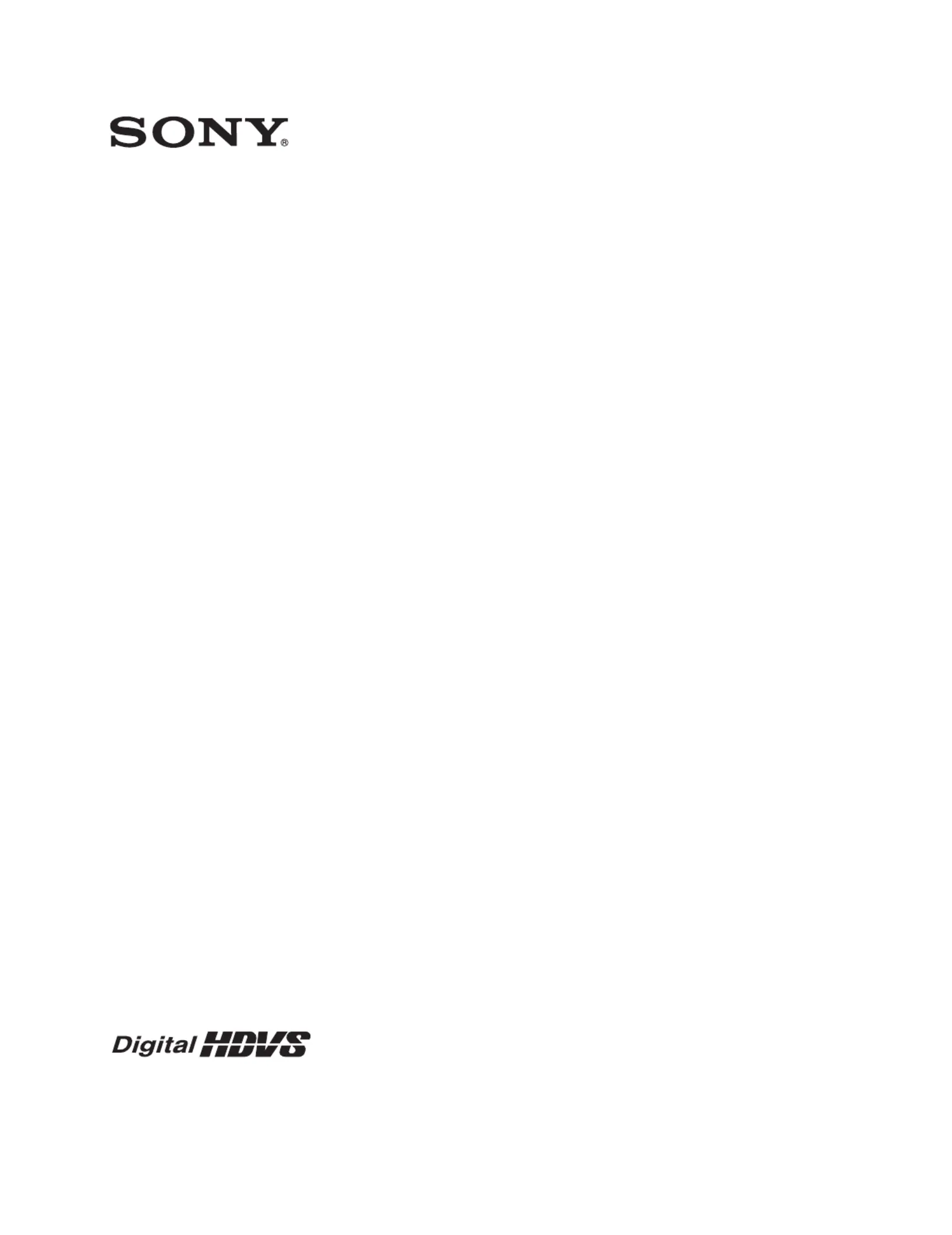

CAMERA EXTENSION ADAPTOR
HDCE-200
OPERATION MANUAL [English]
1st Edition
Table of Contents
2
Table of Contents
Overview ..........................................................................................3
Locations and Functions of Parts .................................................3
System Configuration Example .....................................................5
Usage Precautions ..........................................................................7
Installation environment....................................................................... 7
To prevent electromagnetic interference from portable communications
devices......................................................................................... 7
Precautions when changing the photograph format of the camera....... 7
Specifications..................................................................................8
Notice Concerning Software Governed
by the GNU GPL/LGPL.............................................................9
3
Overview / Locations and Functions of Parts
Overview
The Camera Extension Adaptor HDCE-200 is designed for
connecting a camera to a camera control unit (CCU) and
converting the link format between them from BNC to
optical fiber. Also, the HDCE-200 is used by connecting
the Baseband Processor Unit BPU4000 and supplies
power to the Camera System Adaptor CA4000.
Rack mount capable
The HDCE-200 can be installed in a standard EIA 19-inch
rack (up to three units in 3U space).
For details on rack mounting, contact a Sony Service
representative or Sales representative.
Locations and Functions
of Parts
Front panel
aPower switch
This switch controls power to the entire system including
the HDCE-200, video camera, etc. In the “@” position,
power is on. In the “a” position, power is off.
bPOWER indicators
When power is on, the MAIN indicator and CAM indicator
light up. When the CAM POWER switch on the Master
Setup Unit or the Remote Control Panel is pressed, only
the camera power is turned off and the CAM indicator goes
out.
When connecting the BPU4000, the CAM POWER cannot
be turned off.
cOPTICAL CONDITION indicators
Displays the optical signal receiving condition of the
HDCE-200 from a camera.
• Two green indicators light up (3rd and 4th indicators):
Reception is very good.
• One green indicator lights up (3rd indicator): Reception
is good.
• The yellow indicator lights up (2nd indicator):
Reception is poor.
• The red indicator lights up (1st indicator): Reception is
very poor.
1Power switch
2POWER indicators
3OPTICAL CONDITION indicators
5Status indicators
6MODE switch
4CABLE ALARM indicators
