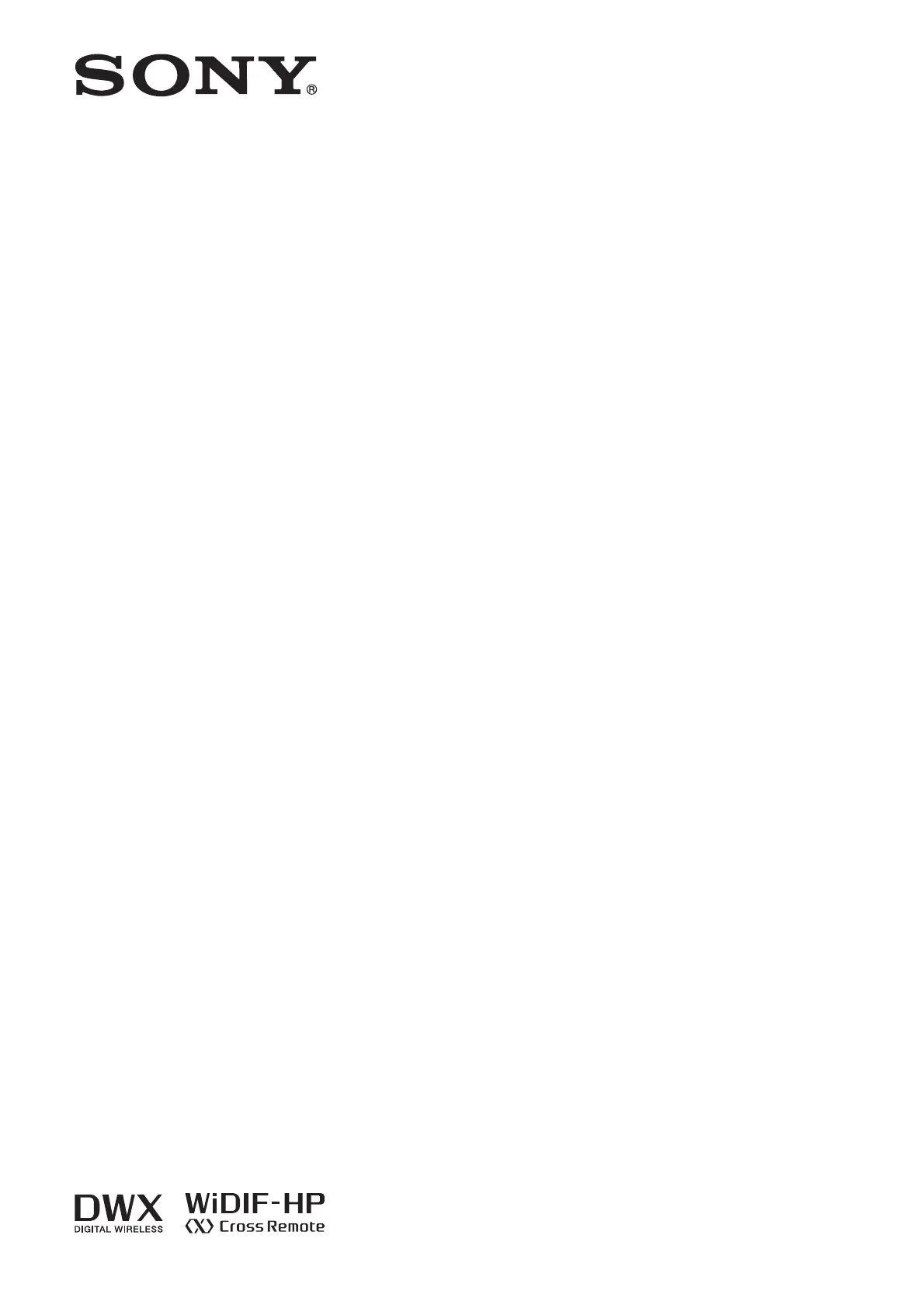

Digital Wireless
Transmitter
Operating Instructions
DWT-B01N
4-585-173-05 (1)
© 2015 Sony Corporation
2
Table of Contents
Features ...................................................................... 3
Parts Identification ................................................... 4
Power Supply ............................................................. 5
Installing the batteries ............................................ 5
Setting the Transmission Channel ........................... 6
Selecting the group/channel ................................... 6
Using the Cross Remote ............................................ 7
Pairing with a receiver ........................................... 7
Using the Encrypted Transmission Function ......... 8
Using secure key mode (SECURE KEY) .............. 8
Using password mode (PASSWORD) .................. 9
Using a USB Keyboard ........................................... 10
Basic Menu Operations .......................................... 10
Setting Menus .......................................................... 11
Naming of transmitter (NAME) .......................... 11
Selecting the frequency band (BAND) ................ 11
Selecting the group/channel (GP/CH) ................. 11
Setting the RF output power (RF POWER) ........ 11
Setting the audio input level (INPUT LEVEL) ... 11
Low-cut filter setting (LCF) ................................ 12
Power save setting (POWER SAVE) .................. 12
Setting the battery type (BATTERY TYPE) ....... 12
Displaying the accumulated use time (TIME) ..... 12
Setting the encrypted transmission function
(ENCRYPTION) ............................................... 12
Setting the audio codec mode (CODEC
MODE) .............................................................. 12
Setting the maximum RF output power (MAX RF
POWER) ............................................................ 13
Generating an internal signal
(INTERNAL SG) ............................................... 13
Locking the POWER switch (POWER
SW LOCK) ........................................................ 13
Cross Remote (RF REMOTE) ............................. 13
Setting the brightness of the display
(BRIGHTNESS) ................................................ 13
Automatic dimming of the display (DIMMER
MODE) .............................................................. 14
Resetting parameters to their factory settings
(FACTORY PRESET) ...................................... 14
Displaying the software version (VERSION) ..... 14
Attaching With the Soft Case ................................. 14
Changing the direction of the belt clip ................ 14
Wrapping the microphone cable around the
soft case ............................................................. 14
Removing the unit from a belt ............................. 15
Attaching the Antenna Tubes ................................. 16
Attaching the antenna tubes ................................. 16
Removing the antenna tubes ................................ 16
Block Diagram ......................................................... 17
Troubleshooting ....................................................... 18
Important Notes on Operation .............................. 19
Notes on using the transmitter ............................. 19
On cleaning .......................................................... 19
Notes on simultaneous multi-channel
operation ............................................................ 19
Note on microphone and transmitter
combinations ...................................................... 19
Specifications ........................................................... 20
Carrier Frequencies and Channel Steps ............... 21
3
Features
The DWT-B01N is a digital wireless transmitter for a UHF
synthesized wireless microphone system to be used for
broadcast or movie production purpose. This transmitter is
suitable for Electronic News Gathering (ENG) and
Electronic Field Production (EFP).
What is DWX?
DWX refers to Sony’s new digital wireless microphone
system. The DWX series reflects Sony’s extensive
expertise in professional microphones and sound design. It
represents a successful blend of Sony know-how, wireless
technology renowned for stability, and cutting-edge digital
audio technology.
In addition to realizing the high sound quality possible
with a digital system, the DWX series supports multi-
channel simultaneous operation, encrypted transmission,
and metadata transmission for monitoring the status of
multiple transmitters. Using a main link and a separate
additional link, remote control of transmitters from the
receiver is also possible. With its many advanced features,
the system has the potential to revolutionize the workflow
of professional applications.
What is WiDIF-HP?
WiDIF-HP (WiDIF: Wireless Digital Interface Format,
HP: High Profile) is a wireless digital audio interface
format developed by Sony.
It enables highly secure transmission with high sound
quality and low system latency, and supports simultaneous
multi-channel operation.
What is Cross Remote?
Cross Remote is a system that allows transmitters to be
monitored and controlled from a receiver and the Wireless
Studio control software installed on a computer connected
to the receiver.
For example, the settings of a transmitter worn under
clothing can be easily changed over the wireless link.
Wide RF carrier frequency range
The DWT-B01N transmitter covers an extremely wide RF
carrier frequency range. Depending on the model, the
transmitter can cover bandwidths between 42-MHz and
72-MHz (e.g., 72-MHz with the 42CE 1)) — much wider
than 24-MHz of the analog wireless microphone system.
This remarkably wide coverage on a single model offers
cost efficiency and operational convenience, because it
allows one transmitter to be operated in many different
areas.
1) Carrier frequencies differ depending on the model.
Compact, lightweight, and rugged design
The DWT-B01N is designed to be extremely compact and
lightweight, essential qualities for use by artists in fast-
moving TV and outdoor productions.
Switchable mic or line input level and
adjustable attenuator
For details, see “Setting the audio input level (INPUT
LEVEL)” on page 11.
Three audio codec modes
Switch between audio codec modes based on your
operational needs.
For details, see “Setting the audio codec mode (CODEC
MODE)” on page 12.
Switchable RF output power
For details, see “Setting the RF output power (RF
POWER)” on page 11 and “Setting the maximum RF
output power (MAX RF POWER)” on page 13.
Power sleep mode
For details, see “Power save setting (POWER SAVE)” on
page 12.
Digital low-cut filter
For details, see “Low-cut filter setting (LCF)” on page 12.
Easy-to-see, full dot-matrix OLED (Organic
Light-Emitting Diode) Display
The quick response of the OLED display enables real-time
operating conditions to be displayed clearly and
accurately.
