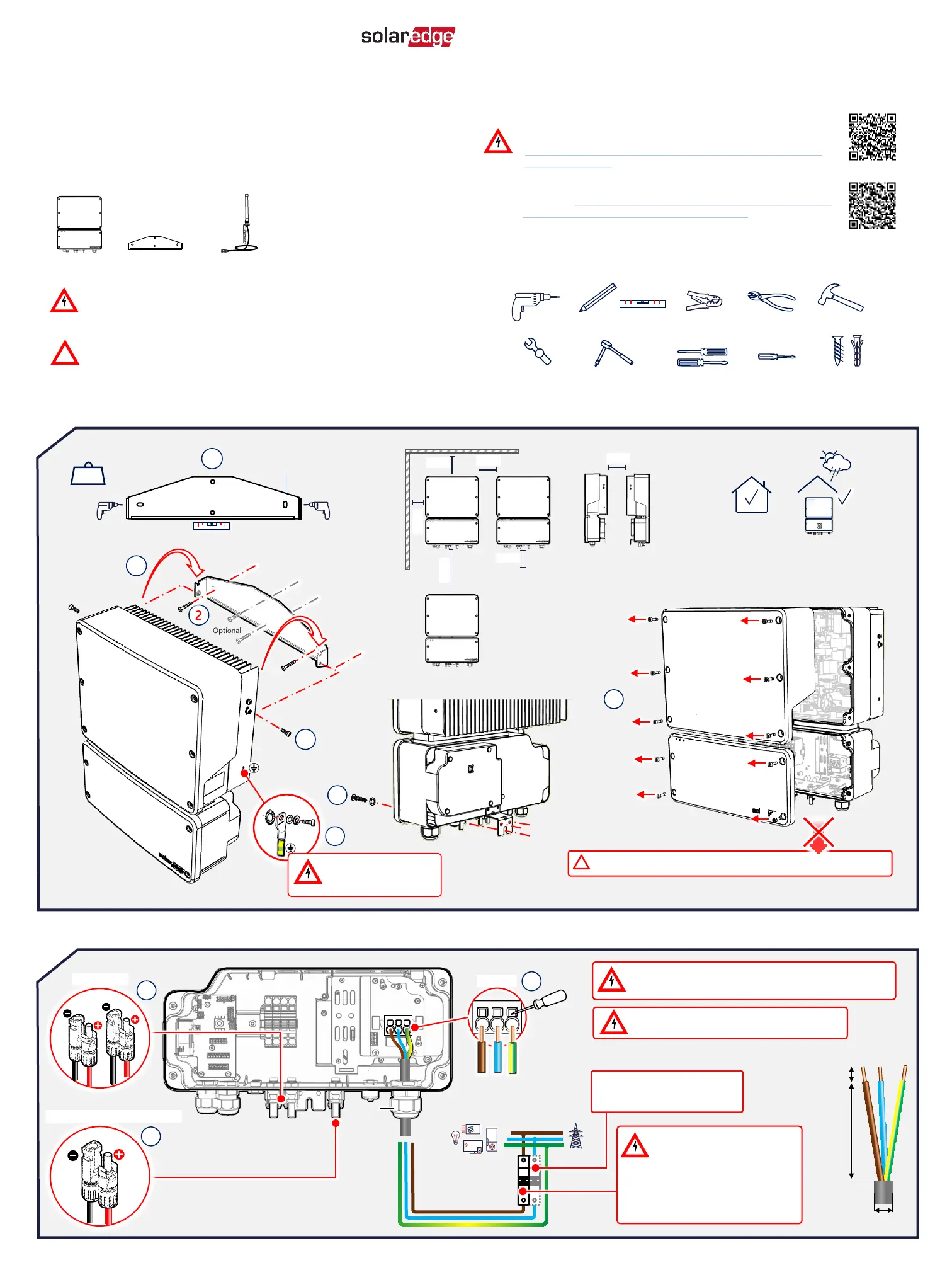

SolarEdge
Home Hub Inverter - Single Phase
Quick Installation Guide
For Europe
A
solaredge.com
SolarEdge Technologies GmbH, Werner- -Eckert Str. 6, 81829 Munich, Germany
Subject to change without notice.
© SolarEdge Technologies, Ltd.
All rights reserved. March 2023.
Mounting
Drill Level
Phillips/Flat-
Blade
screwdriver set
Small Flat-Blade
(2mm)
Screwdriver
HammerPencil Wire Cutter
Mounting screws and
wall plugs - Mmax 10
min 2
Tools and Materials
What’s in the Package
CAUTION
CAUTION
CAUTION
CAUTIONCAUTION!
!
!
! ! Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the product. Do not
proceed beyond a caution sign until the indicated conditions are fully understood and met.
WARNING!
WARNING!
WARNING!
WARNING!WARNING!
This symbol denotes a hazard. It calls attention to a procedure that if not correctly
performed or adhered to could result in injury or loss of life. Do not proceed beyond
a warning note until the indicated conditions are fully understood and met.
Inverter Wall mount bracket SolarEdge Home
Network Antenna
Torque wrench
with 4 mm Allen bit
Open end - 10mm
torque wrench
12.6 KG
Optional
Holes
Ø 9mm
1
CAUTION! DO NOT rest the inverter vertically on the connectors
3
4 N*m
4
40 cm
10 cm
20 cm
20 cm
20 cm
20 cm
MC4 crimper
PV String(s)
WARNING! Connect the grounding wire first
WARNING! HAZARD OF ELECTRIC SHOCK.
DISCONNECT POWER BEFORE INSTALLATION OR SERVICE
6
BWiring
L N GND
AC Grid
SolarEdge Home Battery 400V
2
3
1
7
WARNING! Connect a
ground cable if required
by local regulation.
5
6 N*m
WARNING! To avoid danger, read the HANDLING AND SAFETY
INSTRUCTIONS provided with this product, or refer to:
https://www.solaredge.com/sites/default/files/se_handling_and_saf
ety_instructions.pdf
1-10 mm2
18 mm
60 mm
9-21 mm
1
2
4
3
6
5
1
2
3
4
Before installation, read the datasheet provided with this product,
or refer to: https://knowledge- -center.solaredge.com/sites/kc/files/se
home hub single inverter eu.pdf- - - -phase - -datasheet
WARNING! Do NOT connect
a protective device with a higher
rating than 50A. Make sure to
use a protective device with a
rating of 28A or higher for
maximal backup rating of 6kW
(applicable to all models)
NOTE: Use a protective device
according to regulation
4 N*m
1.5 N*m
Connecting to Backup Interface
LED Indications
•Red: fault
•Green: power production,
•Blinking Green: Grid connection ok
•Blue: communication ok
For more indications refer to:
https://www.solaredge.com/leds
Commissioning the Inverter
SetApp
ON
1
Run and SetApp
follow the instructions
on the screen
4 N*m
I
For remote status, fault indications,
and system performance,
refer to Remote Monitoring at:
https://www.solaredge.com/products/pv-monitoring#/
IMPORTANT! The connection to units and accessories shown here is for reference only. For detailed information, refer to the specific product guide.
WARNING! Before installing or operating SolarEdge Home Battery 400V, read the safety and handling instructions provided with the battery.
F
G
C
4
P(Hold and release within 2 seconds)
P 1 0 5
6
E
Backup Interface
5.5 N*m
Connecting to SolarEdge Home Network
(SolarEdge home network module and antenna are included with this product)
1.1 N*m
Inline Meter
Smart Energy Hot Water
5.5 N*m
SolarEdge Home Battery 400V
Connecting Multiple Inverters
SolarEdge Home
Battery 400V
2
P(Hold and release
within 2 seconds)
P
3
D
Connecting to SolarEdge Home Battery 400V
(Optionally, connect battery communication wirelessly using SolarEdge Home Network)
Power Cables
Ground Cable
G A B
1.5 N*m
SolarEdge Home
Battery 400V
5.5 N*m
WARNING!
Connect a
ground cable
according to local
regulation
requirements. For
connection,
See section A.
Leader Inverter
Ethernet Cable
Router
5.5 N*m
1.1 N*m
Optional
Location
LAN
Wi Fi -
Wi-Fi Router
Optional
Location
Connecting to LAN or Wi-Fi
(In Leader- -Follower configuration, LAN or Wi Fi MUST connect to the Leader inverter)
RS485 Cable (CAT 5e/6)
Leader (first) Follower (last)
Follower
1.5 N*m
Communication
Board
SW2
5.5 N*m
14
3
65
1
2
3
4
2
J
HConnecting to Meter and External RSD Switch
ON
1.5 N*m External RSD Switch
(Not included)
SD Switching
of Multiple
Inverters
G A B 12 12- +
G A B 12 12- +
NOTE: Wi-Fi antenna is optional
and may be purchased separately.
6-10 mm2
, as for the
number of batteries
SW2SW2
1.5 N*m
RSD
G En A B
12V
+ -G A B
RSD
-+RS485
G A B
1.5 N*m
RS485
B A G
Battery
This port is for SolarEdge or 3rd party
meters (Modbus protocol)
Important! Verify that all switches
are down.
RS485-1
RS485-1RS485-2
RS485-2
B A G
RS485
B A G
RS485
B A G
RS485
RS485-1
Meter Connection
